Volume 130 Supplement 1

Special Issue: Echinoderms - from the early past to the near future. A tribute to Hans Hess on his 80th birthday

Ophiura paucilepis, a new species of brittlestar (Echinodermata, Ophiuroidea) from the Pliocene of the southern North Sea Basin

Abstract

The first articulated ophiuroids to be recorded from Neogene deposits in the southern North Sea Basin are described as a new species, Ophiura paucilepis, based on two discs with portions of proximal arms preserved, plus an isolated arm fragment. The specimens were collected from the Oosterhout Formation (Pliocene, lower Zanclean to mid-Piacenzian, ca. 4.9–2.8 Ma) at sandpit ‘De Kuilen’ near Langenboom (province of Noord-Brabant, the Netherlands). A comparison with extant taxa from the North Sea and North Atlantic, such as O. albida, O. ophiura, O. sarsii and O. carnea, shows the fossil species to be characterised by a coarse disc scalation, which may be an ancestral state or a paedomorphic condition, similar to immature stages of extant taxa. The new species is compared to and distinguished from other records of mid-Cretaceous to Cenozoic taxa that have been assigned to the genus Ophiura either routinely, indiscriminately or with a query.

Introduction

Neogene (Miocene–Pliocene) strata in the southern North Sea Basin (central and southern Netherlands, northwest Belgium) are locally rich in echinoderm remains, but ophiuroids constitute only a minor component of such assemblages (see e.g., Engel 1941; Sieverts-Doreck 1953). In the majority of cases, only dissociated ossicles, mostly vertebrae and arm plates, are preserved, making generic and specific identification difficult, if not impossible. Until now, records of more or less complete discs with arms, which attest either to rapid burial and lack of subsequent scavenging and bioturbation or to exceptional circumstances (see e.g., Böhm 1889; Berry 1939; Clark 1959; Wienberg Rasmussen 1972; Kerr and Twitchett 2004; Kroh 2007), were lacking from the study area.

Slightly silty, fine-grained and well-sorted, glauconitic quartz sands assigned to the Oosterhout Formation, which are suction-dredged at sandpit ‘De Kuilen’ near Langenboom (Fig. 1), have now yielded the first articulated ophiuroids to be recorded from the southern North Sea Basin. Two discs with proximal portions of arms preserved, plus an isolated arm fragment, are shown to be conspecific and are described here as a new species of the genus Ophiura Lamarck, 1801, O. paucilepis sp. nov. At sandpit ‘De Kuilen’, Unit B (sensu Wijnker et al. 2008) has produced most macrofossil remains including molluscs, brachiopods, echinoderms, serpulids, bryozoans, plant and vertebrate remains (Wijnker et al. 2008; Klompmaker 2009). It is from this level that the present brittlestar material is inferred to have originated, because other units contain little or no carbonate and the holotype disc was covered in shell fragments when it was collected. On molluscan and dinoflagellate evidence (see Wijnker et al. 2008), an early Zanclean to mid-Piacenzian date (Pliocene; ca. 4.9–2.8 Ma) has been established for this part of the sequence (Fig. 2).

Fig. 1
figure 1

Map of the Langenboom area (province of Noord-Brabant, the Netherlands), showing the locality of sandpit ‘De Kuilen’ (copy of Wijnker et al. 2008, fig. 1, reproduced with permission)

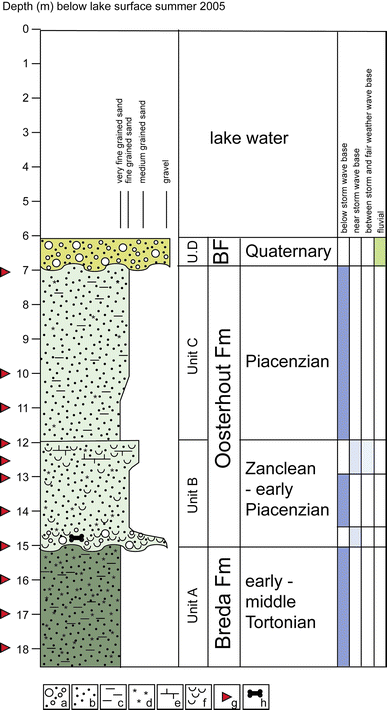

Fig. 2
figure 2

Facies interpretation and litho- and chronostratigraphy of the Langenboom section at sandpit ‘De Kuilen’ (copy of Wijnker et al. 2008, fig. 6, reproduced with permission). a gravel, b sand, c silt, d glauconite, e carbonate cement, f shells, g sample location, h bone. Unit B is here inferred to be the source of Ophiura paucilepis sp. nov. (see text)

The new species is compared with extant taxa from the North Sea and North Atlantic Ocean, as well as with a number of fossil species of mid-Cretaceous (Albian-Cenomanian) to Cenozoic age which have been placed in the genus Ophiura, either more or less routinely, indiscriminately or with a query. However, a revision of these extinct taxa is deferred to another occasion.

Systematic palaeontology

Order Ophiurida Müller & Troschel, 1840

Family Ophiuridae Müller & Troschel, 1840

Genus Ophiura Lamarck, 1801

Type species: Asterias ophiura Linnaeus, 1758, by ICZN ruling (Opinion 1152; see Melville 1980).

Diagnosis: Disc low, flat, covered by small, imbricating plates, primary rosette usually distinct. Radial shields more or less separated. Arms not stout, gradually tapering, usually deep incisions next to arm bases (distal bursal slits). Dorsal arm plates well developed, adjacent plates usually contiguous, several proximal dorsal plates included in the disc, separating radial shields. Genital papillae well developed, arm combs present. Second oral tentacle pore opens into mouth slit, beset with numerous small papillae, which often form a continuous row with the oral papillae. Ventral arm plates much wider than long, usually separated, at least outside disc.

Ophiura paucilepis sp. nov. (Fig. 3a–k)

Types: MAB 4280 (holotype; leg. A. A. Klompmaker) and MAB 4281 (paratype; leg. N. Taverne).

Fig. 3
figure 3

SEM images of Ophiura paucilepis sp. nov., Pliocene, Langenboom; holotype (MAB 4280), dorsal view (a), detail of radial shields and dorsal arm plates (b), lateral view of arm with spines (d), interradial lateral view of disc (e), detail of arm comb and lateral arm plates (f), disc in ventral view (h) and detail of ventral arm plates (i); j, k paratype (MAB 4281) in dorsal and ventral views, respectively; c, g arm fragment (MAB 4282) in dorsal and ventrolateral views, respectively. abGP abradial genital plate, AC arm comb, adGP adradial genital plate, AS adoral shield, ASp arm spine, CPP central primary plate, DAP dorsal arm plate, GS genital scales; k k-plate, LAP lateral arm plate, IR interradial plate, OS oral shield, RPP radial primary plate, RS radial shield, TPo tentacle pore, TS tentacle scale, V vertebra, VAP ventral arm plate. Scale bars in millimetres

Additional material: MAB 4282, an arm fragment, which might well have belonged to either of the holotype or paratype discs, but this cannot be ascertained beyond doubt.

Comparative recent material: Ophiuraalbida Forbes, 1839: SMNH-52141 (one specimen on SEM stub, 4 mm dd; Kattegat, Sweden, Halland, Värö, 57°16.5′N, 12°05′E, depth 19 m, sand bottom, leg. S. Smith) and SMNH-87672 (one specimen on SEM stub, 8 mm dd; same locality); SMNH-115527, one specimen, 8 mm dd, on SEM stub, same locality. Ophiurasarsii Lütken, 1855: SMNH-42832 (one specimen on SEM stub, 7 mm dd; BIOICE station 2585, Iceland, 67°24.79′N, 22°24.43′W, depth 450 m) and SMNH-45845 (one specimen on SEM stub, 6 mm dd; BIOICE station 2673, Iceland, 66°50.22′N, 16°16.26′W, depth 222 m).

Locality and stratigraphy: Sandpit ‘De Kuilen’ near Langenboom, province of Noord-Brabant (the Netherlands); Oosterhout Formation, Unit B (12–15 m below surface), lower Zanclean to mid-Piacenzian, Pliocene.

Etymology: Latin pauci, meaning ‘few’ and lepis, meaning ‘scale’.

Diagnosis: Species of Ophiura with few large disc scales, among which the primary rosette is distinct. The oral shield is almost twice as long as wide and covers about two-thirds of the ventral interradial disc space. Dorsal arm plates fan shaped, three times wider than long. Two (or three) short conical arm spines. The known maximum size of the species (disc diameter) is 8 mm.

Description of MAB 4280 (holotype): Disc diameter of approximately 8 mm and five arms, which are all broken off close to the disc. The dorsal disc is formed by large scales, among which the primary rosette, consisting of a round central primary plate and a circle of five round radial primary plates, is distinct (Fig. 3a). Distal to the primary rosette, two to three interradial plates extend to the disc margin. The radial shields are round, but at their proximal ends they are partially overlapped by interradial plates and a wedge plate (‘k-plate’), which separates adjacent radial shields proximally (Fig. 3b). Distally, the radial shields are separated by the small, wedge- or possibly cordiform, first dorsal arm plate. The dorsal arm plates beyond the first three are about three times as wide as long, with straight lateral and proximal edges, convex distal edge, and wider at their distal end than at their proximal end (Fig. 3c). The first dorsal arm plate is the smallest and has an acute proximal angle, the following two plates increase in size and are similar in shape to the remaining plates (Fig. 3b, c). Lateral arm plates from the fourth segment bear two, probably three, conical spines, which are appressed and shorter than an arm segment (Fig. 3d). At the vertical disc edge, a large round plate is visible, bordered by smaller, round to oval plates to either side, creating the appearance of a rosette (Fig. 3e).

Below the radial shields, a well-developed arm comb is present, consisting of at least eight, probably slightly more, elongated papillae on the edge of the abradial genital plate (Fig. 3c, f). The abradial genital plate extends onto the ventral side, where it is continued by a row of small genital scales along the bursal slit, as is typical for the genus Ophiura (Fig. 4a). The genital scales appear to bear genital papillae, which are, however, difficult to distinguish from the scattered tentacle scales (Fig. 3h).

Fig. 4
figure 4

SEM images of extant species of Ophiura from the North Sea and North Atlantic; O. sarsii Lütken, 1855, off Iceland, genital plates and scales as typical of the genus Ophiura (a); O. albida Forbes, 1839, Kattegat, 4 mm dd, with coarse disc scalation (b), at 8 mm dd, dorsal view (c), dorsal arm plates (d), lateral arm plates with spines (e), ventral view, slightly overbleached (f); O. sarsii, dorsal disc, 6 mm dd (g), ventral disc, 7 mm dd (h). Specimens have all been bleached with household NaOCl to remove the integument, dd disc diameter, other abbreviations as in Fig. 3. Scale bars in millimetres

The numerous oral papillae are scattered across all jaws and their original number and position is unclear. The second tentacle pore is superficial. The adoral shields are narrow and curved, bordering the proximal edges of the oral shield, which is almost twice as long as wide, with acute proximal angle and convex distal edge. The madreporite is not distinguishable among the oral shields. Few scales of different sizes and shape form the ventral disc distal of the oral shield (Fig. 3g, h).

The ventral arm plates have an acute proximal angle and a convex distal edge, which is twice as wide as the plate is long (Fig. 3h, i). Adjacent plates are separated by the lateral plates, which meet on the mid-line of the arm. The large tentacle pores bear numerous small tentacle scales, which are scattered and their exact number and position cannot be determined.

Paratype MAB 4281 differences: The paratype is of approximately the same size as the holotype, with about 8 mm dd, and largely agrees with the holotype. However, part of the disc is missing. The dorsal disc plates are in disarray, but the primary rosette is distinguishable, as are the radial shields, k-plate and interradial plates (Fig. 3j). In contrast to the holotype, some smaller plates are present between the radial shields and the primaries. The rosette at the disc margin is not visible and the plates look broken and compressed. No arm spines are preserved in this specimen, but articulation ridges are visible, suggesting that three arm spines were present. Fewer oral papillae and tentacle scales are preserved in the paratype (Fig. 3k).

Discussion

The genus Ophiura is differentiated from Amphiophiura Matsumoto, 1915 by its low, flat disc, the small ventral arm plates and the position of the second tentacle pore closer to the mouth slit (see also Matsumoto 1917). However, the latter, which is closely related, currently includes species that probably would fit better in Ophiura (see Martynov and Litvinova 2008), which obscures the generic boundaries. Amphiophiura is in need of revision, as are the related genera Stegophiura Matsumoto, 1915 and Ophiomastus Lyman, 1878. The matter is complicated by the fact that the whole family of the Ophiuridae appears to have been affected by heterochronic development, leading to various states of reduced skeleton (Stöhr and Martynov, in preparation).

Without doubt, the new species described here belongs to the genus Ophiura, on account of the position of the second tentacle pore close to the mouth slit, the well-developed arm comb and deep incisions at the arm bases, the presence of tentacle pores along the entire arm, the wide dorsal arm plates, three of which are part of the dorsal disc, and the wide, separated ventral arm plates (compare Fell 1960; Paterson 1985). Judging from the appearance of its type species, A. bullata (Wyville Thomson 1878), the genus Amphiophiura has a stocky appearance with stout arms which are not that far inserted into the disc as in Ophiura. Its arm bases lack the deep incisions, while dorsal, ventral and lateral arm plates are tumid, the ventral ones being quadrangular to axe shaped and contiguous and the second tentacle pore is positioned further from the mouth slit than in Ophiura. The genus Amphiophiura includes species with large oral shields and a small ventral disc, but these characters likely are the effect of heterochronic development, rather than homologies. Therefore, we dismiss a close relationship of the new species with Amphiophiura.

Recent studies have shown that the number of skeletal elements, such as disc scales, increases during ontogeny, but the final number of scales varies between species and higher taxa (see e.g., Sumida et al. 1998; Stöhr 2005 and references therein). The dorsal scalation pattern in O. paucilepis sp. nov. resembles conditions seen in many extant species during ontogeny, e.g., in Ophiura albida Forbes, 1839 at 4 mm dd (Fig. 4b). The low number of disc scales and their size might thus suggest that the type specimens of O. paucilepis sp. nov. represent juvenile individuals. However, the oral elements are similar in shape and number to those of larger specimens, e.g., O. albida at 8 mm dd (Fig. 4c). Thus, the coarse disc scalation sets O. paucilepis sp. nov. apart from most extant species. Coarser scalation is found in O. imprudens (Koehler 1906) and O. carnea Lütken 1858, but both differ in the shape of the dorsal and ventral arm plates and barely reach 8 mm dd (see Paterson 1985).

Ophiura paucilepis sp. nov. shows greatest affinities with O. sarsii Lütken 1855, O. albida and O. ophiura (Linnaeus 1758), all of which have more or less similar shapes of dorsal and ventral arm plates, arm spines and oral shields (Fig. 4) (compare Ishida 2004; Stöhr 2005). However, they all have smaller and more numerous disc scales at a similar size, longer and more slender arm spines, and reach a larger maximum size than is currently known for O. paucilepis sp. nov. However, they may be descendants from the same lineage.

Absence of certain skeletal elements in adult Ophiuroidea has been interpreted as a paedomorphic state (Vadon 1991). Assuming that coarse scalation is a juvenile character state, O. paucilepis sp. nov. may have retained an early ontogenetic stage into adulthood. It is, however, also plausible that a limited number of scales or other elements represent an ancestral state of shorter development, since externally only the disc shows any signs of possible paedomorphosis. In that case, modern forms would have a prolonged development known as peramorphosis. Almost nothing is known about the adaptational significance of the presence or absence of ophiuroid skeletal elements, their shape and number. In addition, the phylogenetic interrelationships of the species assigned to the genus Ophiura, as well as among genera within the family Ophiuridae, are still poorly understood (compare also Smith et al. 1995). It is therefore difficult to draw any conclusions from the appearance of O. paucilepis sp. nov., which may be a predecessor of Recent species, or an extinct sister taxon to modern forms.

Comparisons to other fossil taxa

Added below are some preliminary notes on mid-Cretaceous to Cenozoic ophiuroids that have been assigned to the genus Ophiura, either routinely, indiscriminately or with a query, listed according to stratigraphic age. Full revisions of these taxa are deferred to another occasion. Currently, no comparative basis exists that would allow the identification of dissociated ophiuroid remains to the species level. Possible exceptions may be certain types of vertebrae (i.e., the ‘keeled’ type) found exclusively in the families Ophiothrichidae Ljungman, 1867 and Ophionereididae Ljungman, 1867, as well as the genus Ophiopholis Müller & Troschel, 1842 (but not in the confamilial Ophiactis Lütken, 1856), as demonstrated by LeClair (1996) or the peculiar branching vertebrae that are found only in members of the families Gorgonocephalidae Ljungman, 1867 and Euryalidae Gray, 1840, or the ventrally closed vertebrae of the latter family. Those ossicles are, however, only useful at the family level. Martynov (2010) has recently suggested that ophiuroid families might be identifiable by arm spine articulation type, but more data are needed to validate this hypothesis. The majority of extant ophiuroid species cannot be identified solely on either the ventral or dorsal side, so that in the majority of cases, also in fossils, both sides need to be present. Often the ventral side is more informative, though, because the oral skeleton is critical for the classification of modern brittle stars.

At a disc diameter of 5–6 mm, Ophiura straini Cornell, LeMone & Norland, 1991 (p. 1010, figs. 2.1–2.4; holotype is SWBI 90-01), from the Smeltertown Formation (Albian) of New Mexico (USA) and referred by the authors to Ophiura with a query (aff.), has more numerous disc scales than O. paucilepis sp. nov. and the arm structure is different as well, with triangular dorsal arm plates. The overall habit of this species certainly is ophiurid, but details of the ventral disc surface and arm structure are needed to substantiate such an assignment. This same holds true for other mid-Cretaceous taxa from North America, such as Ophioglypha texana W.B. Clark, 1893 (p. 30, pl. 4, fig. 1a–c) from the Weno Member (upper Albian) of Texas (see also Berry 1941, p. 61, pl. 9, fig. 11; pl. 10, figs. 9, 11) and Ophioglypha graysonensis Alexander, 1931 (p. 152, pl. 20, figs. 19, 20) from the Grayson Member (lower Cenomanian) of Texas (see also Berry, 1941, p. 62, pl. 9, figs. 1, 10; pl. 10, figs. 1, 6–7, 10; pl. 11, figs. 8, 10, as Ophiura).

Later, Clark (1959) referred specimens from the Austin Chalk (Campanian) of Texas to O. graysonensis, but this assignment appears doubtful and a revision of this material is called for.

Arm fragments and dissociated arm ossicles from the Santonian to Maastrichtian of northwest Europe from the basis for the record of Ophiura serrata Roemer, 1840 by Wienberg Rasmussen (1950, p. 111, pl. 16, figs. 1–8), which is now assigned to the ophiodermatid genus Ophiotitanos Spencer, 1907 (see Jagt 2000). A new species from the lower Maastrichtian of southeast England, assigned with a query to Ophiura is Wienberg Rasmussen’s (1950, p. 114, pl. 17, figs. 1–5) O?. hagenowi, which Kutscher & Jagt (in Jagt, 2000, p. 69, pl. 24, figs. 1–6; pl. 33, fig. 1) provisionally transferred to the ophiurid genus Stegophiura Matsumoto 1915. A third species, Ophiura? substriata Wienberg Rasmussen, 1950 (p. 116, pl. 18, figs. 1–9), from the Santonian to Maastrichtian of northwest Europe appears to be an ophiodermatid, which Jagt (2000, p. 28) listed as Ophioderma? substriatum.

On the basis of dissociated ossicles from the Kemp Clay (Upper Cretaceous, Maastrichtian) of Texas, Berry (1941, p. 64, text-fig. 1; pl. 9, figs. 2–9, 12–14; pl. 10, figs. 2–5, 8; pl. 11, figs. 1, 3–4, 7, 11–15) erected Ophiura travisana. His reconstruction suggests this form to differ clearly from O. paucilepis sp. nov. on the basis of adoral and oral shields.

Again with only dissociated ossicles at hand, Berry (1938, p. 66, pl. 14, figs. 1–10, 13–25) introduced Ophiura kunradeca. However, as noted by Jagt (1991, 2000) this ‘taxon’ comprises ossicle types of more than one species. In particular, the lateral arm plates and radial shields have been shown to belong to Felderophiura vanderhami Jagt, 1991, of which numerous discs with arms preserved are available for study. Felderophiura, originally considered to be an ophiurid, is an ophiolepidid.

Ophiura achatae Wienberg Rasmussen 1972 (p. 61, pl. 6, fig. 3; holotype is MGUH 12799), from the Sonja Sandstone Member (Agatdal Formation, upper Danian) of Nûgssuaq, West Greenland, is based on a single arm fragment. Compared to O. paucilepis sp. nov. this has longer arm spines (three in number), which are also in a different position, and contiguous ventral arm plates.

Ophiura bognoriensis Wienberg Rasmussen, 1972 (p. 66, pl. 8, figs. 1–10; pl. 14, fig. 1; holotype is NHM E 13761), from the lower Eocene London Clay of Bognor Regis, Sussex (UK), has more numerous disc scales (at 12 mm dd), larger-sized radial shields and the arm combs have more papillae. Moreover, ventral arm plates appear to have been smaller than in O. paucilepis sp. nov., even in proximal arm portions.

Ophiura furiae Wienberg Rasmussen, 1972 (p. 62, pl. 6, figs. 4–5; pl. 13, fig. 1; holotype is MGUH 12800), from the lower Eocene Mo Clay Formation of Fur, Denmark, is easily distinguished from O. paucilepis sp. nov. on details of ventral and dorsal arm plating, adoral and oral shields and dorsal disc scalation.

In Ophiura wetherelli Forbes, 1852 (p. 32, pl. 4, fig. 7; see also Wienberg Rasmussen, 1972, p. 64, pl. 7, figs. 1–5; pl. 13, figs. 2–3, with additional synonymy; lectotype is no. 99786, Institute of Geological Sciences, London), from the lower Eocene London Clay of London, disc scales (between 3.5 and 9 mm dd) are much more numerous, ventral arm plates do not abut, dorsal arm plates are narrower and triangular in distal direction, thus precluding confusion with O. paucilepis sp. nov.

Ophiura bartonensis Wienberg Rasmussen, 1972 (p. 68, pl. 9, figs. 1–9; pl. 14, figs. 2–4; holotype is NHM E 52158), from the upper Eocene at Barton, Hamsphire (UK), has triangular dorsal arm plates, non-contiguous ventral arm plates, an arm comb with more papillae, a large marginal disc plate and more numerous and smaller disc scales arranged in clear radial and interradial series, unlike O. paucilepis sp. nov.

Ophiura carpelloides Wienberg Rasmussen, 1972 (p. 71, pl. 10, figs. 1–9; holotype is NHM E 53658), from the upper Eocene of Barton, Hampshire, is based on dissociated ossicles only, and the structure of the oral shield and lateral arm plate suffice to distinguish that taxon easily from O. paucilepis sp. nov.

Ophiura costata Wienberg Rasmussen, 1972 (p. 70, pl. 6, figs. 8–9; holotype is NHM E 53637), from the upper Eocene of Barton, Hampshire, is based on dissociated lateral arm plates only. However, their structure suggests them to be asteroid oral ossicles rather than ophiuroid. In addition, the species name is preoccupied by Ophioglypha (=Ophiura) costata Lyman 1878.

Ophiura davisi Wienberg Rasmussen, 1972 (p. 75, pl. 10, figs. 10–15; holotype is NHM E 53668), from the upper Eocene at Barton, Hampshire, is based on dissociated lateral arm plates, which are easily differentiated from those of O. paucilepis sp. nov. by their denticulate external and internal articular surfaces.

Arm spine number (4) and length, shape of dorsal and ventral arm plates and the peculiar voids between the radial shields and arm combs serve to distinguish O. hendleri Blake & Aronson, 1998 (p. 348, figs. 5.1–5.8, 6.1–6.4, 7.1–7.4, 7.6), from the upper Eocene of Seymour Island, Antarctica.

Ophiura? sp. of Kutscher (1985, p. 8, pl. 3, fig. 1), from the middle Oligocene at Magdeburg, Germany, is based on a single lateral arm plate which appears to be much thinner than those of O. paucilepis sp. nov. and finely striate.

Ophiura?sternbergica Kutscher, 1980 (p. 226, pl. 2, figs. 4–7; pl. 3, figs. 4–5; pl. 4, figs. 1–7; holotype is SGWG 64), from the upper Oligocene ‘Sternberger Gestein’ of northeast Germany, is based mainly on dissociated ossicles, although an arm fragment is also known. Arm spines are three in number, but their position differs from that of spines in O. paucilepis sp. nov., and proximal lateral arm plates appear narrower while oral shields are medially constricted.

Ophiura?parviformis Küpper, 1954 (p. 161, pl. 15, figs. 4–14), from the ?lower ‘Badenian’ (=Langhian, mid-Miocene) of Austria, is an indeterminate species, based on isolated lateral arm plates only (see also Kroh, 2007, Table 4). It is certainly not an ophiurid, but compares much more favourably with some Late Cretaceous species assigned either to amphiurids or ophiothrichids (see e.g., Kutscher and Jagt, in Jagt 2000, pl. 29).

Ophiura?vindobonensis Küpper, 1954 (p. 162, pl. 14, figs. 9–17), from the ‘Badenian’ (=Langhian; see also Kroh, 2007, Fig. 4, Table 4) is either an ophiolepidid, close to some Late Cretaceous forms such as Ophiolepis? linea Kutscher & Jagt, in Jagt, 2000 (p. 86, pl. 26, figs. 3–6) or an ophiodermatid comparable to Ophiotitanosserrata, as based on spine base structure and peg-like articulation bosses.

Ophiura marylandica Berry, 1934 (see Berry, 1939, p. 87, text-fig. 1; pl. 1, figs. 1–3), from the upper Miocene of Maryland, has differently shaped oral and adoral shields and ventral arm plates and arm combs have more numerous papillae than in O. paucilepis sp. nov., at comparable diameters.

Abbreviations

dd:

Disc diameter

MAB:

Oertijdmuseum De Groene Poort, Boxtel, the Netherlands

MGUH:

Statens Naturhistorisk Museum, København, Denmark

NHM:

The Natural History Museum, Department of Palaeontology, London, United Kingdom

NHMW:

Naturhistorisches Museum Wien, Austria

SGWG:

Ernst-Moritz-Arndt Universität, Sektion Geologische Wissenschaften, Greifswald, Germany

SMNH:

Swedish Museum of Natural History, Stockholm, Sweden

SWBI:

Southwest Biostratigraphic Research Institute, Department of Geological Sciences, University of Texas, El Paso, Texas

References

  • Alexander, C. J. (1931). A new Lower Cretaceous ophiuroid. Journal of Paleontology, 5, 152–153.

    Google Scholar

  • Berry, C. T. (1934). Miocene and Recent ophiuran skeletons. Johns Hopkins University Studies in Geology, 11, 9–136.

    Google Scholar

  • Berry, C. T. (1938). Ophiurans from the Upper Senonian of South Limburg, Holland. Journal of Paleontology, 12, 61–71.

    Google Scholar

  • Berry, C. T. (1939). More complete remains of Ophiura marylandica. Proceedings of the American Philosophical Society, 80, 87–94.

    Google Scholar

  • Berry, C. T. (1941). Cretaceous ophiurans from Texas. Journal of Paleontology, 15, 61–67.

    Google Scholar

  • Blake, D. B., & Aronson, R. B. (1998). Eocene stelleroids (Echinodermata) at Seymour Island, Antarctic Peninsula. Journal of Paleontology, 72, 339–353.

    Google Scholar

  • Böhm, G. (1889). Ein Beitrag zur Kenntniss fossiler Ophiuren. Berichte der Naturforschenden Gesellschaft zu Freiburg i. Br., 4, 232–287. [1–56].

    Google Scholar

  • Clark, W. B. (1893). Mesozoic Echinodermata of the United States. United States Geological Survey Bulletin, 97, 1–30.

    Google Scholar

  • Clark, D. L. (1959). Texas Cretaceous ophiuroids. Journal of Paleontology, 33, 1126–1127.

    Google Scholar

  • Cornell, W. C., LeMone, D. V., & Norland, W. D. (1991). Albian ophiuroids from Cerro de Cristo Rey, Dona Ana County, New Mexico. Journal of Paleontology, 65, 1009–1013.

    Google Scholar

  • Engel, H. (1941). Tertiaire en Quartaire echinodermen uit boringen in Nederland. Geologie en Mijnbouw, 3, 5–17.

    Google Scholar

  • Fell, H. B. (1960). Synoptic keys to the genera of Ophiuroidea. Zoological Publications from Victoria University of Wellington, 26, 1–44.

    Google Scholar

  • Forbes, E. (1839). On the Asteriadae of the Irish Sea. Memoirs of the Wernerian Natural History Society, 8, 114–129.

    Google Scholar

  • Forbes, E. (1852). Monograph of the Echinodermata of the British Tertiaries. Monographs of the Palaeontographical Society of London, Vol. 6, no. 19, vii + 36 pp.

  • Gray, J. E. (1840). A synopsis of the genera and species of the class Hypostoma (Asterias Linn.). Annals and Magazine of Natural History, 6(1), 175–184. 275–290.

    Google Scholar

  • Ishida, Y. (2004). [Ophiuroids]. The Association for the Geological Collaboration in Japan. Monograph, Vol. 51, ii + 80 pp. (in Japanese).

  • Jagt, J. W. M. (1991). A new ophiuroid from the Maastrichtian type area (Late Cretaceous, SE Netherlands, NE Belgium). Bulletin de l’Institut royal des Sciences naturelles de Belgique, Sciences de la Terre, 61, 197–209.

    Google Scholar

  • Jagt, J. W. M. (2000). Late Cretaceous-Early Palaeogene echinoderms and the K/T boundary in the southeast Netherlands and northeast Belgium—Part 3: Ophiuroids, with a chapter on: Early Maastrichtian ophiuroids from Rügen (northeast Germany) and Møn (Denmark) by Manfred Kutscher and John W.M. Jagt Scripta Geologica, 121, 1–179.

    Google Scholar

  • Kerr, T. J. V., & Twitchett, R. J. (2004). Experimental decay and disarticulation of Ophiura texturata: implications for the fossil record of ophiuroids. In: Heinzeller, T. & Nebelsick, J.H. (Eds.), Echinoderms (439–446). München: A.A. Balkema Publishers, Leiden.

  • Klompmaker, A. A. (2009). Taphonomic bias on drill-hole predation intensities and paleoecology of Pliocene molluscs from Langenboom (Mill), the Netherlands. Palaios, 24, 772–779.

    Article  Google Scholar

  • Koehler, R. (1906). Description des ophiures nouvelles recueillies par le Travailleur et Talisman pendant les campagnes 1880, 1881, 1882 et 1883. Mémoires de la Société zoologique de France, 19, 5–34.

    Google Scholar

  • Kroh, A. (2007). Climate changes in the Early to Middle Miocene of the Central Paratethys and the origin of its echinoderm fauna. Palaeogeography, Palaeoclimatology, Palaeoecology, 253, 185–223.

    Article  Google Scholar

  • Küpper, K. (1954). Ophiuroidea [sic] aus dem Torton des Wiener Beckens. Paläontologische Zeitschrift, 28, 159–166.

    Google Scholar

  • Kutscher, M. (1980). Die Echinodermen des Oberoligozäns von Sternberg. Zeitschrift der geologischen Wissenschaften (Berlin), 8, 221–239.

    Google Scholar

  • Kutscher, M. (1985). Die Echinodermen des Magdeburger Grünsandes (Mittel-Oligozän). Abhandlungen und Berichte zur Naturkunde und Vorgeschichte (Magdeburg), 12, 3–14.

    Google Scholar

  • Lamarck, J. B. A. P. M. de. (1801). Système des animaux sans vertèbres, ou tableau général des classes, des ordres, et des genres de ces animaux […]. Déterville, Paris, viii + 432 pp.

  • LeClair, E. (1996). Arm joint articulations in the ophiuran brittlestars (Echinodermata: Ophiuroidea): a morphometric analysis of ontogenetic, serial, and interspecific variation. Journal of Zoology, London, 240, 245–275.

    Article  Google Scholar

  • Linnaeus, C. (1758). Systema naturae, per regna tria naturae, secundum classes, ordines, genera, species, cum characteribus, differentiis, synonymis, locis. Editio decima, reformata 1(6). Regnum animale. Laurentii Salvii, Holmiae, iv + 824 pp.

  • Ljungman, A. (1867). Ophiuroidea viventia huc usque cognita enumerat. Öfversigt af Kongliga Vetenskaps-Akademiens Förhandlingar, 23, 303–336.

    Google Scholar

  • Lütken, C. F. (1855). Bidrag til Kundskab om Slangestjernerne. I. Forelöbig oversigt over Grönlandshavest Ophiurer. Videnskabelige Meddelelser fra den Naturhistoriske Forening i Kjøbenhavn, 1854, 95–104.

    Google Scholar

  • Lütken, C. F. (1856). Bidrag til kundskaben om slangestjerner. II. Oversigt over de vestindiske Ophiurer. Videnskabernes Meddelelser fra det Danske Naturhistorisk Forening, 1856, 1–19.

    Google Scholar

  • Lütken, C. F. (1858). Systematisk oversigt over Grønlands echinodermer. Videnskabelige Meddelelser fra den Naturhistoriske Forening i Kjøbenhavn, 1857, 1–109.

    Google Scholar

  • Lyman, T. (1878). Ophiuridae and Astrophytidae of the exploring voyage of H.M.S. “Challenger”, I. Bulletin of the Museum of Comparative Zoology at Harvard, 5, 65–168.

    Google Scholar

  • Martynov, A. (2010). Structure of the arm spine articulation ridges as a basis for taxonomy of Ophiuroidea (a preliminary report). In: Harris, L., Böttger, S., Walker, C., & Lesser, M. (Eds.), Echinoderms: Durham. Proceedings of the 12th International Echinoderm Conference, Durham, New Hampshire, USA, 7–11 August 2006. Boca Raton: CRC Press/Taylor & Francis.

  • Martynov, A., & Litvinova, N. (2008). Deep-water Ophiuroidea of the northern Atlantic with descriptions of three new species and taxonomic remarks on certain genera and species. Marine Biology Research, 4, 76–111.

    Article  Google Scholar

  • Matsumoto, H. (1915). A new classification of the Ophiuroidea: with descriptions of new genera and species. Proceedings of the Academy of Natural Sciences of Philadelphia, 67, 43–92.

    Google Scholar

  • Matsumoto, H. (1917). A monograph of Japanese Ophiuroidea, arranged according to a new classification. Journal of the College of Science, Imperial University Tokyo, 38, 1–408.

    Google Scholar

  • Melville, R. V. (1980). Opinion 1152. Ophiura Lamarck, 1801 and Ophioderma Müller & Troschel, 1840 (Ophiuroidea): ruling on application of these names. Bulletin of Zoological Nomenclature, 37, 78–80.

    Google Scholar

  • Müller, J., & Troschel, F. H. (1840). Über die Gattungen der Asteriden. Wiegmann’s Archiv der Naturgeschichte, 6(318–326), 328–348.

    Google Scholar

  • Müller, J. & Troschel, F.H. (1842). System der Asteriden. F. Vieweg und Sohn, Braunschweig, xx + 1–134.

  • Paterson, G. L. J. (1985). The deep-sea Ophiuroidea of the North Atlantic Ocean. Bulletin of the British Museum of Natural History (Zoology), 49, 1–162.

    Google Scholar

  • Roemer, F. A. (1840–1841). Die Versteinerungen des norddeutschen Kreidegebirges. Hahn’sche Hofbuchhandlung, Hannover, iv + 1-48, 49-145.

  • Sieverts-Doreck, H. (1953). Zur Verbreitung känozoischer Ophiuren. Neues Jahrbuch für Geologie und Paläontologie, Monatshefte, 1953, 275–286.

    Google Scholar

  • Smith, A. B., Paterson, G. L. J., & Lafay, B. (1995). Ophiuroid phylogeny and higher taxonomy: morphological, molecular and palaeontological perspectives. Zoological Journal of the Linnean Society, 114, 213–243.

    Article  Google Scholar

  • Spencer, W. K. (1907). A monograph on the British fossil Echinodermata from the Cretaceous formations, 2. The Asteroidea and Ophiuroidea. Monograph of the Palaeontographical Society London, 1907, 91–132.

    Google Scholar

  • Stöhr, S. (2005). Who’s who among baby brittle stars (Echinodermata: Ophiuroidea): postmetamorphic development of some North Atlantic forms. Zoological Journal of the Linnean Society, 143, 543–576.

    Article  Google Scholar

  • Sumida, P. Y., Tyler, P. A., Gage, J. D., & Nørrevang, A. (1998). Postlarval development in shallow and deep-water ophiuroids (Echinodermata: Ophiuroidea) of the NE Atlantic Ocean. Zoological Journal of the Linnean Society, 124, 267–300.

    Article  Google Scholar

  • Vadon, C. (1991). Echinodermata: Ophiuridae profonds de Nouvelle-Calédonie. Formes paedomorphes. In: Crosnier, A. (Ed.): Résultats des Campagnes MUSORSTOM, Volume 8. Mémoires du Muséum national d’Histoire naturelle Paris A, 151, 335–356.

    Google Scholar

  • Wienberg Rasmussen, H. (1950). Cretaceous Asteroidea and Ophiuroidea with special reference to the species found in Denmark. Danmarks Geologiske Undersøgelse, 77(2), 1–134.

    Google Scholar

  • Wienberg Rasmussen, H. (1972). Lower Tertiary Crinoidea, Asteroidea, and Ophiuroidea from northern Europe and Greenland. Det Kongelige Danske Videnskabernes Selskab, Biologiske Skrifter, 19, 1–83.

    Google Scholar

  • Wijnker, E., Bor, T. J., Wesselingh, F. P., Munsterman, D. K., Brinkhuis, H., Burger, A. W., et al. (2008). Neogene stratigraphy of the Langenboom locality (Noord-Brabant, the Netherlands). Netherlands Journal of Geosciences, 87, 165–180.

    Google Scholar

  • Wyville Thomson, C. (1878). Voyage of the “Challenger”, The Atlantic. A preliminary account of the general results of the exploring voyage of H.M.S. “Challenger” during the year 1873 and the early part of the year 1876 (Vol II, pp. 1–396). London: MacMillan and Co.

Download references

Acknowledgments

For assistance in various ways, we thank R. H. B. Fraaije, M. Kutscher, N. Taverne, N. A. Waljaard and E. Wijnker and for pertinent comments on an earlier typescript we are grateful to D. B. Blake and C. A. Meyer. One of us (JWMJ) gratefully acknowledges the financial support through the Synthesys grant system (SE-TAF-1530), which allowed him to work on extant ophiuroids at the Swedish Museum of Natural History, Stockholm (September 2006).
