Curiouser and curiouser: more on reworked Echinocorys (Echinoidea; Late Cretaceous) on the beaches of north Norfolk, eastern England

Abstract

A new collection of tests of the Chalk (Late Cretaceous) holasteroid echinoid Echinocorys ex gr. scutata Leske, occurring as clasts on the beach between Overstrand and Cromer, north Norfolk, England, show a range of features that have not been discussed hitherto. Unlike the previous report of similar reworked tests from the same locality, specimens are commonly not bored; where bored, Entobia and Caulostrepsis are commonest, and a sinuous boring (?) or burrow (?) immediately beneath the test surface is left in open nomenclature. Encrusting episkeletozoans, both Recent (bryozoans, serpulids, spirorbidae) and Late Cretaceous (bivalve? or brachiopod?, crinoid) are present on some better preserved tests.

Introduction

The study of beach clasts is a slightly unusual one for any palaeontologist, but can yield interesting data, for example, in palaeoecology, neoichnology, and the identification of ancient transport routes by fluvial and glacial action (see, for example, Donovan 2010, 2011a; Donovan and Lewis 2010). Areas such as the beach between Overstrand and Cromer on the north coast of Norfolk, eastern England (Donovan and Lewis 2011, fig. 1), continue to contribute to all these areas of study. The underlying Upper Cretaceous Chalk of this area, dipping east, and glaciotectonic Chalk rafts span the Upper Campanian/Lower Maastrichtian boundary (Moorlock et al. 2002; Burke et al. 2010). Long shore drift is towards the east, so beach clasts of flint and, less commonly, Chalk are most probably locally derived.

Echinoderms are a rare component of this reworked flint and Chalk fauna. Until summer 2011, the only Chalk echinoderms that I had collected consisted solely of the large and conspicuous holasteroid Echinocorys ex gr. scutata Leske, 1778 (Donovan and Lewis 2011), but recent collection has added the remains of three other species of echinoid and a crinoid (Donovan 2012). Donovan and Lewis (2011) discussed the neoichnology of Echinocorys from Overstrand and noted, for a collection of tests preserved in Chalk, an ichnofauna of Caulostrepsis isp. cf. taeniola Clarke, 1908, Gastrochaenolites isp. and, particularly, Entobia isp. This analysis was based on all specimens collected over three summer field seasons (2008–2010) and showed what was interpreted as a progressive infestation of tests that varied from near-pristine through more or less bored specimens with abundant Entobia isp. to remnants retaining just the oral surface adhering to a bored part of the Chalk infill.

It is therefore unexpected to report that collection in summer 2011 was particularly productive, yielding more than twice as many Echinocorys as were available to Donovan and Lewis (2011). It is also unanticipated to report that the pattern of borings is very different, with only three tests infested by Entobia isp. In late July 2011, strong onshore winds blew the sea on this part of the coast high onshore. Whether the cause or merely coincidental, Chalk clasts were common than they had been for the previous two summers, including sponges, belemnites and echinoderms, particularly, E. ex. gr. scutata Leske. It is therefore considered of interest to describe this new collection of Echinocorys, and attempt to interpret the new taphonomic and neoichnologic signals they provide.

Complete details of the locality and horizon may be found in Donovan and Lewis (2011, pp. 44–45, fig. 1). All specimens are deposited in Naturalis Biodiversity Center, Leiden, The Netherlands (RGM).

Description

There are 28 specimens of Echinocorys ex gr. scutata (RGM 780 634–780 661) in the new (2011) collection. The best preserved specimen is tolerably complete, retaining some details of tuberculation on the oral surface only, cracking, breakage anterior of the peristome (Fig. 1d) and encrustation by a serpulid worm tube. Other tests are more or less broken or have parts of the test spalled off (Fig. 1b) or bored (Fig. 1b, c, e, f), or both, some specimens being no more than a small remnant of test on a Chalk clast. Features such as tuberculation are commonly corraded away (sensu Brett and Baird 1986, p. 214). Only the flint steinkern is incomplete (Fig. 1a), preserving the posterior part of the apical surface of the text.

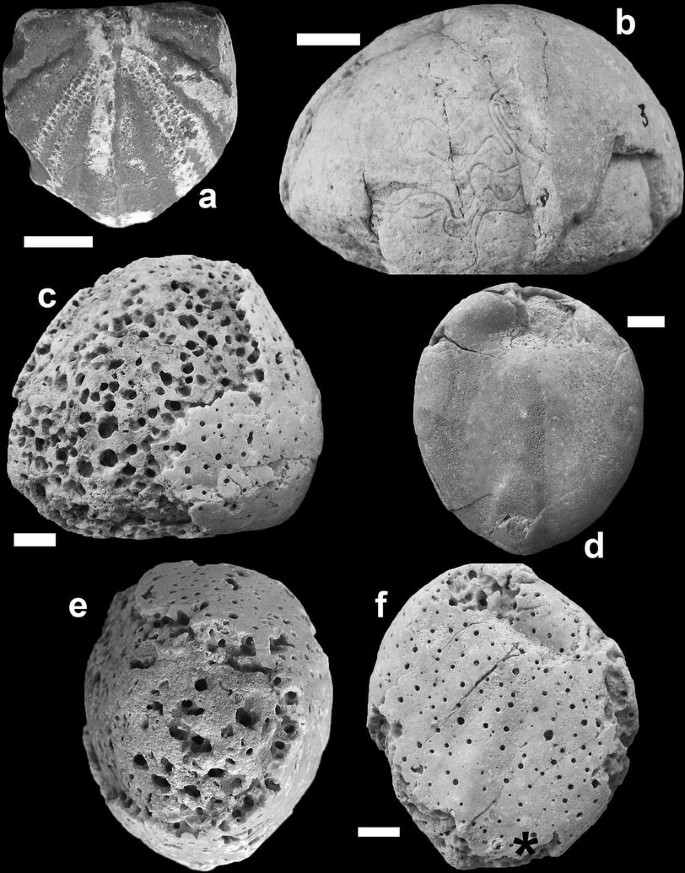

Fig. 1
figure 1

Echinocorys ex gr. scutata Leske, 1778. a RGM 780 634, apical view, fragment of flint steinkern. b RGM 780 635, oblique anterolateral view, thick test cracked open to show sinuous borings (?) or burrows (?) in Chalk immediately below test surface. Anterior left of vertical crack to left. c, e, f RGM 780 636, test strongly bored by Entobia isp. in lateral (c, anterior to right), apical (e) and oral views (f). Entobia perforates a spirorbid worm tube towards the posterior, left of (asterisk) in (f). d RGM 780 637, oral view, most complete specimen showing good tuberculation, but broken anteriorly. Specimens uncoated. Anterior to top of page unless stated otherwise. All scale bars represent 10 mm

Only three specimens show sponge borings (Entobia isp.), two supra-ambitally (mainly apically) and the third apically (Fig. 1e), orally (Fig. 1f), posteriorly and right laterally (Fig. 1c). The latter (RGM 780 636) is also the largest specimen: height 85.0 mm, length 93.2 mm and width 80.7 mm (all measurements are incomplete due to bioerosion and breakage of the test). At least four specimens are bored by Caulostrepsis isp. cf. C. taeniola, each in the Chalk infill rather than the test. None of the specimens are bored by Gastrochaenolites isp. RGM 780 635 has a complex of sinuous borings (?) in the Chalk of the surface of the internal mould, exposed immediately below where the test has spalled away (Fig. 1b). Entry was apparently through aboral pores of the ambulacra. Unlike the collections of Donovan and Lewis (2011), some specimens preserve episkeletozoans (sensu Taylor and Wilson, 2002).

Discussion

“’Curiouser and curiouser!’ cried Alice” (Lewis Carroll, 2008, p. 11).

The most prominent feature of the smaller collection of tests of E. scutata described by Donovan and Lewis (2011) was the near pervasive occurrence of recent borings in specimens preserved in Chalk, most commonly Entobia isp., but also Caulostrepsis cf. taeniola and Gastrochaenolites isp. This suite of borings is typical of other modern lithoclasts on the beach (Donovan and Lewis 2010; Donovan 2011b, 2013). In contrast, in the new collection of 27 Echinocorys tests preserved in Chalk (the only flint steinkern is unlikely to contain Recent borings, Fig. 1a), only three are noticeably bored by Entobia (e.g. Fig. 1c, e, f), four by Caulostrepsis and none by Gastrochaenolites. The collection described by Donovan and Lewis (2011) was noteworthy for its ichnological content; the new, larger collection is notable for the relative dearth of borings. While the pattern is different, it does not necessarily call into question the model for pattern of borings suggested by Donovan and Lewis, with the progressive degradation of tests. Many of the specimens in the present collections were probably bored at some time by clionoid sponges (Entobia) and annelids (Caulostrepsis), that, however, only penetrated rather superficially into the test calcite and Chalk, which was then weakened. Energetic corrasion may subsequently have removed the fragile, bored cortex, leaving the solid core; perhaps, these specimens are merely evidence for recent storms on the coast, causing abrasion and corrosion.

One boring (?) or burrow (?) in this new collection has not been reported hitherto in reworked Echinocorys. Structures in RGM 780 635 (Fig. 1b) are presumed to be Recent borings, but they could equally be ancient burrows. These slender and highly sinuous structures penetrate the surface of the internal mould and were obviously limited by the internal surface of the test. They may be single burrows/borings, but appear to be irregularly U-shaped, finding entry through ambulacral pores on the apical surface, although they could disappear under the in situ test surface. Until their precise morphology can be determined they are left in open nomenclature. The behaviour, although not the morphology, of these structures is reminiscent of Arachnostega gastrochaenae Bertling (1992).

There is also an evidence of post-mortem/post-exhumation encrustation of these specimens (=episkeletozoans, Taylor and Wilson 2002, Table 1); none were reported by Donovan and Lewis (2011). The colour of encrusters is either white (fossils) or cream (Recent). RGM 780 636 preserves, towards the anterior, remnants of Recent bryozoan colonies perforated by Entobia and a serpulid worm that appears to lie between borings (neither apparent in Fig. 1c). This indicates the relative ages of these structures; that is, Entobia postdates the bryozoans and predates the serpulid. Spirorbid worm tubes occur on the oral surface of this specimen, just posterior of the peristome and at the posterior of the oral surface, the latter perforated by Entobia (Fig. 1f, bottom). RGM 780 637 has a moderately broad serpulid tube anteriorly and supra-ambitally. RGM 780 635 has a poorly preserved, Late Cretaceous valve (bivalve? or brachiopod?) cemented posteriorly and supra-ambitally. Most unexpectedly, RGM 780 638 preserves a small, irregularly wart-like structure that appears to be a cemented crinoid attachment. This is similar in morphology to some of the bourgueticrinid attachments illustrated by Jagt et al. (in press, figs. 1E, 2A, B, F, G).

In conclusion, two collections of reworked Echinocorys ex gr. scutata from the same part of the coast of Norfolk, but collected in different years, show different neoichnofaunas, either commonly bored or not, mainly by clionoid sponges (Entobia) and annelids (Caulostrepsis). The paucity of borings in the new collection described herein may be a taphonomic artefact. Encrusting episkeletozoans, both Recent and Late Cretaceous, are present both on some of the bored and also better preserved tests in the new collection.

References

  • Bertling, M. (1992). Arachnostega n. ichnog.—burrowing traces in internal moulds of boring bivalves (Late Jurassic, northern Germany). Paläontologische Zeitschrift, 66, 177–185.

    Google Scholar

  • Brett, C. E., & Baird, G. C. (1986). Comparative taphonomy: a key to palaeoenvironmental interpretation based on fossil preservation. Palaios, 1, 207–227.

    Article  Google Scholar

  • Burke, H., Phillips, E., Lee, J. R., & Wilkinson, I. P. (2010). Imbricate thrust stack model for the formation of glaciotectonic rafts: an example from the Middle Pleistocene of north Norfolk, UK. Boreas, 38, 620–637.

    Article  Google Scholar

  • Carroll, L. (2008). Alice’s adventures in Wonderland (p. xiv + 146). London: Penguin Books. first published 1865.

    Google Scholar

  • Clarke, J. M. (1908). The beginnings of dependent life. NY State Mus Bull, 121, 146–169.

    Google Scholar

  • Donovan, S. K. (2010). A Derbyshire screwstone (Mississippian) from the beach at Overstrand, Norfolk, eastern England. Scripta Geologica Special Issue, 7, 43–52.

    Google Scholar

  • Donovan, S. K. (2011a). Beachcombing and palaeoecology. Geol Today, 27, 25–33.

    Article  Google Scholar

  • Donovan, S. K. (2011b). Aspects of ichnology of Chalk and sandstone clasts from the beach at Overstrand, north Norfolk. Bull Geol Soc Norfolk, 60(for 2010), 37–45.

    Google Scholar

  • Donovan, S. K. (2012). Taphonomy and significance of rare Chalk (Upper Cretaceous) echinoderms preserved as beach erratics, north Norfolk, UK. Proc Yorks Geol Soc, 59 (in press).

  • Donovan, S. K. (2013). The Recent boring Gastrochaenolites lapidicus Kelly and Bromley and its producing organism in north Norfolk, eastern England. Bull Mizunami Fos Mus, 39 (in press).

  • Donovan, S. K., & Lewis, D. N. (2010). Notes on a Chalk pebble from Overstrand: ancient and modern sponge borings meet on a Norfolk beach. Bull Geol Soc Norfolk, 59 (for 2009), 3–9.

    Google Scholar

  • Donovan, S. K. & Lewis, D. N. (2011). Strange taphonomy: Late Cretaceous Echinocorys (Echinoidea) as a hard substrate in a modern shallow marine environment. In C. A. Meyer & L. Costeur (Eds.), Echinodermsfrom the early past to the near future: A tribute to Hans Hess on his 80th birthday (Vol. 130, pp. 43–51). Swiss J Palaeontol.

  • Jagt, J. W. M., Donovan, S. K. & Deckers, M. J. M. (in press). Clustered bourgueticrinid crinoid holdfasts on late Maastrichtian echinoids from northeast Belgium and southeast Netherlands. In: Proceedings, European Echinoderm Conference, Göttingen.

  • Leske, N. G. (1778). Iacobi Theodori Klein naturalis dispositio echinodermatum, edita et descriptionibus novisque inventis et synonymis auctorum et aucta a (pp. xxii + 278). In G.E. Beer (Ed.). Leipzig: Lipsiae.

  • Moorlock, B. S. P., Hamblin, R. J. O., Booth, S. J., Kessler, H., Woods, M. A. & Hobbs, P. R. N. (2002). Geology of the Cromer districta brief explanation of the geological map Sheet 131 Cromer. British Geological Survey, Keyworth.

  • Taylor, P. D., & Wilson, M. A. (2002). A new terminology for marine organisms inhabiting hard substrates. Palaios, 17, 522–525.

    Article  Google Scholar

Download references

Acknowledgments

Naturalis Biodiversity Centre supported my fieldwork in Norfolk in the summer of 2011. The indulgence of my family, children Hannah and Pelham, and Karen, while I searched for reworked Chalk fossils through each and every day, is greatly appreciated. Constructive reviews by two anonymous referees are gratefully acknowledged.
