Neogene Eastern Amazon carbonate platform and the palaeoenvironmental interpretation

An Erratum to this article was published on 02 August 2014

Abstract

The Early Miocene Pirabas Formation represents extensive carbonate and siliciclastic belts deposited in marine coastal environments along the Eastern Amazon coast. This Formation was studied in its palynological, palaeocarcinological and sedimentary facies, in order to develop a model of its depositional processes, faunal and floral assemblages and the sedimentary environments, as observed in the B17 mine (Capanema, Pará). The sedimentary records consist mostly of light gray to greenish gray mudstones with tidal bedding, calciferous sandstones, stratified biocalcirudites and levels with conglomerates deposited in a carbonate/siliciclastic transitional system with lagoon, tidal flat, flood-tide delta and foreshore environments. Eighteen palynomorph species were identified in the tidal flat deposits including 1 alga, 3 fungi, 5 pteridophytes, and 9 angiosperms. Among the latter, mangrove pollen and spores of Zonocostites ramonae, Zonocostites minor, and Deltoidospora adriennis are reported. Nine species of crustacean decapods were recognized in the foreshore deposits, comprising 1 Callianassoidae, 2 Calappidae, and 6 Portunidae, represented by Euphylax, †Necronectes, Portunus, and Scylla, the ecology of which is associated with beaches of marginal lagoons. The main factor of the formation of these carbonate environments is assumed to have been related to the lack of a large-scale drainage system such as the Amazon River basin in the transition Oligocene–Miocene, which may also have influenced carbonate production and resulted in a strong decrease of palaeodischarges from incipient river systems along the Amazon coast.

Introduction

The tidal shelf of the Eastern Amazon was characterized by an extensive and thick accumulation of early Miocene carbonate deposits related to the Pirabas Formation (Maury 1925), the latest carbonate deposit in northern Brazil. The Amazon fan was only incipient during late Oligocene-early Miocene, and the influence of siliciclastic sediments supplied by the river flow to the Atlantic coast was low (Figueiredo et al. 2009), which has been attributed to the initial eastern Andean cordillera uplift (Shephard et al. 2010) during the Oligocene (Horton et al. 2010). Therefore, the substantial Andean uplift in the late Miocene resulted in the establishment of the Amazon drainage to the Atlantic coast (Hoorn et al. 1995). The low sediment input into the ocean during early Miocene favored carbonate formation and expansion of the photic zone, and the development of a high-diversity shallow marine flora and fauna along the Eastern Amazon coast.

The sedimentary deposition of the Pirabas Formation was influenced by water masses with high energy flow of the Atlantic Ocean (Johns et al. 1998, 2002), with long-shore currents driven by oceanic currents, a macrotidal regime (AzeBeardsley et al. 1995) and wave processes. In addition, changes in the sources of siliciclastic sediments, the water temperature (Zachos et al. 2001), and the eustatic and relative sea-level oscillations (Haq et al. 1988; Carter 1998; Kominz et al. 2008) controlled the distribution of carbonate and siliciclastic belts deposited in the marine coastal environments (Rossetti 2006; Rossetti and Santos 2004).

The Heterotrophic carbonate producers, such as mollusks, echinoids, and bryozoans, were abundant and diverse in the Pirabas Formation (Rossetti and Góes 2004; Távora et al. 2010; Aguilera and Páes 2012). Oligotrophic corals are absent, except for isolated records of Agariciidae (Lalor and Távora 2006). The Early Miocene Pirabas Formation is time-equivalent to the period when the Caribbean reef building corals had declined and the diversity became reduced by 50 % (Johnson et al. 2009). Similarly, Bourrouilh-Le Jan and Hottinger (1988) described a drastic early Miocene decline in coral reefs on a number of Pacific atolls. This absence of corals in the tropics with respect to carbonate producers may correspond to the worldwide bloom of coralline red-algal (rhodalgal) facies (Halfar and Mutti 2005).

Many plant remains were also identified along the coastal deposits of the Pirabas Formation (Toledo 1989; Arai 1997; Leite et al. 1997a, b; Fernandes 1984; Távora et al. 2010), suggesting deposition in a tidal flat and lagoon environments (Rossetti 2006; Rossetti and Santos 2004). Leite et al. (1997a, b) proposed that the palaeovegetation of the Pirabas Formation is marked by the predominance of Zonocostites ramonae (Germeraad et al. 1968), a Miocene species that inhabited mangrove-type environments.

There are at least 27 outcrop localities recorded from the Pirabas Formation (Távora et al. 2010). However, the exposures are restricted in thickness to a few meters along the tidal zone. The only exception is the Capanema Mine B17, with around 40 m thick exposed section. Here, we recorded an exceptional horizon with hundreds of crab carapaces, chelae and fragments of portunids (blue crabs), calappids (box crabs) and suitable palynological samples for a palaeoenvironmental study.

Early contributions of White (1887) and Maury (1925), particularly on mollusk, bryozoan and coral research, and Petri (1954, 1957) about foraminifera, Beurlen (1958), Brito (1971, 1972, 1977) and Martins-Neto (2001) about crustaceans, Santos (1958, 1967) about echinoids, Santos and Travassos (1960) and Santos and Salgado (1971) about fishes, Paula-Couto (1967), Toledo (1989), and Toledo and Domning (1989) about sirenians, and Lalor and Távora (2006) about corals, as well as many further references summarized in Rossetti and Góes (2004) and in Távora et al. (2010), provide additional descriptions, records and/or reviews of different fossils groups from the Pirabas Formation.

Considering the regional relevance of this fossiliferous carbonate deposit in relation to the Atlantic Ocean, the objective of this paper is the integrated study of palynology, palaeocarcinology and facies research for the interpretation of the palaeoenvironment.

Geological setting

The Bragantina platform (North Brazil, Pará) corresponds to emerged and submerged areas, which were stable during episodes of distentional tectonics following the break-up of Gondwana and the opening of the Equatorial Atlantic during Jurassic and Lower Cretaceous (Szatmari et al. 1987). Despite this tectonic stability, thick sedimentary units of Miocene age were deposited in this region. Therefore, Rossetti (2001) proposed that the reactivation of normal and strike-slip faults from Precambrian basement, combined with sea-level changes, was responsible for the genesis of these units in the deep tectonic troughs (e.g., Vigia-Castanhal and Marajó basins). The Neotectonic activity of the northeastern Pará is controlled by E–W transcurrent faults connected with NW–SE normal faults, while the structural and sedimentary evolution is related to the reactivation of the basement architecture (Costa et al. 1996). Structural entities such as the Pará platform and Bragança-Viseu basin are shown in Fig. 1a.

Fig. 1
figure 1

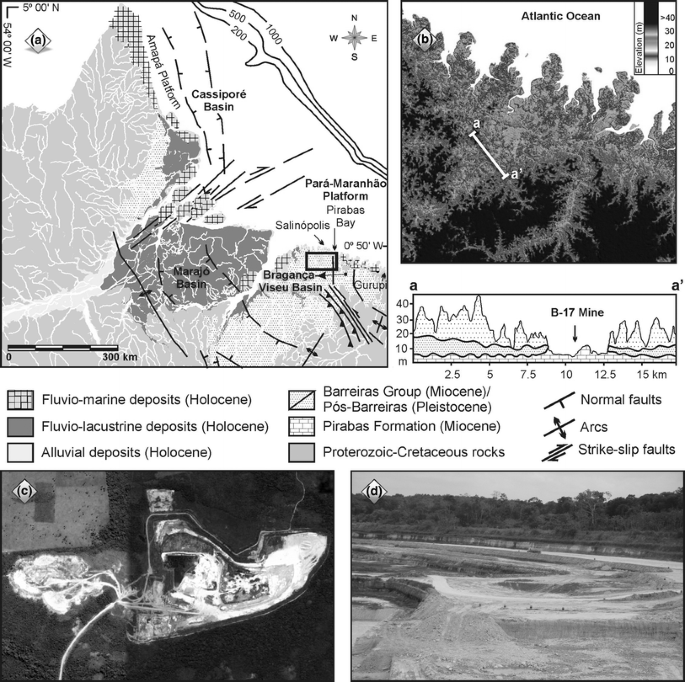

Location map. a Regional geology. b Digital elevation model of the northern coast of the Pará state. c Aerial view (modified from Google earth) and d panoramic view of the B17 mine

The Bragantina platform comprises around 2,000 m of Jurassic/Cretaceous deposits. The sedimentary cover of the Palaeogene and Neogene (~1,500 m thick) is not tectonically influenced by the ancient depositional centers, which indicates higher stability in the adjacent coastal basins (Gorini and Bryan 1976). The Bragança-Viseu basin represents a Graben bordered by normal faults along a NW–SE structural profile. The sediments are composed of litostratigraphic units of Cretaceous age, including the Bragança, Grajaú, Codó, and Itapecuru formations, which are overlain by Neogene carbonate rocks of the early Miocene Pirabas Formation, which in turn overlain by the siliciclastic Miocene Barreiras Group and the Pleistocene Pós-Barreiras Formation (Figs. 1b, 2).

Fig. 2
figure 2

Stratigraphic chart for the Bragantina Platform, Brazil (modified from Rossetti 2001)

The Early Miocene Pirabas Formation (Maury 1925) consists of carbonate rocks of an offshore shelf environment (grainstone and consolidated packstone, stratified wackestone packstone, and laminated mudstone). However, coastal facies (shoreface/foreshore), marginal lagoons (gray to olive mudstone and conglomeratic sandstone), and tidal flats (massive dark mudstone) have also been recorded (Góes et al. 1990; Rossetti 2001; Rossetti and Góes 2004). More details of these heterogeneous lithostratigraphic sequences, and the associated fossil faunas were presented and discussed by Aguilera and Páes (2012).

The assignment of an early Miocene for the Pirabas Formation follows Petri (1957), Fernandes (1984), Ferreira et al. (1978), Fernandes and Távora (1990), and Távora and Fernandes (1999). The heterogeneous variation of the faunal composition recorded in the different outcrops (Aguilera and Páes, 2012) suggests that different members should be recognized, and accurate geochronological research may reveal different ages within the Pirabas sequence.

Materials and methods

Several field trips (August and December, 2011, and April, 2012) to the B17 mine of the CIBRASA S/A near Capanema, Pará (Fig. 1c, d; 01°10′S, 47°13′W) permitted the construction of a biostratigraphic section and facies interpretation, based on direct field measurements and analysis. Facies analysis included descriptions of color, lithology, texture and structures based on methods presented by Walker (1992), and were codified according to Miall (1978).

Four bulk samples were collected from dark gray mudstones rich in organic matter of the section intervals between 9–8 and 5–4 m for palynological analysis (Fig. 3). Around 30 g per samples were dried, weighed, triturated, submitted to hydrochloric and hydrofluoric acid for carbonate and silicate removal, sieving with a 10-μm mesh, and mounting on glass slides with Entelan medium following Uesugui (1979). Pollen and spore morphologies are based on Traverse (2008) and Hesse et al. (2008). The South American palynomorphs references are based on a rich existing literature (e.g., Hammen 1956a, b; Van der Hammen and Wymstra 1964; Germeraad et al. 1968; Dueñas 1980; Lorente 1986; Muller et al. 1987; Hoorn 1993, 1994a, b; Jaramillo and Dilcher 2001; Silva-Caminha et al. 2010). Pollen and spores were described using the terminology of Punt et al. (2007) and the classification system of Iversen and Troels-Smith (1950). The pollen and spore taxonomic affinities and ecological interpretation follow Roubik and Moreno (1991), Colinvaux et al. (1999), and Bush and Weng (2006). Samples were counted to a minimum of about 300 pollen grains. Pollen and spore data are presented in pollen diagrams as percentages of the total pollen amount. Taxa were grouped into mangrove, lowland freshwater forests, lowland pteridophytes, fungi, algae, and foraminifera. The softwares Tilia and Tilia Graph were used for the calculation and plotting of palynological diagrams (Grimm 2004).

Fig. 3
figure 3

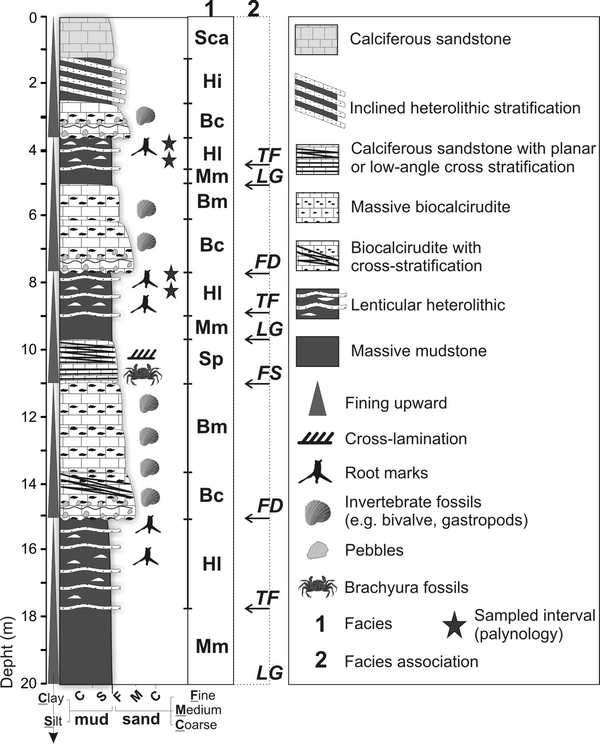

Stratigraphic section of the B17 mine. 1 Facies, Mm massive mudstone, Hl lenticular heterolithic, Bc biocalcirudite with cross-stratification, Bm massive biocalcirudite, Sp sandstone with planar and/or low-angle cross-stratification, Hi inclined heterolithic, Sca calciferous sandstone. 2 Facies association, LG lagoon, TF tidal flat, FD flood-tide delta, FS foreshore

Fossil macro invertebrates, particularly crustacean decapods were collected directly from the surface of the calciferous sandstone interval of 10–9 m during ongoing mining activities. The study of the fossil crustacean decapods was based on comparative analysis, with the collections from the Museu Paraense Emilio Goeldi, the Universidad Experimental Francisco de Miranda (see Aguilera et al. 2011) and collections deposited at the Smithsonian Tropical Research Institute. Collections from the Pirabas Formation at the Museu de Geologia in the Universidade Federal do Pará, under the care of V. Távora, could not be accessed. Complimentary data were retrieved from published literature (e.g., Beurlen 1958; Brito 1971, 1972, 1993; Martins-Neto 2001, 2005, 2007; Vega et al. 2009; Schweitzer et al. 2006). The classification follows De Grave et al. (2009) and Schweitzer et al. (2009).

Results

Facies description from the Capanema Mine B17 section

The sedimentary record consists mostly of light gray to greenish gray mudstones with tidal bedding, calciferous sandstones, stratified biocalcirudites and levels with conglomerates. Invertebrates, pollen and spore records were added to facies characteristics in order to define four facies-associations grouped into fining and thinning upward cycles that represent a carbonate/siliciclastic transitional system, with lagoon (LG), tidal flat (TF), flood-tide delta (FD), and foreshore (FS) environments (Fig. 3; Table 1).

Table 1 Facies description and sedimentary processes identified along the B17 profile

Lagoon (LG)

This association is represented by massive mudstones without apparent structures. It is laterally continuous (facies Mm), about 2-m thick in the basal strata, and decreases to 0.5 m along the sedimentation cycles (Fig. 3; Table 1). The LG association corresponds to a low-energy environment associated with the basin center and a deposition of mud from suspension.

Tidal flat (TF)

The TF association occurs at the top of each sedimentary cycle, and represents mud with connected and discontinuous lenses of rippled sand (facies Hl). Locally, root fragments and root marks can be observed. In the upper strata, the base of this facies is erosive containing biocalcirudute with reworked bivalves and gastropods as well as scattered pebbles throughout the matrix (facies Bc), and is overlain by inclined sandstone and mudstone (facies Hi) and facies Hl. These facies are related to a tidal regime with deposition of mud from suspension and sand from the ebb and flood tide, following the lateral migration of tidal channels with point-bar development (Fig. 3; Table 1). The pollen assemblage of the TF association (Figs. 4, 5, 6), is mainly represented by the mangrove species Zonocostites ramonae (67–76 %), Zonocostites minor (20–24 %) and Deltoidospora adriennis (20–35 %). In general, lowland freshwater forests of Retitricolporites sp. 1 (2–5 %), Retibrevitricolporites (2–5 %), Mauritiidites franciscoi var. franciscoi (0–3 %) showed lower percentages, but it also presented higher concentrations along the upper tidal flat cycle. Other spores of lowland pteridophytes occur with relatively high concentrations, such as Verrucatosporites sp. 01 (0–20 %), Polypodiaceoisporites sp. 02 (3–8 %) and Verrucatosporites usmensis (3–5 %). Foraminifera are very frequent in the lower TF cycle (13–30 %), decreasing in the upper TF cycle (4–10 %), while Ovoidites, a green algae commonly found in freshwater lakes and open-water marsh (Rich et al. 1982), shows an inverse pattern with an increase of concentration values until the upper TF cycle (0–3 to 5–10 %).

Fig. 4
figure 4

Integrated stratigraphic section, pollen and spore record

Fig. 5
figure 5

Palynological specimens. 1, Ovoidites Dyadosporites sp. 01; 2, Hypoxylonites minutus Elsik 1990; 3, Hypoxylonites sp. 01; 4, Verrucatosporites usmensis (Van der Hammen 1956a) Germeraad et al. (1968). Proximal view, 5, Verrucatosporites usmensis (Van der Hammen 1956a) Germeraad et al. (1968). Distal view, 6, Verrucatosporites sp. 01; 7, Deltoidospora adriennis (Potonié and Gelletich 1933) Frederiksen et al. (1983). Distal view, 8, Deltoidospora adriennis (Potonié and Gelletich 1933) Frederiksen et al. (1983). Proximal view, 9, Polypodiaceoisporites sp. 01; 10, Polypodiaceoisporites sp. 02. Distal view, 11, Polypodiaceoisporites sp. 02. Proximal view, 12, Mauritiidites franciscoi var. franciscoi (Van der Hammen 1956a) Van Hoeken-klinkenberg (1964); 13, Corsinipollenites sp. 01; 14, Psilatricolporites sp. 01; 15, Retitricolporites sp. 01; 16, Retibrevitricolporites sp. 01. Proximal view, 17, Retibrevitricolporites sp. 01. Distal view. Scale bar 20 μm

Fig. 6
figure 6

Palynological specimens. 1 Retibrevitricolporites sp. 02. Proximal view, 2 Retibrevitricolporites sp. 02. Distal view, 3 Zonocostites ramonae Germeraad et al. (1968). Type 1, 4 Zonocostites ramonae Germeraad et al. (1968). Type 2, 5 Zonocostites minor Jaramillo and Dilcher (2001). Distal view, 6 Zonocostites minor Jaramillo and Dilcher (2001). Proximal view, 7 Retistephanocolporites sp. 01. Distal view, 8 Retistephanocolporites sp. 01. Proximal view. Scale bar 20 μm

Flood-tide delta (FD)

The FD association is characterized by biocalcirudites with cross-stratification (facies Bc), massive biocalcirudite (facies Bm) and conglomerates with pebbles, fragments of bivalves and gastropods in the basal levels that represent channel lag deposits (Fig. 3; Table 1). This FD association overlies the TF association with an erosive unconformity, likely corresponding to channel dynamics during flood tides and intense rework of sediments from inner shelf/shoreface to lagoon and tidal flat environments under unidirectional and combined flows.

Foreshore (FS)

This association is represented by calciferous sandstone with planar or low-angle cross stratification (facies Sp). Cross-laminations may occur between the main bedding planes. A well-preserved assemblage of crustacean decapods was found in the FS association (Fig. 3; Table 1). This facies is indicative of sediment reworked under oscillatory flows during swash and backwash.

Systematic Palynology

Algae

Turma Cystites Potonie and Kremp (1954)

Ovoidites Potonié ex Krutzsch (1959)

Ovoidites sp. 1

(Fig. 5.1)

Material examined. B17; EF: 25S/4.

Description. Elliptical, psilate ornamentation.

Dimensions. Equatorial length 25.1 μm, equatorial width 16.5 μm.

Stratigraphic range. Cretaceous to Recent (Cookson and Dettmann 1958).

Taxonomic affinity. Ovoidites and Schizosporis represent spores of Zygnemataceae related to the current genus Spirogyra (Van Gell and Van der Hammem 1978).

Comparisons. Ovoidites parvus (Cookson and Dettmann 1959) Nakoman 1966, is bigger (71–105 μm diameter) than the specimens obtained from the Pirabas Formation.

Fungi

Group Amerosporae

Hypoxylonites Elsik 1990

Hypoxylonites minutus Elsik 1990

(Fig. 5.2)

Material examined. B17; EF: 23F/3.

Description. Monocellate, aseptate, elliptical contour; aperturate, aperture does not reach the poles; rounded poles with one narrowly rounded end, psilate ornamentation.

Dimensions. Body size 18 × 12 μm.

Stratigraphic range. Eocene to Pleistocene (Elsik 1990).

Taxonomic affinity. Hypoxylon—Xylariaceae (Elsik 1990).

Comparisons. Hypoxylonites elongatus Salard-Cheboldaeff and Locquin 1980 has a spore wall that appears to have more than one layer. Hypoxylonsporites miocenicus Kumar 1990 has a longitudinal slit extending from one end to the other.

Hypoxylonites sp. 01

(Fig. 5.3)

Material examined. B17; EF: 24S/3.

Description. Monocellate, aseptate, elliptical contour; aperturate, aperture does not reach the poles, aperture 23-μm length; rounded poles with narrowly rounded ends, psilate ornamentation.

Dimensions. Body size 30.5 × 16.8 μm.

Stratigraphic range. Eocene to Pleistocene (Elsik 1990).

Taxonomic affinity. Hypoxylon—Xylariaceae (Elsik 1990).

Comparisons. Hypoxylonites minutus Elsik 1990 has smaller body diameter (13–20 μm). Hypoxylonsporites ater Kumar 1990, as well as Hypoxylonsporites miocenicus Kumar 1990 has a longitudinal slit extending from one end to the other.

Group Didymosporae

Dyadosporites (Van der Hammen 1954) ex Clarke (1965)

Dyadosporites sp. 01

(Fig. 5.4)

Material examined. B17; EF: 22J.

Description. Dicellate, cells with 8-μm length; septate, septum 0.4-μm thick; diporate, pore 5-μm diameter; spore with elliptical contour, and psilate ornamentation.

Dimensions. Body size 17 × 10 μm.

Stratigraphic range. Upper Palaeocene (Sepúlveda 1980), Middle Eocene (Sheffy and Dilcher 1971).

Taxonomic affinity. Ascomycetes (Van der Hammen 1954).

Comparisons. Dyadosporites dubius Kumar 1990 has thicker septum (around 2-μm thick). Psidimobipiospora scabratus Kumar 1990 is scabrate.

Pteridophytes

Monoletes Ibrahim 1933

Verrucatosporites Thompson and Pflug 1953

Verrucatosporites usmensis (Van der Hammen 1956a) Germeraad et al. 1968

(Fig. 5.5, 5.6)

Material examined. B17; EF: 21R/3.

Description. Monolete, bilateral symmetry, elliptical; verrucate ornamentation, verrucae 1.5-μm height and base with 1.8-μm wide, exine 1-μm thick.

Dimensions. Equatorial diameter 52.7 μm, polar diameter 31.1 μm.

Stratigraphic range. Upper Eocene-Lower Oligocene to Recent (Lorente 1986; Germeraad et al. 1968). Lower Eocene to Pliocene (Salard-Cheboldaeff 1990), and Upper Eocene to Upper Miocene (Regali et al. 1974).

Taxonomic affinity. The species resembles Stenochlaena palustris of Blechnaceae (Germeraad et al. 1968). Polypodim—Polypodiaceae (Lorente 1986).

Comparisons. Laevigatosporites ovatus Wilson and Webster 1946, has thinner exine (e.g., Santos et al. 2005).

Verrucatosporites sp. 01

(Fig. 5.7)

Material examined. B17; EF: 34W.

Description. Monolete, bilateral symmetry, elliptical; verrucate ornamentation, verrucae 1.5-μm height and base with 2.1-μm wide, exine 0.8-μm thick.

Dimensions. Equatorial diameter 39.4 μm, polar diameter 27.6 μm.

Taxonomic affinity. Polypodim—Polypodiaceae.

Comparisons. Polypodiisporites specious Sah 1967, and Verrucatosporites specious Harris 1965, has wider verrucae (4–7 μm) and thicker intexine (1.5–2 μm).

Triletes Reinsch emend. Dettmann (1963)

Deltoidospora Miner 1935

Deltoidospora adriennis (Potonié and Gelletich 1933) Frederiksen et al. (1983)

(Fig. 5.8, 5.9)

Material examined. B17; EF: 11R.

Description. Trilete, anisopolar, radially symmetric, triangular-obtuse-convex, curvature absent, margo absent, commissure straight, exine 1.5-μm thick, psilate to micropitted ornamentation.

Dimensions. Equatorial length 50.6 μm, equatorial width 46.5 μm.

Stratigraphic range. Upper Eocene (Santos et al. 2010). Lower Oligocene to Recent (Lorente 1986).

Taxonomic affinity. Acrostichum auerum L. (Hoorn 1993).

Comparisons. Camarozonosporites sp. 1 Jaramillo and Dilcher 2001 has a rugulate distal face and is smaller in size (27–30 μm). Matonisporites mulleri Playford 1982 has curvatura perfectae and psilate ornamentation over the entire spore grain. Deltoidospora juncta Singh (1964), is smaller (32–34 μm diameter).

Polypodiaceoisporites Potonie (1951) ex Potonié (1956)

Polypodiaceoisporites sp. 01

(Fig. 5.10)

Material examined. B17; EF: 17T/2.

Description. Trilete, radially symmetric, triangular-obtuse-convex, curvatura perfectae; radii long, reaching the equator without extending into cingulum; cingulum psilate, 2.9-μm thick; reticulate ornamentation, lumina 1-μm wide and muri 0.9-μm wide.

Dimensions. Equatorial length 41.5 μm, equatorial width 38.5 μm.

Taxonomic affinity. Polypodiaceae.

Comparisons. Polypodiaceoisporites fossulatus Jaramillo and Dilcher (2001) has the equatorial outline, which is triangular-obtuse-straight and fossulate ornamentation. Polypodiaceoisporites pseudopsilatus Lorente (1986), is foveolate on the distal face and psilate on the proximal face.

Polypodiaceoisporites sp. 02

(Fig. 5.11, 5.12)

Material examined. B17; 44Q.

Description. Trilete, radially symmetric, triangular-obtuse, curvatura absent; radii long, reaching the equator without extending into cingulum, labrum 2.5–3 μm wide; cingulum reticulate, interradial thickening, cingulum 3.8-μm thick, radial thinning, cingulum <0.5-μm thick; rugulate ornamentation, muri 1–2 μm wide, lumina 1–2 μm wide.

Dimensions. Equatorial length 52 μm.

Taxonomic affinity. Polypodiaceae.

Comparisons. Polypodiaceoisporites pseudopsilatus Lorente 1986, has a cingulum of 2–3 μm thickness, a thinner labrum (2-μm wide) and a psilate cingulum. Psilatriletes lobatus Hoorn 1994b has a psilate ornamentation and a wider cingulum at the interradial region.

Angiosperms

Monocolpatae Iversen and Troels-Smith (1950)

Mauritiidites Van Hoeken-Klinkenberg (1964)

Mauritiidites franciscoi var. franciscoi (Van der Hammen 1956a) Van Hoeken-Klinkenberg (1964)

(Fig. 5.13)

Material examined. B17; 27N/2.

Description. Monad, anisopolar, elliptical, monocolpate, monosulcate, sulcus simple intectate, exine 1–2 μm thick; echinate ornamentation, spines 2–4 μm height and 1–2 μm wide, conical.

Dimensions. Equatorial length 41.5 μm, equatorial width 34.5 μm.

Stratigraphic range. Palaeocene to Pleistocene (Muller et al. 1987).

Taxonomic affinity. Mauritia—Arecaceae (Hoorn 1993).

Comparisons. Mauritiidites franciscoi var. minutes Van der Hammen and Garcia 1966 is smaller and also has shorter spines (0.5–1 μm height).

Triporatae Iversen and Troels-Smith (1950)

Corsinipollenites Nakoman (1965)

Corsinipollenites sp. 01

(Fig. 5.14)

Material examined. B17; EF: 17G.

Description. Monad, radially symmetric, aniisopolar, elliptical; triporate, ecto and endospore coinciding, pore circular, 4.6-μm diameter; costate, costae 2-μm wide, annulus 4–5 μm wide; scabrate ornamentation, exine 1.5-μm thick and it thickens to 2.5–3 towards the pores.

Dimensions. Equatorial length 44 μm, equatorial width 38 μm.

Taxonomic affinity. Onagraceae—Ludwigia.

Comparisons. Corsinipollenites scabratus Silva-Caminha et al. (2010) has a distinct Y mark in one of the poles. Corsinipollenites psilatus Jaramillo and Dilcher (2001) is psilate. Corsinipollenites oculusnoctis (Thiegart 1940) Nakoman (1965) has also a Y mark and a thinner annulus (2–3 μm).

Tricolporatae Iversen and Troels-Smith (1950)

Psilatricolporites (Van der Hammen 1956a) Van der Hammen and Wymstra (1964)

Psilatricolporites sp. 01

(Fig. 5.15)

Material examined. B17; EF: 35Q/4.

Description. Monad, radially symmetric, isopolar, elliptical, tricolporate, distinct colpi and pores; costate, costae 1-μm thick, exine 1.4-μm thick.

Dimensions. Equatorial length 11.3 μm, equatorial width 10.4 μm.

Taxonomic affinity. Caesalpiniodeae.

Comparisons. Psilatricolporites costatus Dueñas (1980) has a distinct columellae and a larger equatorial length (18–24 μm).

Retitricolporites Van der Hammen and Wymstra (1964).

Retitricolporites sp. 01

(Fig. 5.16)

Material examined. B17; EF: 22Q.

Description. Monad, radially symmetric, isopolar, elliptical, tricolporate, distinct colpi, ectocolpi costate, reticulate ornamentation, lumina 0.4 μm, muri 0.3-μm wide, exine 1-μm thick.

Dimensions. Polar lenght 15.3 μm, polar width 11.5 μm.

Taxonomic affinity. Papilionoideae.

Comparisons. Striatricolporites poloreticulatus Silva-Caminha et al. (2010) has a striate to reticulate ornamentation and a larger size (23–28 μm).

Retibrevitricolporites Legoux (1978)

Retibrevitricolporites sp. 01

(Fig. 5.17, 5.18)

Material examined. B17; EF: 21T/1.

Description. Monad, radially symmetric, isopolar, triangular-obtuse-convex, tricolporate, colpi short, exine thickens towards the colpi and pore margins, costate, costae 2 μm thick; nexine 1,2 μm thick, sexine 1 μm, reticulate ornamentation, lumina 0.8-μm wide, muri 0.7-μm wide.

Dimensions. Equatorial length 27.2 μm, equatorial width 25 μm.

Taxonomic affinity. Papilionoideae.

Comparisons. Syncolporites poricostatus Van Hoeken-Klinkenberg (1966) is parasyncolporate and has a smaller equatorial length and width (16 and 12 μm, respectively). Retibrevitricolporites triangulatus Van Hoeken-Klinkenberg (1966) has a larger lumina and muri (1.5-μm wide).

Retibrevitricolporites sp. 02

(Fig. 6.1, 6.2)

Material examined. B17; 28G.

Description. Monad, radially symmetric, isopolar, elliptical, tricolporate, colpi short, distinct colpi and pores; ectocolpi costate, costae 3-μm thick, distinct; nexine 1.3-μm thick, sexine 1.6-μm thick, elliptical pore with 7 × 3 μm; collumelate, collumelae 0.9 μm; reticulate ornamentation, lumina 0.8-μm wide, muri 0.7-μm wide.

Dimensions. Equatorial length 36 μm, equatorial width 31 μm.

Taxonomic affinity. Caesalpinioideae.

Comparisons. Retibrevitricolporites yavarensis (Hoorn 1993) Silva-Caminha et al. (2010) has a smaller equatorial length and width (20 μm), lumina and muri (0.5 μm wide).

Zonocostites Germeraad et al. (1968)

Zonocostites ramonae Germeraad et al. (1968)

(Fig. 6.3, 6.4)

Material examined. B17; EF: 14Y/1.

Description. Monad, radially symmetric, isopolar, elliptical in equatorial view, tricolporate, distinct pores and colpi, zonorate, costate, costae 1,5-μm thick, pore 1,8-μm diameter, reticulate ornamentation, muri 0,8-μm wide, lumina 1-μm wide, exine 1,8-μm thick.

Stratigraphic range. Lower–Upper Eocene to Recent (Germeraad et al. 1968; Muller et al. 1987).

Dimensions. Polar length 28 μm, polar width 25 μm.

Taxonomic affinity. Rhizophora mangle L.

Comparisons. Zonocostites minor (Jaramillo and Dilcher 2001) has smaller dimensions and is micropitted. Zonocostites duquei Dueñas (1980) has distinct collumelae.

Zonocostites minor Jaramillo and Dilcher (2001)

(Fig. 6.5, 6.6)

Material examined. B17; EF: 14W/1.

Description. Monad, radially symmetric, isopolar, elliptical in equatorial view, tricolporate, distinct pores and colpi, pore diameter 0.5–0.6 μm, zonorate, costate, costae 0.5–0.7 μm thick, exine 0.8–1 μm thick, slightly reticulate to microppited ornamentation.

Stratigraphic range. Lower–Upper Eocene to Recent (Germeraad et al. 1968; Muller et al. 1987).

Dimensions. Equatorial diameter 12–14 μm, polar diameter 11–12 μm.

Taxonomic affinity. Mangrove.

Comparisons. Zonocostites ramonae Germeraad et al. (1968) has similar features but is of larger size (26–19 μm) and has a reticulate ornamentation.

Retistephanocolporites Van der Hammen and Wymstra (1964)

Sthephanocolporatae Iversen and Troels-Smith (1950)

Retistephanocolporites sp. 01

(Fig. 6.7, 6.8)

Material examined. B17; EF: 27K.

Description. Monad, radially symmetric, isopolar, circular, stephanocolporate (6 colpi and pores), distinct pores and colpi, colpi short, costate, costae 1.4-μm thick, pore 3.2-μm diameter; exine 4-μm thick; slightly reticulate ornamentation.

Dimensions. Total diameter 28 μm.

Taxonomic affinity. Diacidia—Malpighiaceae.

Systematic Palaeontology

Crustacea

Decapoda Latreille (1802)

Callianassoidae Dana (1852)

Neocallichirus Sakai (1988)

Neocallichirus sp.

(Fig. 7.1)

Fig. 7
figure 7

Crustacean Decapods. 1 Neocallichirus sp. MPEG-2340-I, propodi, outer and inner view; 2, 3 Calappila circularis, MPEG-2337-I, MPEG-2338-I, carapaces, dorsal view; 4 Calappila sp. MPEG-2339-I, chela, outer and inner view; 5 Euphylax septendentatus, MPEG-2333-I, carapace, dorsal view; 6 Necronectes sp., MPEG-2331-I, carapace, dorsal view. 15 Scale bar 5 mm; 6 Scale bar 10 mm

Material examined. MPEG-2340-I (4/4). Propodi.

Occurrence. The specimens were collected from the Early Miocene Pirabas Formation, Capanema Mine B17 (1°10′S, 47°13′W).

Description. Manus rectangular, slightly highest proximally, both margin slightly serrated, bulbous, swelling; fixed finger stronger and broken, proximal section gently curved dorsally, movable finger unpreserved.

Calappidae Milne Edwards (1873)

Calappila Milne Edwards (1873)

Calappila circularis (Beurlen 1958) Martins-Neto (2001)

(Fig. 7.2, 7.3)

Material examined. MPEG-2337-I, MPEG-2338-I. Carapace.

Occurrence. The specimens were collected from the Early Miocene Pirabas Formation, Capanema Mine B17 (1°10′S, 47°13′W).

Description. Carapace ovoid, widest at about midlength; anterolateral margin smooth, lacking prominent lateral spine, posterolateral margin with progressively well-developed spines developed on flares extension; surface coarsely nodose; nodes and grooves define carapace regions.

Calappila sp.

(Fig. 7.4)

Material examined. MPEG-2339-I. Left chela.

Occurrence. The specimen was collected from the Early Miocene Pirabas Formation, Capanema Mine B17 (1°10′S, 47°13′W).

Description. Palm highest distally with almost tree preserved spines and one broken in the dorsal border; external surface coarsely nodose; movable finger unpreserved.

Portunidae Rafinesque (1815)

Euphylax Stimpson (1860)

Euphylax septendentatus Beurlen (1958)

(Fig. 7.5)

Material examined. MPEG-2333-I, MPEG-2334-I. Carapace.

Occurrence. The specimen was collected from the Early Miocene Pirabas Formation, Capanema Mine B17 (1°10′S, 47°13′W).

Description. Carapace hexagonal, wider than long, length about two-thirds maximum width, widest about half the distance posteriorly; front T-shaped, often with sharp central spine; fronto-orbital width about 80 percent maximum carapace width; orbit with granular rim, sometimes with two closed fissures positioned near distal end, sometimes with concave reentrant near outer-orbital angle to embrace eye; anterolateral margin usually with three to five spines including outer-orbital spine; transverse ridge extending from last anterolateral spine axially on dorsal carapace; transverse ridges often on protogastric and hepatic regions.

Necronectes Milne Edwards 1881

Necronectes sp.

(Fig. 7.6)

Material examined. MPEG-2331-I, MPEG-2332-I. Carapace.

Occurrence. The specimen was collected from the Early Miocene Pirabas Formation, Capanema Mine B17 (1°10′S, 47°13′W).

Description. Carapace wider than long; axial regions generally well developed; dorsal surface covered with very fine granules; protogastric region defined by two circular swellings; mesogastric region broad posteriorly, narrowing anteriorly, well defined by grooves posteriorly and laterally, poorly defined anteriorly; cardiac region circular, elevated. Frontal margin with six spines including inner-orbital spine; spines small, blunt-tipped. Anterolateral margin generally longer than posterolateral margin; eight spines on anterolateral margin including outer orbital spine; spines increasing in size posteriorly except for eighth spine which is generally smaller than adjacent spine; spines triangular, with pointed tips; moving posteriorly spines become increasingly curved anteriorly. The ventral surface from the examined specimen is included in the matrix.

Portunus Weber (1795)

Portunus haitiensis Rathbun (1924)

(Fig. 8.1, 8.5)

Fig. 8
figure 8

Crustaceans Decapods. 1–5 Portunus haitiensis, MPEG-2323-I to MPEG-2327-I, carapace, dorsal and ventral view (except 4 only ventral view and enlarge details); 6, 7 Portunus pirabensis, MPEG-2329-I, MPEG-2330-I, carapace, ventral view; 8 Scylla aff. costata, MPEG-2351-I, carapace, dorsal view; 9–12 Portunidae, chelas, outer and inner surface. Scale bar 10 mm

Material examined. MPEG-2323-I to MPEG-2328-I, MPEG 2352-I, MPEG 2354-I. Carapace.

Occurrence. The specimens were collected from the Early Miocene Pirabas Formation, Capanema Mine B17 (1°10′S, 47°13′W).

Description. Carapace much wider than long; carapace regions moderately developed; frontal and anterolateral spines are unpreserved in all specimens collected; abdomen enlarged, with somites 3–5 fused; the second abdominal is pentagonal.

Portunus pirabensis Martins-Neto (2001)

(Fig. 8.6, 8.7)

Material examined. MPEG-2329-I, MPEG-2330-I, MPEG 2353-I. Carapace.

Occurrence. The specimens were collected from the Early Miocene Pirabas Formation, Capanema Mine B17 (1°10′S, 47°13′W).

Description. Carapace much wider than long; carapace regions moderately developed; frontal and anterolateral spines are unpreserved in all specimens collected; abdomen enlarged, with somites 3–5 fused; the second abdominal is trapezoidal, with the posterior margin circa one and half times longer than the anterior margin.

Scylla Haan (1833)

Scylla aff. costata (Rathbun 1924) Beurlen (1958)

(Fig. 8.8)

Material examined. MPEG-2351-I. Carapace.

Occurrence. The specimen was collected from the Early Miocene Pirabas Formation, Capanema Mine B17 (1°10′S, 47°13′W).

Description. Carapace about twice as wide as long, ovate, maximum width just over half the distance posteriorly; regions poorly defined, carapace smooth; front spines unpreserved in the examined specimen; anterolateral margins with nine spines including outer-orbital spines, last spine longest; gastric grooves strong. The ventral surface from the examined specimen is included in the matrix.

Portunidae, genera and species indeterminate

(Fig. 8.9, 8.12)

Material examined. MPEG-2341-I to MPEG-2350-I. Chela.

Occurrence. The specimens were collected from the Early Miocene Pirabas Formation, Capanema Mine B17 (1°10′S, 47°13′W).

Description. Chelipeds massive, with very weak keels on outer surface palm, sometimes with two distal spines on upper margin; surface with anastomosed reticulations.

Type species of Crustacean Decapods from the Pirabas Formation, Pará state, Brazil.

Calappilia circularis Beurlen (1958). MN-4619-I. Loc. Salinópolis e Ponta da Fazenda. (Schweitzer et al. (2009): 23 extinct species are included in this genus).

Sesarma paraensis Beurlen (1958). DNPM? (without catalog data). Loc. Colônia Pedro Teixeira (Schweitzer et al. (2009): 2 extinct species).

Parthenope trituberculata Beurlen (1958). DNPM-4459. Loc. Colônia Pedro Teixeira (Schweitzer et al. 2009: 13 extinct species).

Callinectes paraensis Beurlen (1958). MN-4585-I. Loc. Colônia Pedro Teixeira (Schweitzer et al. 2009: 8 extinct species).

Euphylax septendentatus Beurlen (1958). DNPM-4457. Loc. Rio do peixe Boi, Capanema (Schweitzer et al. 2009: 6 extinct species).

Hepatella amazonica Beurlen (1958). DNPM-4458. Loc. Colônia Pedro Teixeira (Schweitzer et al. 2009: monospecific).

Cyclocancer tuberculata Beurlen (1958). MN-4617-I. Loc. Colônia Pedro Teixeira e ilha de Fortaleza (Schweitzer et al. 2009: monospecific).

Typilobus unispinatus Martins-Neto (2001). DNPM?. Without catalog data. Loc. Ponta da Fazenda (Schweitzer et al. 2009: 17 extinct species and 10 species are dubious).

Portunus pirabaensis Martins-Neto (2001). MN-5402, MN5400, MN5401. Loc. Colônia Pedro Teixeira (Schweitzer et al. 2009: 48 extinct species).

Paratumidocarcinus marajoarus Martins-Neto (2001). RGMN-T06. Loc. Colônia Pedro Teixeira. (Schweitzer et al. 2009: monospecific).

Panopeus capanemaensis Martins-Neto (2001). MN-5012-I. Loc. Rio Japerica, Primavera (Schweitzer et al. 2009: 22 extinct species).

Uca inaciobritoi Martins-Neto 2001. MN-5014-I, MN-5015-I, UFRJ- IG-242, 264, 265. Loc. Furo de Baunilha Grande (Schweitzer et al. 2009: 10 extinct species).

Discussion

Faunal assemblage interpretation

Callianassidae are burrowers, constructing lengthy domicile galleries in nearshore or intertidal sediments (Manning and Felder 1991; Aguilera et al. 2010). Neocallichirus, common in the Mine B17, inhabited a palaeoenvironment characterized by shallow waters, soft bottom and sandy shorelines in intertidal or shallow subtidal rear-shore habitats. The most abundant bioturbation causes in the field are those generated by burrows of Neocallichirus.

Calappilia (an extinct, speciose genus within the Calappidae) and its inferred palaeoenvironment is based on comparison with the extant genera Calappa and interpreted as shallow water over coral reefs, shelly, sandy or muddy substrate (Bellwood 1998; Aguilera et al. 2010).

Portunidae are swimmers and back-burrow crabs. This ‘family’ forms a monophyletic group, and their first occurrence in the Eocene is followed by major Miocene radiation (Karasawa et al. 2008). The occurrence of portunids in the stratigraphic section of the Capanema Mine B17 includes Euphylax, †Necronectes, Portunus and Scylla, whose ecology is in agreement with the facies interpretation treated here and other fossil portunid records in the tropical Americas (Aguilera et al. 2010). These genera are associated with shallow waters and neritic coastal palaeoenvironments over sandy and soft bottom, beaches, estuaries, and in marginal lagoons with sea grass and mangrove protected area.

Euphylax is known primarily from the Miocene, when the genus was apparently most speciose in the Caribbean and Central America (Nyborg et al. 2003; Schweitzer et al. 2006). Fossil species of Necronectes (an extinct genus within the Portuninae) are known from the Oligocene and Miocene along the east coast of North America, Central America, Caribbean islands, South America and from Tethyan Europe (Schweitzer et al. 2006). Scylla appeared during the late Oligocene or early Miocene and its occurrences in circumtropical and equatorial regions during Miocene is a relict of a once broader distribution (Schweitzer et al. 2006).

The status of several other specimens of Portunidae remains that of unidentified species, because they are based solely on fragmented carapaces or isolated chelipeds.

Palaeoenvironmental interpretation

Aguilera and Páes (2012) distinguished the Capanema B17 Mine faunal assemblage from other four outcrops of the Pirabas Formation in the vicinity (Ilha de Fortaleza, Estação Agronômica, Aricuru, and Colônia Pedro Teixeira) based on the PCA analysis. Their observation is corroborated by the facies analysis previously developed by Petri (1957) as ecofacie Caneco (=Capanema) for “littoral coastal marine to transitional basin border, reaching 10 m deep”, a frequently cited facies name in literature (e.g., Távora et al. 2007). The sedimentary system in the Capanema Mine B17 section treated here is interpreted as a transitional tidal platform with infaunal and epifaunal invertebrate richness associated with a high calcareous algal productivity (photic zone), as indicated by the presence of portunids (blue crabs) and Calappidae (box crabs) and their preference for shallow water littoral to tidal influence and marginal coastal lagoons under brackish palaeoenvironment.

The lagoonal strata along the section studied show a thickness similar to deposits of the tidal flat with mangrove vegetation. The mangrove vegetation, with strong marine influence as indicated by high amounts of foraminifera, remained relatively stable in the tidal flats area over time during the evolution of this environment. However, the increase of species diversity from freshwater forests, lowland pteridophytes and freshwater algae, coupled with decrease in foraminifera diversity in the upper tidal flat deposit is interpreted as an indication of a slight increase of precipitation rates and freshwater inflow.

Divergent palaeoenvironmental conclusions were brought forward by previous researchers as open continental shelf with shallow tropical water, moderate to high energy flow and a wave-dominated estuarine environment (Góes et al. 1990; Rossetti and Góes 2004) and extensive lagoon system (Távora et al. 2007). However, the successions suggest more heterogeneity of laterally coexisting environments in a coastal depositional system (Walker 1992), and attempts to honor all faunal, floral and sedimentological data observed. The majority of Oligocene–Miocene Caribbean decapods suggest that they preferred clastic bottom, with a variety of settings, including sea grass mud plains, calcareous detrital environments, siliciclastic ramps, deltas and quiet lagoons (Schweitzer et al. 2006).

Palaeogeographic interpretation

During the early Miocene, extensive carbonate platforms were present along the continental margin in the eastern Amazon, northern Brazil, represented in the Pirabas Formation, characterized by a diverse and abundant of marine fauna closely related to similar assemblages known from the Oligocene–Miocene carbonate deposit of the Caribbean.

When the Andes cordillera progressively uplifted from the late Oligocene through the late Miocene, the modern South American hydrographic basins were established, and the Amazon River began shifting its drainage and sediment input to the Atlantic coast (e.g., Hoorn et al. 2010). This resulted in a drastic reduction of carbonate deposition and establishment of clastic dominated environments influenced by the continuous water currents from the eastern Amazon and eastern Caribbean along the marine coastal environments where the Amazon-Orinoco deltas discharged freshwater flow and great quantities of siliclastics into the sea. The geological and oceanographic barrier established since the late early Miocene until today, results in marine biotas of the area to be poorly connected with Caribbean biota proper. Based on the observed fossil record, the Neogene tropical western central Atlantic palaeobiogeographic sub-province was erected (Aguilera et al. 2011; Aguilera and Páes 2012) and the Brazilian biogeographic province was established separately based on extant faunal distribution (e.g., Pérez-Ruzafa et al. 2012).

Conclusion

The integration of facies, pollen and spores, and crustacean decapod data led to the identification of a carbonate/siliciclastic transitional depositional sedimentary system with lagoon, tidal flat, flood-tidal delta, and foreshore environments. The tidal flats were predominantly colonized by mangrove species such as Zonocostites ramonae, Zonocostites minor, and Deltoidospora adriennis. Crustacean decapods of Euphylax, †Necronectes, Portunus and Scylla genera were abundant in the foreshore environment, and are also indicative of the presence of shallow water and marginal lagoons with mangrove protected areas. The formation of these extensive carbonate environments is thought to be related to the lack of large continental drainage systems such as the Amazon River basin.

References

  • Aguilera, O., & Páes, E. (2012). The Pirabas Formation (Early Miocene from Brazil) and the Tropical Western Central Atlantic subprovince. Boletim do Museu Paraense Emilio Goeldi—Ciências Naturais, 7(1), 29–45.

    Google Scholar

  • Aguilera, O., Ramos, M. I., Páes, E., Costa, S., & Sánchez-Villagra, M. (2011). The Neogene tropical American fish assemblage and the paleobiogeography of the Caribbean region. Swiss Journal of Palaeontology, 130, 1–24.

    Google Scholar

  • Aguilera, O., Rodrigues de Aguilera, D., Vega, F. J., & Sánchez-Villagra, M. (2010). Mesozoic and Cenozoic decapod crustaceans from Venezuela and related trace-fossil assemblages. In M. Sánchez-Villagra, O. Aguilera, & F. Carlini (Eds.), Urumaco and Venezuelan Paleontology (pp. 103–128). Bloomington: Indiana University Press.

    Google Scholar

  • Arai, M. (1997). Dinoflagelados (Dynopniceae) miocênicos do Grupo Barreiras do nordeste do Estado do Pará (Brasil). Revista da Universidade de Guarulhos, 2, 98–106.

    Google Scholar

  • AzeBeardsley, R., Candela, J., Limeburner, R., Gleyer, W., Lentz, S. J., Castro, B. M., et al. (1995). The M1 Tide on the Amazon Shelf. Journal of Geophysical Research, 100, 2283–2319.

    Google Scholar

  • Bellwood, O. (1998). The phylogeny of box crab genera (Crustacea: Brachyura: Calappidae) with notes on their fossil record, biogeography and depth distribution. Journal of the Zoological Society of London, 244, 459–471.

    Google Scholar

  • Beurlen, K. (1958). Contribuição à paleontologia do estado do Pará. Boletim do Museu Paraense Emilio Goeldi, 5, 1–49.

    Google Scholar

  • Bourrouilh-Le Jan, F. G., & Hottinger, L. C. (1988). Occurrence of rhodoliths in the tropical Pacific—a consequence of Mid-Miocene paleo-oceanographic change. Sedimentary Geology, 60, 355–367.

    Google Scholar

  • Brito, I. M. (1971). Contribuição ao conhecimento dos Crustáceos decápodes da Formação Pirabas. I—Brachyura Brachyrhyncha. Anais da Academia Brasileira de Ciências, 43, 489–498.

    Google Scholar

  • Brito, I. M. (1972). Contribuição ao conhecimento dos Crustáceos decápodes da Formação Pirabas. II—Brachyura Ocypodidae. Anais da Academia Brasileira de Ciências, 44(1), 95–98.

    Google Scholar

  • Brito, I. M. (1977). Novas ocorrências de cirrípedes balanomorfos na Formação Pirabas, Mioceno Inferior do Estado do Pará. Anais da Academia Brasileira de Ciências, 49(3), 465–468.

    Google Scholar

  • Brito, I. M. (1993). O aspecto moderno da carcinofauna da Formação Pirabas, Oligoceno-Mioceno do estado do Pará. Anais da Academia Brasileira de Ciências, 65, 57–61.

    Google Scholar

  • Bush, M. B., & Weng, M. B. (2006). Introducing a new (freeware) tool for palynology. Journal of Biogeography, 34, 377–380.

    Google Scholar

  • Carter, R. M. (1998). Two models: global sea-level change and sequence stratigraphic architecture. Sedimentary Geology, 122, 23–36.

    Google Scholar

  • Clarke, R. T. (1965). Fungal spores from Vermejo Formation coal beds (Upper Cretaceous) of central Colorado. Mountain Geologist, 2, 85–93.

    Google Scholar

  • Colinvaux, P. A., De Oliveira, P. E., & Patiño, J. E. M. (1999). Amazon Pollen Manual and Atlas—Manual e Atlas Palinológico da Amazônia (p. 332). Amsterdam: Hardwood Academic.

    Google Scholar

  • Cookson, I. C., & Dettmann, M. E. (1958). Some trilete spores from Upper Mesozoic deposits in the Eastern Australian Region. Proceedings of the Royal Society—Victoria, 70, 95–128.

    Google Scholar

  • Cookson, I. C., & Dettmann, M. E. (1959). On Schizosporis, a new form genus from Australian Cretaceous deposits. Micropalaeontology, 5(2), 213–216.

    Google Scholar

  • Costa, J. B. S., Bemerguy, R. L., Hasui, Y., Borges, M. S., Ferreira, J. R. C. R. P., Bezerra, P. E. L., et al. (1996). Neotectônica da Região Amazônica: aspectos tectônicos, geomorfológicos e deposicionais. Geonomos, 4, 23–44.

    Google Scholar

  • Dana, J. D. (1852). Macroura. Conspectus Crustaceorum & Conspectus of the Crustacea of the Exploring Expedition under Capt. C. Wilkes, U.S.N. Proceedings of the Academy of Natural Sciences of Philadelphia, 7, 175–177.

    Google Scholar

  • De Grave, S., Pentcheff, N. D., Ahyong, S. T., Chan, T.-Y., Crandall, K. A., Dworschak, P. C., et al. (2009). A classification of living and fossil genera of decapod Crustaceans. Raffles Bulletin of Zoology, 21, 1–109.

    Google Scholar

  • de Haan, W. (1833–1850). Crustacea. In P.F. de Siebold (Ed.), Fauna Japonica sive Descriptio Animalium, quae in Itinere per Japoniam, Jussu et Auspiciis Superiorum, qui Summum in India Batava Imperium Tenent, Suscepto, Annis 1823–1830 Collegit, Notis, Observationibus et Adumbrationibus Illustravit. J. Muller et Co., Lugduni-Batavorum (¼ Leiden).

  • Dettmann, M. E. (1963). Upper Mesozoic microforas from south-eastern Australia. Proceedings of the Royal Society—Victoria, 77, 1–148.

    Google Scholar

  • Dueñas, H. (1980). Palynology of Oligocene–Miocene strata of borehole Q-E-22, Planeta Rica, northern Colombia. Review of Palaeobotany and Palynology, 10, 318–328.

    Google Scholar

  • Elsik, W. C. (1990). Hypoxylonites and Spirotremesporites, form genera for Eocene to Pleistocene fungal spores bearing a single furrow. Palaeontographica, Abteilung B, 216, 137–169.

    Google Scholar

  • Fernandes, J. M. G. (1984). Paleoecologia da Formação Pirabas, Estado do Pará. Anais do 33° Congresso Brasileiro de Geologia, 1, 330–340.

    Google Scholar

  • Fernandes, J. M. G., & Távora, V. A. (1990). Estudo dos Foraminíferos da Formação Pirabas procedentes do furo CB- UFPa-P1 (85), município de Capanema, Estado do Pará. Anais do 36° Congresso Brasilerio de Geologia, 1, 470–475.

    Google Scholar

  • Ferreira, C. S., Macedo, A. C. M., & Assis, J. F. P. (1978). A Formação Pirabas no Estado do Pará. Novo registro de subsuperfície: Belém (Furo 4be-01-Pa, Cprm). Anais da Academia Brasileira de Ciências, 50(3), 427.

    Google Scholar

  • Figueiredo, J., Hoorn, C., van der Ven, P., & Soares, E. (2009). Late Miocene onset of the Amazon River and the Amazon deep-sea fan: evidence from the Foz do Amazonas Basin. Geology, 37, 619–622.

    Google Scholar

  • Frederiksen, N. O., Carr, D. R., & Lowe, G. D. (1983). Middle Eocene palynomorphs from San Diego, California. Part I. Introduction, spores and gymnosperm pollen. AASP Contribution Series, 12, 1–31.

    Google Scholar

  • Germeraad, J. H., Hopping, C. A., & Muller, J. (1968). Palynology of tertiary sediments from tropical areas. Review of Palaeobotany and Palynology, 6, 189–348.

    Google Scholar

  • Góes, A. M., Rossetti, D. F., Nogueira, A. C. R., & Toledo, P. M. (1990). Modelo deposicional preliminar da Formação Pirabas no nordeste do Estado do Pará. Boletim do Museu Paraense Emílio Goeldi—Ciências da Terra, 2, 3–15.

    Google Scholar

  • Gorini, M. A., & Bryan, G. M. (1976). The tectonic fabric of the equatorial Atlantic and adjoining continental margins: Gulf of Guinea to northeastern Brazil. Anais da Academia Brasileira de Ciências, 48, 101–119.

    Google Scholar

  • Grimm, E. (2004). TGView version 2.0.2 (computer software). Springfield: Illinois State Museum.

  • Halfar, J., & Mutti, M. (2005). Global dominance of coralline red-algal facies: a response to Miocene oceanographic events. Geology, 33, 481–484.

    Google Scholar

  • Haq, B.V., Vali, P.R., & Hardenhol, J. (1988). Mesozoic and Cenozoic chronostratigraphy and eustatic cycles. In C.K. Wilgus, B. Hastings, C.A. Ross, H. Posamentier, J. Wagoner & C.G.St.C. Kendall, (Eds.), Sea Level Changesan Integrated Approach. Society of Economic Paleontologists and Mineralogists, 42, 71–108.

  • Harris, W. K. (1965). Basal tertiary microfloras from the Prince town area, Victoria. Palaeontologica, 15, 75–116.

    Google Scholar

  • Hesse, M., Halbritter, H., Zetter, R., Weber, M., Buchner, R., Frosch-Radivo, A., et al. (2008). Pollen terminology: an illustrated handbook (p. 264). New York: Springer.

    Google Scholar

  • Hoorn, C. (1993). Marine incursions and the influence of Andean tectonics on the Miocene depositional history of northwestern Amazonia: results of a palynostratigraphic study. Palaeogeography, Palaeoclimatology, Palaeoecology, 105, 267–309.

    Google Scholar

  • Hoorn, C. (1994a). An environmental reconstruction of the palaeo-Amazon River system (Middle-Late Miocene, NW Amazonia). Palaeogeography, Palaeoclimatology, Palaeoecology, 112, 187–238.

    Google Scholar

  • Hoorn, C. (1994b). Fluvial palaeonvironments in the intracratonic Amazonas Basin (Early Miocene–early Middle Miocene, Colombia). Palaeogeography, Palaeoclimatology, Palaeoecology, 109, 1–54.

    Google Scholar

  • Hoorn, C., Guerrero, J., Sarmiento, G. A., & Lorente, M. A. (1995). Andean tectonics as a cause for changing drainage patterns in Miocene northern South America. Geology, 23, 237–240.

    Google Scholar

  • Hoorn, C., Wesselingh, F. P., Ter Steege, H., Bermudez, M. A., Mora, A., Sevink, J., et al. (2010). Amazonia through time: andean uplift, climate change, landscape evolution, and biodiversity. Science, 330, 927–931.

    Google Scholar

  • Horton, B. K., Parra, M., Saylor, J. E., Nie, J., Mora, A., Torres, V., et al. (2010). Resolving uplift of the northern Andes using detrital zircon age signatures. The Geological Society of America (GSA Today), 20(7), 4–6.

    Google Scholar

  • Ibrahim, A. (1933). Sporenformen des Aegirhorizonts des Ruhr-Reviers. Technische Hochschule zu Berlin, Dissertation, pp. 1–46.

  • Iversen, J., & Troels-Smith, J. (1950). Pollen Morphologische Funktionen und Typen. Series B—Geological Survey of Denmark, 43(8), 1–54.

    Google Scholar

  • Jaramillo, C. A., & Dilcher, D. L. (2001). Middle Paleogene palynology of Central Colombia, South America: a study of pollen and spores from tropical latitudes. Palaeontographica B, 258, 87–213.

    Google Scholar

  • Johns, W. E., Lee, T. N., Beardsley, R. C., Candela, J., Limeburner, R., & Castro, B. (1998). Annual cycle and variability of the North Brazil current. Journal of Physical Oceanography, 28(1), 103–128.

    Google Scholar

  • Johns, W. E., Townsend, T. L., Fratantoni, D. M., & Wilson, W. D. (2002). On the Atlantic inflow to the Caribbean sea. Deep-Sea Research Part I, 49, 211–243.

    Google Scholar

  • Johnson, K. G., Sánchez-Villagra, M. R., & Aguilera, O. (2009). The Oligocene–Miocene transition on coral reefs in the Falcón Basin (NW Venezuela). Palaios, 24, 59–69.

    Google Scholar

  • Karasawa, H., Schweitzer, C. E., & Feldmann, R. M. (2008). Revision of Portunoidea Rafinesque, 1815 (Decapoda: Brachyura) with emphasis on the fossil genera and families. Journal of Crustacean Biology, 28(1), 82–127.

    Google Scholar

  • Kominz, M. A., Browning, J. V., Miller, K. G., Sugarman, P. J., Mizintseva, S., & Scotese, C. R. (2008). Late Cretaceous to Miocene sea-level estimates from the New Jersey and Delaware coastal plain coreholes: an error analysis. Basin Research, 20, 211–226.

    Google Scholar

  • Krutzsch, W. (1959). Einige neue Formgattugen und–arten von Sporen und Pollen aus der mitteleuropaischen Oberkreide und dem Tertiar. Palaeontographica, 105, 125–157.

    Google Scholar

  • Kumar, P. (1990). Fungal Remains from the Miocene Quilon Beds of Kerala State, South India. Review of Palaeobotany and Palynology, 62, 13–28.

    Google Scholar

  • Lalor, A. M., & Távora, V. (2006). Novos elementos da coralinofauna da formação Pirabas (Mioceno inferior), estado do Pará. Geociências, 25(2), 187–195.

    Google Scholar

  • Latreille, P.A. (1802–1803). Histoire naturelle, générale et particuliere, des crustacés et des insects, vol. 3. F. DuFart, Paris.

  • Legoux, O. (1978). Quelques espèces e pollen caractéristiques du Neogene du Nigeria. Bulletin Centre Recherche. Exploration-Production Elf-Aquitaine, 2(2), 265–317.

    Google Scholar

  • Leite, F. P. R., Oliveira, M. E. B., Arai, M., & Truckenbrodt, W. (1997a). Palinoestratigrafia da Formação Pirabas e Grupo Barreiras, Mioceno do nordeste do estado do Pará, Brasil. Revista da Universidade de Guarulhos, 2, 141–147.

    Google Scholar

  • Leite, F. P. R., Oliveira, M. E. B., Oliveira, P. E., Silvestre-Capelato, M. S., Arai, M., & Truckenbrodt, W. (1997b). Palinofloras miocenas da Formação Pirabas e Grupo Barreiras, na Região Bragantina, Estado do Pará, Brasil. Revista da Universidade de Guarulhos, 2, 128–140.

    Google Scholar

  • Lorente, M. A. (1986). Palynology and palynofacies of the upper Tertiary in Venezuela. (Dissertationes Botanicae, vol 99) (p. 222). Berlin-Stuttgart: Lubrecht & Cramer Ltd.

    Google Scholar

  • Manning, R. B., & Felder, D. L. (1991). Revision of the American Callianassidae (Crustacea: Decapoda: Thalassinidea). Proceedings of the Biological Society of Washington, 104(4), 764–792.

    Google Scholar

  • Martins-Neto, R. G. (2001). Review of some Crustacea (Isopoda and Decapoda) from Brazilian deposits (Paleozoic, Mesozoic and Cenozoic) with descriptions of new taxa. Acta Geologica Leopoldensia, 24(52/53), 237–254.

    Google Scholar

  • Martins-Neto, R. G. (2005). Estágio atual da paleoartropodologia brasileira: hexápodes, miriápodes, crustáceos (isopoda, decapoda, Eucrustacea e Copepoda) e Quelicerados. Arquivos do Museu Nacional, 63(3), 471–494.

    Google Scholar

  • Martins-Neto, R. G., & Dias-Júnior, S. C. (2007). The Brazilian paleodecapod fauna: state of knowledge. Memorie della Società Italiana di Scienze Naturali e del Museo Civico di Storia Naturale di Milano, 35(2), 76–78.

    Google Scholar

  • Maury, C. J. (1925). Fósseis terciários do Brasil com descrição de novas formas Cretáceas. Serviço Geológica e Mineralógico do Brasil—Monografia, 4, 1–665.

    Google Scholar

  • Miall, A. D. (1978). Facies types and vertical profile models in braided river deposits: a summary. In A. D. Miall (Ed.), Fluvial sedimentology (pp. 597–604). Calgary: Canadian Society of Petroleum Geologists.

    Google Scholar

  • Milne Edwards, A. (1873). Pages 8–9, pi. 4. In M. Le Comte, R. de Bouille, Paleontologie de Biarritz et de quelques autres localities des Basses-Pyrenees. C. R. Trav. Congr. Sci. Fr., Sess. 39e, Pau, t. 4, f. 3, pt. 1.

  • Milne Edwards, A. (1881). Note sur quelques Crustacés fossiles des environs de Biarritz. Annales des Sciences Geologiques—Paris, 11(1–8), 21–22.

    Google Scholar

  • Miner, E. L. (1935). Paleobotanical examinations of Cretaceous and tertiary coals. American Midland Naturalist, 16, 585–625.

    Google Scholar

  • Muller, J., Giacomo, E., & Van Erve, A. W. (1987). A palynological zonation for the Cretaceous, tertiary and quaternary of northern South America. American Association of Stratigraphic Palynologists, contribution series, 19, 7–76.

    Google Scholar

  • Nakoman, E. (1965). Description d’un noveau genre de for, Corsinipollenites. Annales de la Societe Geologique du Nord, 85, 155–158.

    Google Scholar

  • Nakoman, E. (1966). Contribution à l’ étude palynologique des formations tertiaires du Bassin de Thrace. Annales de la Societé Géologique du Nord, 46, 65–107.

    Google Scholar

  • Nyborg, T. G., Berglund, R. E., & Goedert, J. L. (2003). A new crab from the late Eocene Hoko River Formation, Olympic Peninsula, Washington: the earliest record of Euphylax (Decapoda: Portunidae). Journal of Paleontology, 77, 323–330.

    Google Scholar

  • Paula-Couto, C. (1967). Contribuição à paleontologia do estado de Pará. Um sirênio na formação Pirabas. Atas do 1o Simpósio sobre a Biota Amazônica, 1, 345–357.

    Google Scholar

  • Pérez-Ruzafa, A., Alvarado, J. J., Solís-Marín, F. A., Hernández, J. C., Morata, A., Marcos, C., et al. (2012). Latin America echinoderm biodiversity and biogeography: patterns and affinities. In J. J. Alvarado & F. A. Solís-Marín (Eds.), Echinoderm research and diversity in Latin America (pp. 511–541). New York: Springer.

    Google Scholar

  • Petri, S. (1954). Foraminíferos fósseis da Bacia de Marajó. Boletim da Faculdade de Filosofia, Ciências e Letras da Universidade de São Paulo (Geologia), 134(11), 1–70.

    Google Scholar

  • Petri, S. (1957). Foraminíferos Miocênicos da Formação Pirabas. Boletim da Faculdade de Filosofia, Ciências e Letras da Universidade de São Paulo (Geologia), 216, 1–172.

    Google Scholar

  • Playford, G. (1982). Neogene palynomorphs from the Huon Peninsula, Papua New Guinea. Palynology, 6, 29–54.

    Google Scholar

  • Potonie, R. (1951). Revision stratigraphisch wichtiger Sporomorphen des mitteleuropaischen Tertiars. Palaeontographica B, 9, 131–151.

    Google Scholar

  • Potonié, R. (1956). Synopsis der Gattungen der sporae dispersae. I Teil: Sporites. Beihefte zum Geologischen Jahrbuch, 23, 1–103.

    Google Scholar

  • Potonié, R., & Gelletich, J. (1933). Ueber Pteridophyten-Sporen einer eozänen Braunkohle aus Dorog in Ungarn: Gesellschaft Naturforschender Freunde zu Berlin. Sitzungsberichte, 33, 517–528.

    Google Scholar

  • Potonie, R., & Kremp, G. O. W. (1954). Die Gattungen der palãozoischen Sporae dispersae und ihre Stratigraphie. Geologisches Jahrbuch, 69, 111–194.

    Google Scholar

  • Punt, W., Hoen, P. P., Blackmore, S., Nilsson, S., & Le Thomas, A. (2007). Glossary of pollen and spore terminology. Review of Palaeobotany and Palynology, 143, 1–81.

    Google Scholar

  • Rafinesque, S. C. S. (1815). L’Imprimerie de Jean Barravecchia (pp. 1–224). Italy: Palermo.

    Google Scholar

  • Rathbun, M. J. (1924). Fossil crabs from the Republic of Haiti. Proceedings of the Biological Society of Washington, 63, 1–6. pls. 1–2.

    Google Scholar

  • Regali, M. S. P., Uesugui, N., & Santos, A. S. (1974). Palinologia dos sedimentos meso-cenozóicos do Brasil (I). Boletim Técnico da Petrobrás, 13(3), 177–191.

    Google Scholar

  • Rich, F. J., Kuehn, D., & Davies, T. D. (1982). The paleoecological significance of Ovoidites Palynology, 6, 19–28.

    Google Scholar

  • Rossetti, D. F. (2001). Late Cenozoic sedimentary in northeastern Pará, Brazil, within the context of sea-level changes. Journal of South America Earth Science, 14, 77–89.

    Google Scholar

  • Rossetti, D. F. (2006). Evolução sedimentar Miocênica nos Estados do Pará e Maranhão. Revista do Instituto de Geociências, 6, 7–18.

    Google Scholar

  • Rossetti, D. F., & Góes, A. M. (2004). Geologia. In D. F. Rossetti & A. M. Góes (Eds.), O Néogeno da Amazônia Oriental (pp. 13–52). Belém: Editora MPEG.

    Google Scholar

  • Rossetti, D. F., & Santos, A. E. A, Jr. (2004). Facies architecture in a tectonically-influenced estuarine incised valley fill of Miocene age, northern Brazil. Journal of South America Earth Sciences, 17, 267–284.

    Google Scholar

  • Roubik, D. W., & Moreno, J. E. (1991). Pollen and Spores of Barro Colorado Island. St. Louis: Missouri Botanical Garden.

    Google Scholar

  • Sah, S. C. D. (1967). Palynology of an upper Neogene profile from Rusizi Valley (Burundi). Musée Royal de l’Afrique Centrale, Tervuren, Belgique, Annales, Series, 8(57), 1–173.

    Google Scholar

  • Sakai, K. (1988). A new genus and five new species of Callianassidae (Crustacea: Decapoda: Thalassinidea) from northern Australia. The Beagle, Records of the Northern Territory Museum of Arts and Sciences, 5, 51–69.

    Google Scholar

  • Salard-Cheboldaeff, M. (1990). Intertropical African palynostratigraphy from Cretaceous to Late quaternary times. Journal of African Earth Sciences, 11, 1–24.

    Google Scholar

  • Salard-Cheboldaeff, M., & Locquin, M. V. (1980). Champignons présents au Tertiaire le long du littoral de l’Afrique équatoriale. 105e Congrès National dês Sociétés savantes, Caen, 1980, Sciences, fascicule, 1, 183–195.

    Google Scholar

  • Santos, M. E. C. M. (1958). Equinóides miocênicos da Formação Pirabas. Boletim da Divisão de Geologia e Mineralogia, 179, 1–24.

    Google Scholar

  • Santos, M. E. C. M. (1967). Equinóides miocênicos da Formação Pirabas. Atas do 1o Simpósio sobre a Biota Amazônica, 1, 407–410.

    Google Scholar

  • Santos, A. S., Carvalho, M. A., Santos, T. M., & Freitas, A. G. (2005). Caracterização da flora de montanha Quaternária com base em estudos palinológicos da Bacia da foz do Amazonas, Brasil. Arquivos do Museu Nacional, 63, 425–436.

    Google Scholar

  • Santos, D. B., Garcia, M. J., Saad, A. R., & Bistrichi, C. A. (2010). Palinoestratigrafia da Formação Itaquaquecetuba, Bacia de São Paulo, Brasil. Revista Brasileira de Paleontologia, 13(3), 205–220.

    Google Scholar

  • Santos, R. S., & Salgado, M. S. (1971). Contribuição à paleontologia do Estado do Pará. Novos restos de peixes da Formação Pirabas. Boletim do Museu Paraense Emílio Goeldi, 16, 1–13.

    Google Scholar

  • Santos, R. S., & Travassos, S. (1960). Contribuição à paleontologia do Estado do Pará. Peixes fósseis da Formação Pirabas. Divisão de Geologia e Mineralogia, Departamento Nacional da Produção Mineral, 16, 1–35.

    Google Scholar

  • Schweitzer, C. E., Feldmann, R. M., Garassino, A., Karasawa, H., & Schweigert, G. (2009). Systematic list of fossil Decapod Crustacean species. Brill, Leiden, Crustaceana Monographs, 10, 1–221.

    Google Scholar

  • Schweitzer, C. E., Iturralde-Vinent, M., Hetler, J. L., & Velez-Juarbe, J. (2006). Oligocene and Miocene decapods (Thalassinidea and Brachyura) from the Caribbean. Annals of Carnegie Museum, 75(2), 111–136.

    Google Scholar

  • Sepúlveda, E. G. (1980). Estudio palinológico de sedimentitas intercaladas en la “Serie Andesítica Andina”, cordón oriental del Futalaufquén, Chubut. Revista Asociación Geológica Argentina, 35, 248–272.

    Google Scholar

  • Sheffy, M. V., & Dilcher, D. L. (1971). Morphology and taxonomy of fungal spores. Paleontographica B, 133, 34–51.

    Google Scholar

  • Shephard, G. E., Müller, R. D., Liu, L., & Gurnis, M. (2010). Miocene drainage reversal of the Amazon River driven by plate-mantle interaction. Nature Geoscience, 3, 870–875.

    Google Scholar

  • Silva-Caminha, S. A. F., Jaramillo, C. A., & Absy, M. L. (2010). Neogene palynology of the Solimões Basin, Brazilian Amazonia. Palaeontographica Abteilung B: Palaeobotany—Palaeophytology, 283, 1–67.

    Google Scholar

  • Singh, C. (1964). Microflora of the Lower Cretaceous Mannville Group, east-central Alberta. Research Council of Alberta Bulletin, 15, 1–239.

    Google Scholar

  • Stimpson, W. (1862–1860). Notes on North American Crustacea, in the museum of the Smithsonian institution. No. II. Annals of the Lyceum of Natural History, 7, 176–246.

  • Szatmari, P., Françolin, J. B. L., Zanotto, O., & Wolff, S. (1987). Evolução tectônica da margem equatorial brasileira. Revista Brasileira de Geociências, 17, 180–188.

    Google Scholar

  • Távora, V., & Fernandes, J. M. (1999). Estúdio de los foraminíferos de la Formación Pirabas (Mioceno Inferior), Estado de Pará, Brasil, y su correlación con faunas del Caribe. Revista Geológica de America Central, 22, 63–74.

    Google Scholar

  • Távora, V., Santos, A. A., & Araujo, R. N. (2010). Localidades fossilíferas da Formação Pirabas (Mioceno Inferior). Boletim do Museu Paraense Emilio Goeldi—Ciências Naturais, 5(2), 207–224.

    Google Scholar

  • Távora, V.A., Silveira, E.S.F., & Milhomem-Neto, J.M. (2007). Mina B-17, Capanema, PA—Expressivo Registro de uma Paleolaguna do Cenozóico Brasileiro. In M. Winge, C. Schobbenhaus, M. Berbert-Born, E.T. Queiroz, D.A. Campos, C.R.G. Souza, & A.C.S. Fernandes (Eds.), Sítios Geológicos e Paleontológicos do Brasil (p. 18). Brasília: CPRM.

  • Thiegart, F. (1940). Die mikropaläontologie als pollenanalyse im dienst der Braunkohlenforschung. Brennstoff-Geologie Sehr, 13, 50.

    Google Scholar

  • Thomson, P. W., & Pflug, H. (1952). Die altterWire Braunkohle del’ Grube Zievel im Autwiele Graben bei Satzvey/Bl. Euskirchen. Neues Jahrbuch für Geologie und Paläontologie, 96(1), 1–26.

    Google Scholar

  • Toledo, P. M. (1989). Sobre novos achados de sirênios (Sirenotherium Pirabense, Paula Couto, 1967) na Formação Pirabas (Pará, Brasil). Boletim do Museu Paraense Emílio Goeldi, 1, 5–10.

    Google Scholar

  • Toledo, P. M., & Domning, D. P. (1989). Fossil Sirenia (Mammalia: Dugongidae) from the Pirabas Formation (Early Miocene), northern Brazil. Boletim do Museu Paraense Emílio Goeldi, série Ciências da Terra, 1(2), 119–146.

    Google Scholar

  • Traverse, A. (2008). Paleopalynology (p. 813). Dordrecht: Ed. Springer.

    Google Scholar

  • Uesugui, N. (1979). Palinologia: técnicas de tratamento de amostras. Boletim Técnico Petrobrás, 22, 229–240.

    Google Scholar

  • Van der Hammen, T. (1954). The development of Colombian flora throughout geologic periods: I, Maestrichtian to Lower Tertiary. Boletín Geológico, 2, 49–106.

    Google Scholar

  • Van der Hammen, T. (1956a). Description of some genera and species of fossil pollen and spores. Boletín Geológico, 4, 103–109.

    Google Scholar

  • Van der Hammen, T. (1956b). A palynological systematic nomenclature. Boletín Geológico, 4, 63–101.

    Google Scholar

  • Van der Hammen, T., & Garcia, C. (1966). The Paleocene pollen flora of Colombia. Leidse Geologische Mededelingen, 35, 105–114.

    Google Scholar

  • Van der Hammen, T., & Wymstra, T. A. (1964). A palynological study on the tertiary and upper Cretaceous of British Guayana. Leidse Geologische Mededelingen, 30, 183–241.

    Google Scholar

  • Van Gell, B., & Van der Hammem, T. (1978). Zygnemataceae in quaternary, Colombian sediments. Review of Palaeobotany and Palynology, 25, 377–392.

    Google Scholar

  • Van Hoeken-Klinkenberg, P. M. J. (1964). A palynological investigation of some upper Cretaceous sediments in Nigeria. Pollen et Spores, 6, 209–231.

    Google Scholar

  • Van Hoeken-Klinkenberg, P. M. J. (1966). Maastrichtian, Paleocene and Eocene pollen and spores from Nigeria. Leidse Geologische Mededelingen, 38, 37–48.

    Google Scholar

  • Vega, F. J., Nyborg, T., Coutiño, M. A., Solé, J., & Hernández-Monzón, O. (2009). Neogene Crustacea from Southeastern Mexico. Bulletin of the Mizunami Fossil Museum, 35, 51–69.

    Google Scholar

  • Walker, R. G. (1992). Facies, facies models and modern stratigrahic concepts. In R. G. Walker & N. P. James (Eds.), Facies models—response to sea level change (pp. 1–14). Ontario: Geological Association of Canada.

    Google Scholar

  • Weber, F. (1795). Nomenclator entomologicus secundum Entomologiam Systematicum ill. Fabricii, adjectis speciebus recens detectis et varietatibus. In C.E. Bohn, Chilonii & Hamburgi, viii þ 171 pp. Williams, A.B., Child, C.A. 1988., Comparison of some genera and species of box crabs (Brachyura: Calappidae), Southwestern North Atlantic, with description of a new genus and species. Fishery Bulletin, U.S., 87, 105–121.

    Google Scholar

  • White, C. A. (1887). Contribuições à Paleontologia do Brasil. Archivos do Museu Nacional, 7, 1–273.

    Google Scholar

  • Wilson, L. R., & Webster, R. M. (1946). Plant microfossils from a Fort Union coal of Montana. American Journal of Botany, 33, 271–278.

    Google Scholar

  • Zachos, J., Pagani, M., Sloan, L., Thomas, E., & Billups, K. (2001). Trends, Rhythms, and Aberrations in Global Climate 65 Ma to Present. Science, 292, 686–693.

Download references

Acknowledgments

This research was supported by the Museum Paraense Emilio Goeldi, the Conselho Nacional de Desenvolvimento Científico e Tecnológico (Process CNPq 311783/2011-2 to OA and CNPq 565046/2010-1 to HM-S), the Instituto Tecnológico Vale Desenvolvimento Sustentável and the Instituto de Geociencias-Universidade Federal do Pará in Brazil. Peter Toledo, Sue Costa and Maria Ines Feijó participated during the geological survey in the Capanema Mine B17 and helped to collect fossil crabs during field trips. We thank Zoneibe Luz for support in the preparation of the fossil crabs and photographs. The senior author thanks Maria de Lourdes Ruivo for support in the PV-MPEG-CNPq project. We thank Francisco Vega and Vladimir Távora for bibliographic support, comments and suggestions. Thanks to the anonymous reviewers and editors for their corrections and suggestions. Special thanks to Werner Schwarzhans (Hamburg, Germany) and Marcelo Sánchez-Villagra for further improvement of the manuscript.

Author information

Authors and Affiliations

Authors

Corresponding author

Correspondence to Orangel Aguilera.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Aguilera, O., Guimarães, J.T.F. & Moraes-Santos, H. Neogene Eastern Amazon carbonate platform and the palaeoenvironmental interpretation. Swiss J Palaeontol 132, 99–118 (2013). https://doi.org/10.1007/s13358-013-0051-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s13358-013-0051-5

Keywords

  • Amazon
  • Carbonate
  • Pirabas
  • Palaeoenvironmental
  • Palynology
  • Crustacea
