Studied material consists of 16 dry cuttlebones, naturally cleaned from soft tissues, of S. officinalis which were collected by ED along a beach in Vale do Lobo, southern Portugal in 2006–2007. Size range of available cuttlebones is 30–150 mm. Available cuttlebones were either fractured or cut transversally and longitudinally. The inside surfaces of the cuttlebones were analyzed using a Hitachi 4300 Scanning Electron Microscope. Specimens were either untreated or etched with glutaraldehyde/acetic acid/alcian blue solution. The solution contains 1:1 of glutaraldehyde and acetic acid with additive of alcian blue powder. Components were mixed for 20–30 min using an ultrasonic heating machine at 40 °C and then filtered. Specimens were etched for 10–25 min at 30–40 °C, washed and dried.
For the structural comparison between the siphonal zone of Sepia and tubular siphuncle of Spirula, we used the earlier scanning electron microscope images of Spirula obtained by SEM testing of beach-collected shells from Cuba and Australia (Doguzhaeva 2000; Doguzhaeva et al. 2011).
Terminology and abbreviations
Connecting stripes (cs) Structural element in the siphonal zone of cuttlebones; permeable band-like segments attached to neighbouring septal edges of achoanitic septa; may allow for liquid exchange between chambers of the phragmocone and the soft tissue of the siphon for buoyancy regulation;
Contacting ridges (cr) The ridge-like structural element in the siphonal zone of cuttlebones; located on contacts between connecting stripes and septa; allow for septum/connecting stripe fusion and liquid exchange between chambers of the phragmocone and soft tissue of the siphon for buoyancy regulation;
Lamella–fibrillar nacre (=nacre Type II in Mutvei 1970) Coleoid-related type of nacre characterized by micro-laminated ultrastructure; each lamella consists of parallel aragonite fibres or rods with different orientations in consecutive lamellas which result in criss-cross pattern observed in split overlapping laminas;
Lamella–globular ultrastructure (new term) Ultrastructure formed by globular crystalline units within an organic matrix; each globular crystalline unit is a stack of rounded parallel to septal surface alternating organic and mineralized microlaminas; each mineralized microlamina consists of carbonate granules imbedded in organic substance; herein applied to contacting ridges;
Pillar zone (pi) Permeable spherulitic-prismatic lining of the septal neck and slit-like openings between neighbouring septal necks in Spirula;
Siphonal zone (Bandel and Boletzky 1979) Ventral or inner side of cuttlebone; performs liquid exchange between chambers of the phragmocone and soft tissue of siphon and provides shell buoyancy regulation;
Siphonal structure Applied herein for shell structure, rather than soft tissue cord, or siphon;
Siphuncle Synonym of tubular siphuncle (see below);
Tubular siphuncle Tubular shell structure coating the soft siphonal cord; consists of alternative non-permeable septal necks and permeable connecting rings.
Observations on siphonal zone structure of S. officinalis
Connecting stripes

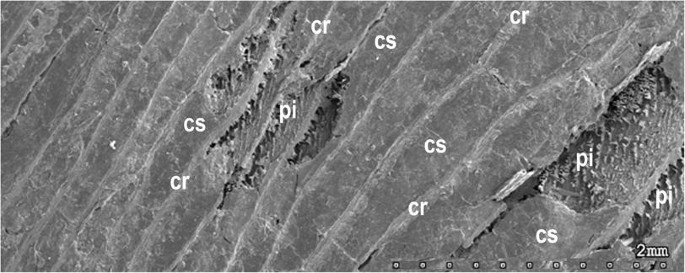

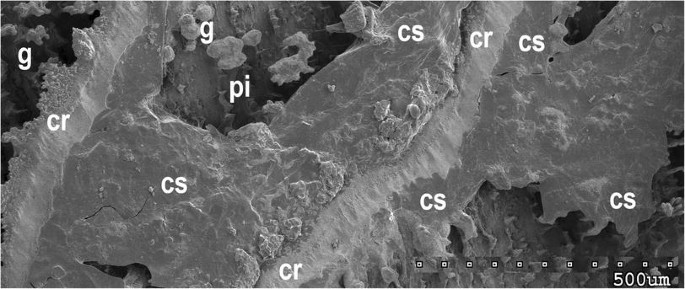

Naturally cleaned and dried siphonal zones of cuttlebones show partially removed shrunken and fractured segmented band-like connecting stripes covering the outside slit-like “openings” of cameras in the cuttlebone (Figs. 1, 2, 3). They are attached to the neighbouring septa in such a way that their posterior and anterior edges are attached to the adoral and adapical septal surfaces, respectively (Fig. 2). Between septa, the connecting stripes loosely cover the pillars in chambers (Figs. 3, 4). Connecting stripes seem to be relatively thick (Fig. 2), but their thickness could not be measured in our preparations. Connecting stripes are mostly organic (Figs. 2, 3), but are loosely mineralized along their peripheries near septa (Figs. 3, 4). They have numerous micropores about 0.1–0.01 μm in diameter. Mineralized portions of the connecting stripes reveal microgranular ultrastructure and microporosity (Figs. 4, 5). Connecting stripes are attached to septa by contacting ridges (Figs. 1, 2, 3, 4).
Contacting ridges
Contacting ridges are present on the adoral and the apical septal surfaces along septal edges (Figs. 1, 2, 3, 4, 6). Contacting ridges consist of globular crystalline units within an organic matrix; each globular crystalline unit is a stack of rounded, parallel to septal surfaces, alternating organic and mineralized microlaminas (Fig. 7). Mineralized microlaminas are formed by carbonate microgranules and have lamella–granular ultrastructure. The posterior and anterior slopes of the contacting ridge seem to have different mineralization (Figs. 3, 4). Contacting ridges have micro- and nannopores of about 0.1–0.01 μm in diameter and contain numerous interspaces filled with organic material between the mineralized globules.
Septa
Septa are thin, achoanitic, formed by lamella–fibrillar nacre. They are coated with a prismatic layer which is the basal part of the pillar structure (Fig. 8). Longitudinally fractured septa show fine laminas and course criss-cross pattern reflecting the different orientations of the short rod-like crystalline units of the overlapping laminas (Fig. 9).
Comparison of phragmocone structures in Sepia and Spirula

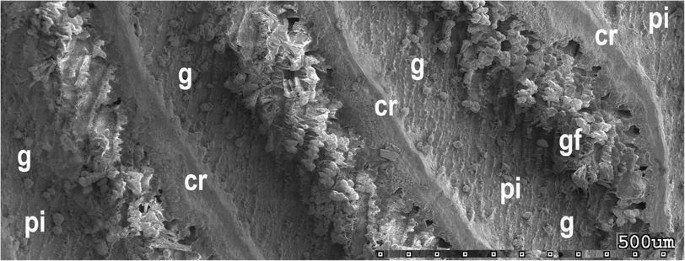

Despite remarkable morphological differences between the siphonal zone of Sepia and the fully developed tubular siphuncle of Spirula, there are striking similarities in their phragmocone structures. These include the narrow slit-like shape of permeable zones between chambers and the siphuncle (Figs. 1, 11, 12), and, additionally, the structural filling of the slit-like “openings” of chambers with granular or prismatic material as seen in Sepia (Fig. 6) and Spirula (Figs. 11, 12). Phragmocones with narrowed permeable zones between chambers and the siphuncle (Figs. 6, 11, 12) may allow for increased resistance to high hydrostatic pressure and enable both genera to migrate to greater depths either seasonally or daily. However, in Sepia, the permeable “openings” between chambers and the siphuncle are long, approximately equal to the cuttlebone width (Figs. 1, 2); in Spirula, they are short, about the circumference length of the siphonal tube (Figs. 11, 12). The narrow but long porous permeable zones, as seen in Sepia, may contribute to rapid buoyancy regulation, and, therefore, allow for environmental plasticity and higher species diversity. Spirula has relatively short permeable zones and may be less adaptable to rapid hydrostatic changes.
Lamella–fibrillar nacre in septa of Sepia and Spirula exhibits minor ultrastructural difference as well. In Sepia, each lamella consists of short fibre-like crystalline units, rather than long tread-like fibres observed in Spirula (compare Figs. 9, 10). This makes lamella–fibrillar nacre of septa in Sepia more similar to that of the middle Eocene sepiid Mississaepia Weaver, Dockery III et Ciampaglio, 2010 (Doguzhaeva et al. 2014: Pl. 7, Figs a1–a5) than to Spirula (Fig. 10). Lamella–fibrillar nacre, observed in Sepia, Mississaepia and Spirula, exhibits a characteristic criss-cross pattern formed by different orientation of rod- or fibre-like ultrastructural elements in the overlapping lamellas (Fig. 10; Doguzhaeva et al. 2011: Fig. 1a).
The lamella–fibrillar nacre in septa of belemnites and fossil spirulids, has not yet been studied in detail, but is suggested by fine lamination and granular appearance of septal material in sections, as well as, the absence of columnar and plate-like structural elements (Doguzhaeva 1996: Pl. 6, Figs. 2, 4, 5; Doguzhaeva et al. 2003: Figs. 5, 6). Lamella–fibrillar nacre is the coleoid-related septum ultrastructure currently documented in Spirula (Fig. 10), Sepia (Fig. 9), Mississaepia (Doguzhaeva et al. 2014: Pl. 7, Figs a1–a5) and some fossil spirulids and belemnoids (Doguzhaeva et al. 2011). It seems unlikely that this ultrastructure would appear independently in septa of Sepia if the cuttlebones originated from gladii by means of their secondary mineralization as is suggested by Bonnaud et al. (2006).
Septal necks are missing in Sepia while in Spirula, they are long (about camera length) retrochoanitic and leave deep attachment scars on shell wall (Doguzhaeva 2000: Pl. 1, Fig. 3; Pl. 2, Figs. 7, 8; Bandel and Stinnesbeck 2006: Pl. 3, Fig. 7; Fuchs et al. 2012: Fig. 9D).
Discussion on siphonal zone structure and its functional implication
In siphonal zone of cuttlebones, connecting stripes coat the slit-like interstices between septa (Figs. 1, 2, 3). Similarly, in other cephalopods, connecting rings cover the interstices between septal necks in tubular siphuncles. Connecting stripes apparently have a similar function to connecting rings and serve as transport routes for cameral liquid in and out of chambers for buoyancy regulation. Because septal necks are missing in Sepia, the connecting stripes are attached to the septal edges by contacting ridges. Near contacting ridges, the peripheries of the connecting stripes are mineralized (Figs. 3, 4). Because the contacting ridges have lamella–globular ultrastructure (Fig. 7) and consist of organic rich, granular, porous material (Fig. 5), they may also function as transport routes for the cameral liquid.
Among extinct cephalopods, thin fibrous porous connecting rings, like the connecting stripes of Sepia, were revealed in exceptionally well preserved shells of the Early Cretaceous lythoceratid ammonoid Eogaudryceras (Spath 1927) (Doguzhaeva et al. 2010: Figs. 1, 2, 4, 7, 8, 9, 10). In this genus, like in other lythoceratids (Drushchitc and Doguzhaeva 1974, 1981; Doguzhaeva 1988), the tubular siphuncle shows features such as relatively small diameter, short permeable segments (connecting rings), long non-permeable segments (septal necks), and reinforced contacts between shell wall and septal necks, indicative of relatively high resistance to hydrostatic pressure (see also Westermann 1996). In Eogaudryceras, porous connecting rings apparently provided effective buoyancy regulation necessary for pelagic habitats, diurnal vertical migrations, and hovering or drifting in mid-water, as indicated by gross shell morphology (Doguzhaeva et al. 2010). Small-shelled Eogaudryceras apparently resembles, to some degree, the deep-water Spirula which also possesses narrow marginal siphonal tube, long septal necks, and short narrow permeable zones (Figs. 11, 12; Doguzhaeva 2000: Pl. 1, Figs. 1–3). Conversely, the non-porous connecting rings of siphonal tube in Nautilus (Mutvei et al. 2010) possess low permeability at a molecular level (Denton and Gilpin-Brown 1966) and provide slow, taking several days, evacuation of the cameral liquid. These factors allow Nautilus to exceed the depth of about 300 m for only short time (Ward and Boletzky 1984; Saunders and Ward 1987; Ward 1987; Greenwald and Ward 1987).
Long narrow porous connecting stripes and organic rich, loosely mineralized contacting ridges of the siphonal zone may provide effective buoyancy regulation by rapid evacuation of the cameral liquid in cuttlebones, and thus may enable the cuttlefishes to colonize a broad range of depths and different habitats. These basic factors allow for the environmental plasticity of sepiids and may explain high species diversity as demonstrated by more than a hundred known species (see Adam and Rees 1966; Khromov 1989; Khromov et al. 1998; Lu 1998; Reid et al. 2005; Aitken et al. 2005).
