Special Issue: Hans Hess: A lifelong passion for fossil echinoderms
- Regular Research Article
A new fossil species of Clypeaster (Echinoidea) from Malaysian Borneo and an overview of the Central Indo-Pacific echinoid fossil record
Swiss Journal of Palaeontology volume 137, pages 389–404 (2018)
A complete, but fractured and crushed, echinoid corona from early to middle Miocene of Sarawak, Malaysia, is described as a new species, Clypeaster sarawakensis nov. sp. Although similar to modern C. rarispinus, the new species shows a distinct set of characters including petal length, periproct position and gut coiling. The discovery of a new Clypeaster, a genus characterised by a high preservation potential, illustrates that little is known about echinoid evolution and diversification in the Central Indo-Pacific, which features as a biodiversity hotspot since the Oligocene. Besides describing Clypeaster sarawakensis, we also compiled the known Central Indo-Pacific echinoid fossil record and used it to examine the Cenozoic diversity of echinoids. The overall diversity throughout the Cenozoic, and especially the rapid diversity increase at the Oligocene–Miocene boundary, corresponds to diversity trends observed in other taxa from the region.
The Central Indo-Pacific has been a hotspot of marine biodiversity for the last 28 My (Mihaljević et al. 2017). The high diversity of corals (Wallace and Rosen 2006), as well as foraminifera (Renema et al. 2008), molluscs (Kay 1996; Harzhauser et al. 2002, 2008) and mangroves (Ellison et al. 1999; Morley 2000), has shifted from the West Tethyan marine biodiversity hotspot (middle Eocene and older), through an Arabian hotspot (late Eocene–early Miocene), and finally to the Central Indo-Pacific region where it was well established by the early Miocene (Harzhauser et al. 2007; Renema et al. 2008). Shallow water, tropical coral reefs provided the foundation for its diversity by offering habitats for a myriad of vertebrate and invertebrate species, each of which has a specific function within the ecosystem. Echinoids (Echinodermata: Echinoidea), for example, are important herbivores in the reef ecosystems; however, they are also known to be linked to major ecosystem shifts. A classic example is the decline in Caribbean urchin densities due to the introduction of pathogens in the 1980s, which led to a significant reduction in their herbivory and a dramatic phase shift from coral- to algal-dominated habitats (Hughes 1994). Conversely, urchin population booms can cause excessive herbivory and shift healthy ecosystems to barren habitats (Bellwood et al. 2004). Overall, stable sea urchin populations promote biodiversity on reefs (Sammarco 1982).
Global Cenozoic diversity of echinoids is characterised by a peak in the Eocene which is preceded and followed by much lower diversities in the Paleocene and Oligocene (Kier 1974; McKinney et al. 1992, 2014). These evolutionary patterns seem to be driven by global sea temperatures (McKinney and Oyen 1989) on one hand, but also appear to be tightly linked with the rock record (Smith et al. 2012; Smith and Benson 2013). The same general pattern has been reported for the Indo-Pacific despite a lack of systematic analysis of its echinoid fossil record (Ali 1983; McKinney et al. 1992). In contrast, regional echinoid diversity in Australia does not show a decline after the Eocene, but rather a continuous increase in diversity. This special situation was caused by the tectonic northwards movement of Australia into warmer, tropical waters that overall promote higher diversity (McKinney et al. 1992). By contrast, Mediterranean Eocene and Oligocene faunas were shared with the Middle East, India and Malaysia, creating a great tropical Indo-Mediterranean realm (Stefanini 1924; Ghiold and Hoffman 1986; Harzhauser et al. 2007; Ghiold 2013), which was separated by the early Miocene due to the closure of the Mediterranean sea (Tethys) creating a distinct Indo-Pacific fauna (Rosen and Smith 1988). Therefore, diversity hotspots for echinoids, along with those of corals, foraminifera, molluscs and mangroves, gradually shifted from the Western Tethys to the current biodiversity hotspot in the coral triangle. Unfortunately, in contrast to Australian, North American, European and North African faunas, very little is known about echinoid evolution and diversification in the Central Indo-Pacific biodiversity hotspot, and a systematic review of the region’s echinoid fossil record is urgently needed.
Lack of knowledge of echinoid evolution and diversification in the Central Indo-Pacific has little to do with preservation potential as usually echinoids have excellent fossil records and are one of the most studied fossil benthic invertebrate groups (Mooi 2001; Kroh and Nebelsick 2010). However, there is a difference in preservation potential between regular and irregular echinoids. Regular echinoids are less likely to be preserved due to their less strongly interconnected coronal plates and hence higher susceptibility to disarticulation, specifically with elevated temperature or turbulence (Kidwell and Baumiller 1990; Greenstein 1991). Experimental studies show that the tests of regular echinoids can disintegrate to individual plates within 10–12 days (Greenstein 1991). Substrate (rocky, sandy, muddy) and the mode of life (infaunal or epifaunal) contribute to the preservation potential (Kier 1977; Smith 1984). Additionally, sand-dollar-like irregular echinoids have internal buttressing, a skeletal structure that provides stability to their discoidal test. It has been shown that skeletal stability (durability) is more important than life habitat in determining preservation potential (Greenstein 1993). A good example of this is the irregular echinoid genus Clypeaster, one of the most common fossil echinoids of the Cenozoic (Michelin 1855), characterised by a rather sturdy test and well-developed internal buttressing (e.g. Mortensen 1948; Roman 1952). Yet herein, we describe a new species of Clypeaster from the early Miocene of Malaysia, suggesting undersampling of the echinoid fauna in the Central Indo-Pacific. To test this hypothesis, we provide an overview of the fossil record of echinoids in the Central Indo-Pacific.
Materials and methods
A single Clypeaster specimen was collected from the Sibuti Formation in north-west Sarawak, Miri Division, Malaysia (4°3′25.27″N 113°48′33.12″E) (Fig. 1). The Sibuti Formation consists mainly of shales, but is locally calcareous with thin lenses of limestone and sandstone (Liechti 1960; Wilford 1961; Haile 1962; Hutchison 2005). It overlies the Subis (Tangap) Limestone Formation, and is stratigraphically located below the sandstones and mudstones of the middle Miocene Lambir Formation (Simmons et al. 1999; Hutchison 2005). Studies of the large benthic foraminifera, planktonic foraminifera and pollen of the Sibuti Formation indicate an early Miocene to earliest middle Miocene age (Large benthic foraminifera zone Te5-Tf1) (Liechti 1960; Simmons et al. 1999). The Sibuti Formation is also referred to as the Sibuti Member or Sibuti facies and is included within the Setap Shale Formation by some workers (Hutchison 2005). The Sibuti Formation is interpreted as inner to outer neritic with water depths less than 50 m (Liechti 1960; Simmons et al. 1999). Other than the Clypeaster specimen described herein, solitary corals (Cycloseris, Heterocyathus), fragments of echinoid spines and loose large benthic foraminifera were also found on the site. The fossil site was a small, natural outcrop recognised only as a clearing of vegetation along the road from Bekenu to Bungai Beach. It had been discovered during a reconnaissance trip in February 2011 conducted by the University of Queensland team working on marine biotic evolution in SE Asia.
Fossil Clypeaster taxonomic description
The taxonomic description of a single Clypeaster specimen presented herein follows the 28 taxonomic characters identified and described by Mihaljević et al. (2011) (Table 1). The terminology of the echinoid endoskeleton used follows Mortensen (1948), Durham (1955) and Mooi (1989). Computed tomography (CT) was used to non-destructively obtain information on internal buttressing and on the proportions of the digestive tract, an important taxonomic character (e.g. Mortensen 1948; Roman 1952; Mihaljević et al. 2011). The classification used follows Kroh and Smith (2010).
The whole specimen was scanned using a 16-slice helical CT scanner (Toshiba Medical Systems Corporation, Tochigi-ken, Japan) with volumes acquired using the following parameters: 100 kV, 100 mA, 1.5 s, 0.5 mm slice thickness, pitch factor 0.688/helical pitch 11, rotation time 2.0, smallest possible scan field of view (180 mm) and small focal spot, reconstruction interval 0.4 mm, and bone algorithm (WL 1100; WW, 4500). The CT study was viewed in Digital Imaging and Communications in Medicine (DICOM) format, and volumetric data reconstruction was performed using OsiriX MD image viewing software (v.9.0.1, Pixmeo, Geneva, Switzerland). The Clypeaster specimen is stored in the paleontological collections of the Queensland Museum in Brisbane, Australia, with the registration number QMF58959.
Fossil and modern distributions
The Central Indo-Pacific (here defined as 20°S–20°N, 90°–180°E) echinoid fossil record used in this study was obtained from the Paleobiology Database (PBDB, http://paleobiodb.org), a non-profit public resource containing a global compilation of the spatial and temporal observations of taxa in the fossil record. Data were downloaded from the PBDB on 28 February 2017. The PBDB fossil record was supplemented further by data from published monographs (Fritsch 1877; Martin 1880; Vredenburg 1919; Gerth 1922; Vredenburg 1922; Gerth 1927; Jeannet 1935; Jeannet and Martin 1937; Kier 1964) and more recent literature (Lindley 2001, 2003, 2004; Donovan et al. 2010, 2012; Donovan and Renema 2015) not yet included in the PBDB. Validity of names of fossil genera was checked through the WoRMS Match Taxa (Kroh and Mooi 2017) function on 28 February 2017. Modern echinoid distribution was obtained from the Ocean Biogeographic Information System (OBIS, iobis.org) and supplemented with other published literature (De Meijere 1903; Mortensen 1948; Clark and Rowe 1971). Using both fossil and modern echinoid distributions in the Central Indo-Pacific, we estimated echinoid diversity through the Paleogene and Neogene (65 My–2.58 My).
To assess if the difference in preservation potential between regular and irregular echinoids affected their occurrence in the Central Indo-Pacific fossil record, a rarefaction curve was generated by plotting the number of echinoid collections against the number of genera/higher taxa. The rarefaction curve was generated using R, Version 2.15.2 software (R Development Core Team 2017). From the literature, we extracted information on the skeletal elements preserved and used for echinoid identification and description to make further inferences about the difference in preservation potential between regular and irregular echinoids.
Class Echinoidea Leske, 1778
Subclass Euechinoidea Bronn, 1860
Infraclass Acroechinoidea Smith, 1981
Irregularia Latreille, 1825
Microstomata Smith, 1984
Neognathostomata Smith, 1981
Order Clypeasteroida Agassiz, 1835
Suborder Clypeasterina Desor, 1857
Family Clypeasteridae Agassiz, 1835
Range. Late Eocene to Recent, worldwide in depths from 0 to 550 m.
Genus Clypeaster Lamarck, 1801
Diagnosis Clypeasteridae, which are ovate to subpentagonal with rounded or thin/sharp margin and central apical disc with 5 gonopores. Internal buttressing usually well-developed around periphery. Petals well-developed; plating compound with every other plate a demiplate. All interambulacra disjunct on oral surface. Periproct oral, towards posterior margin; positioned between third and fifth pairs of post-basicoronal interambulacral plates. Food grooves a simple strong perradial trunk; unbranched and confined to oral surface. Pores and tubercles irregularly scattered (Smith and Kroh 2011a, b).
Clypeaster sarawakensis nov. sp.
Holotype A complete, but fractured and crushed corona (Queensland Museum QMF58959).
Type locality North-west Sarawak, Miri Division, Malaysia (4°3′25.27″N 113°48′33.12″E).
Type stratum Sibuti Formation, early Miocene to earliest middle Miocene (Large benthic foraminifera zone Te5-Tf1).
Diagnosis. Clypeaster with pentagonal outline, digestive tract looping back before Amb III, and relatively closed petals which extend ~ 70% of the corresponding test radius to the ambitus.
Description Test pentagonal with rounded edge, 670 mm in length and 696 mm in width. Test dorsoventrally crushed, thus its height might be underestimated (measured at 7 mm). Most of oral surface flat (angle of peristome to point of contact is 5°–10°), only area closest to the peristome sunken, forming a small infundibulum. Peripheral swollen rim present and the test edge is rounded.
Petals well developed and relatively closed (ratio of distance between inner pore-pairs and maximum width of inner petals for both petal II and III ~ 0.25). Petals not reaching ambitus, extending ca. two-thirds of the corresponding test radius (based on petal I (ratio of distance from distal end of petal III to ambitus and length of petal III ~ 0.46). Neither petals nor the petalodium as a whole are markedly inflated; instead, they are almost level with the interambulacra. Area around apical disc slightly inflated, causing a slightly concave profile of the petals in lateral view.
Food grooves present only on oral surface and extending almost to the ambitus (ratio of distance of distal end of the food groove to ambitus and distance of peristome to ambitus ~ 0.33). Combed areas absent.
Periproct situated on the oral surface close to the ambitus (ratio of distance to ambitus from periproct and periproct length ~ 0.64). Tract of digestive system runs anteriorly and loops back before reaching perradius of ambulacrum III. Lantern support structure is paired.
Marginal buttressing is well developed. Series of walls form a wide buttressed zone on the margin. Ambulacral buttressing comprises bar(s). Internal wall does not seem to form a double wall with microcanal system, although a double wall might be infilled by syntaxial rim cement. Radial bars projecting in from test margin along adradial sutures are absent. Central buttressing made of infill of relatively fine/delicate pillars and bars in the interradial zone. Central buttressing is not fused and, therefore, does not form a continuous curtain enclosing petaloid area. In the central ambulacral zones within the petals, only fine pillars are present.
Preservation. The test is dorsoventrally flattened with the peripheral rim supported by very dense marginal buttressing. This dorsoventral flattening might have impacted the test profile; thus, the test height is reported as an underestimated value. As a consequence of collapsed test height, the angle of peristome to point of contact (measure of the flatness of the oral surface) has also been impacted. However, from the transversal view (Fig. 2d), it is clear that the oral surface of the studied specimen is neither as flat as in Clypeaster annandalei nor as convex as in C. rosaceus (Mihaljević et al. 2011). Thus, the angle of peristome to point of contact measures 5°–10°. The test flattening has resulted in a circular fracture of the test along the inner edge of marginal buttressing. During the fossilisation process, sediment has accumulated and lithified along the fracture concealing some of the taxonomical informative characters, including: (a) tips of the petals-creating uncertainty in some petal measurements, and (b) occluded plates-preventing counting of the plates. The oral side of the specimen is not as well preserved. The periproct is almost undetectable on the specimen but it is clearly visible using the CT images (Fig. 2c). Thus, the distance of the periproct from the ambitus was measured on the CT image. Additionally, due to the poor preservation, determination of (a) plates between which the periproct is situated, and (b) tubercle differentiation along ambulacra could not be made. Despite the state of preservation, 25 out of 28 characters described in Mihaljević et al. (2011) could to be determined.
Remarks. The genus Clypeaster is characterised by a rather sturdy test, ovate to subpentagonal outline with rounded margin and internal buttressing. These features facilitate not only a high preservation potential, but also identification on generic level. However, subdividing Clypeaster taxonomically has proven difficult, largely because its approximately 400 nominal species show extensive gradation in test shape. A recent study re-evaluated taxonomic characters employed in previous attempts to subdivide the genus (Agassiz 1863; Pomel 1887; Lambert 1912; Serafy 1970; 1971; Hopkins 1988; Mooi 1989; Schultz 2006) and systematically assessed test architecture (internal buttressing) as a taxonomically informative character for distinguishing between species (Mihaljević et al. 2011).
Only 33 Clypeaster occurrences, of which eight are nominal species, are known from the Central Indo-Pacific fossil record: C. blumenthali (Jeannet and Martin 1937), C. brevipetalus (Jeannet and Martin 1937), C. humilis (Gerth 1922; Jeannet and Martin 1937), C. latissimus (Lindley 2003), C. cf. malumbangensis (Jeannet and Martin 1937), C. phyllodes (Fritsch 1877), C. reticulatus (Jeannet and Martin 1937; Lindley 2003, 2004) and C. saipanicus (Cooke 1957). Three of these (C. humilis, C. latissimus and C. reticulatus), together with 5 other Clypeaster species (C. annandalei, C. fervens, C. miniaceus, C. pateriformis and C. rarispinus), have been reported from the modern Central Indo-Pacific. We compared the Malaysian specimen described herein with the eight fossil species and five exclusively modern Central Indo-Pacific Clypeaster species (Table 1). Most of the fossil species lack any description of the internal structures, thus the comparison was not possible in these cases. From 28 accessed taxonomic traits, most traits (25) could be accessed in only eight out of the 13 Central Indo-Pacific Clypeaster species (Table 1). From all these species, the specimen described herein most closely resembles Clypeaster rarispinus. Clypeaster rarispinus is unknown from the Central Indo-Pacific fossil record but is common in coastal (shallower) regions of the modern north-western Indian Ocean and the Central Indo-Pacific (De Meijere 1903; Mortensen 1948; Clark and Rowe 1971). However, the following five morphological characters differentiate the studied specimen from C. rarispinus: (a) petal III in Clypeaster sarawakensis nov. sp. extends further to ambitus than in C. rarispinus, (b) both petals II and III in C. sarawakensis nov. sp. are more open than in C. rarispinus, (c) oral surface in C. sarawakensis nov. sp. is less flat than in C. rarispinus, and (d) gut in C. sarawakensis nov. sp. runs anteriorly and loops back before reaching perradius of ambulacrum III, whereas in C. rarispinus, gut loops back after crossing perradius of ambulacrum III (Table 1).
Describing a new species based on a single specimen is problematic since no assessment of intraspecific variation can be made. This is particularly relevant in a species-rich genus such as Clypeaster, which also shows extensive gradation in test shape. In the past, new Clypeaster species were established based on minor shape differences in poorly preserved specimens, which has led to the inflation of the number of nominal species (Poddubiuk 1985). Moreover, a recent review of the clyperasteroid genus Monostychia shows high intraspecific variation and illustrates that to capture intraspecific variation assessment greater than 15 individuals are needed (Sadler et al. 2016). Nevertheless, following a robust taxonomic framework (Mihaljević et al. 2011), we could show that none of the known species from the region are similar to our described Malaysian specimen. Thus, we are confident that it represents a new species.
Central Indo-Pacific echinoid fossil record

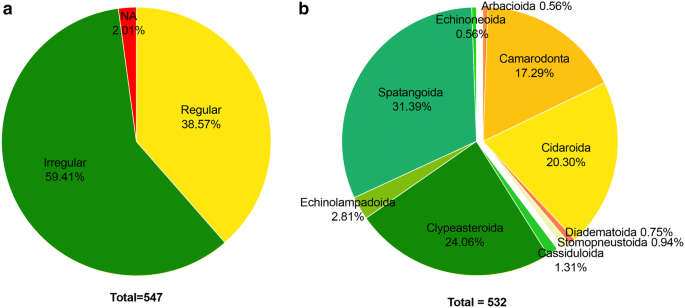

After combining the 96 records of fossil echinoids from the PBDB (Martin 1879; Ladd and Hoffmeister 1945; Abrard 1946; Beets 1947; Cloud et al. 1956; Martin and Braga 1993) and the 464 records extracted from the literature, the Central Indo-Pacific echinoid fossil record comprises 560 occurrences (Supplementary Table 1). These occurrences belong to 79 valid genera and 12 higher taxa (e.g. family, order; that is, not all fossil echinoids are described to genus level). Irregular echinoids contribute a larger number of taxa (43 of 307 samples) than regular echinoids (33 of 216 samples). Classification beyond the class Echinoidea is unknown for 11 occurrences. Neither of the rarefaction curves for regular or irregular echinoids have started to level off, but the curve for irregular echinoids is slightly more flattened, possibly indicating less undersampling (Fig. 3). Most records are from the Miocene of Indonesia (Table 2).
For 532 occurrences, family level is known. Camarodonta and Cidaroida are the two most common orders in the fossil record among regular echinoids, and Clypeasteroida and Spatangoida are the most common for irregular echinoids in the study area (Fig. 4).
Diversity of echinoids in the Central Indo-Pacific
Echinoid diversity in the Central Indo-Pacific, based on the fossil record compiled herein, appeared to have improved slowly until the early Miocene when a sharp increase is recorded (Fig. 5). After the rapid increase in generic diversity, with 45 new genera originating, the diversity stayed relatively stable throughout the Neogene. Both regular and irregular echinoids displayed similar patterns (Fig. 5).

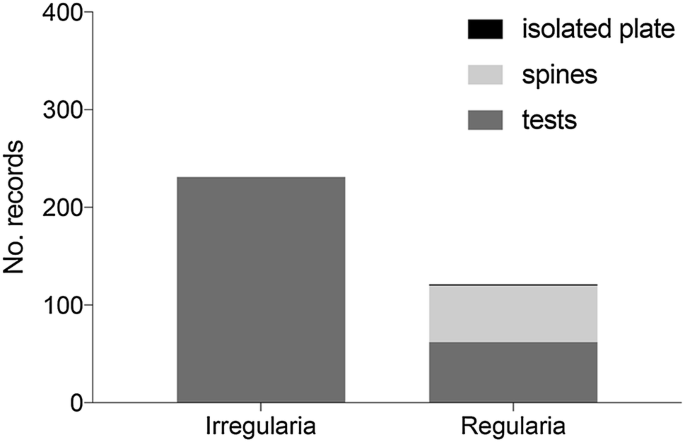

For 352 of 464 fossil records extracted from the literature, information about skeletal element preservation has been gathered. The fossil record of irregular echinoids is based on complete or fragmented tests. In regular echinoids, spines are a big contributor to the fossil record in addition to the tests (Fig. 6). The record includes a single report based on a disarticulated plate of the test.
Due to their sturdy test, members of the genus Clypeaster are some of the most common fossil echinoids in the Cenozoic (Michelin 1855). Yet, we describe here a new species of this genus from a single specimen found at the study location. Thus, the description of a new Clypeaster species suggests undersampling, lack of systematic collection and overall poor knowledge of fossil echinoids from the Central Indo-Pacific. With a few exceptions (Lindley 2001, 2003, 2004; Donovan et al. 2010, 2012; Donovan and Renema 2015), systematic collection and description of the Central Indo-Pacific echinoids ceased in the first half of the twentieth century after the comprehensive works of Martin (1880), Gerth (1922), and Jeannet and Martin (1937). The Central Indo-Pacific fossil record in general was poorly known until 2010 when the Indo-Pacific Ancient Ecosystem Group (IPAEG) was founded. The IPAEG’s purpose is to document and understand the relationship between environmental and biotic changes of shallow tropical marine ecosystems in the Indo-Pacific. Despite the tremendous improvements in our understanding of the Cenozoic diversification of tropical faunas in the Central Indo-Pacific over the last few years (e.g. Bromfield and Pandolfi 2011; McMonagle et al. 2011; Johnson et al. 2015; Santodomingo et al. 2015, 2016; Mihaljević et al. 2017), our knowledge of the echinoid fossil record in this region remains largely unchanged.
This overview of the Central Indo-Pacific echinoid fauna suggests that the overall pattern of echinoid diversity and especially the rapid diversity increase at the Oligocene–Miocene boundary corresponds with trends seen in corals, foraminifera and molluscs (Wilson and Rosen 1998; Harzhauser et al. 2002; Wallace and Rosen 2006; Harzhauser et al. 2007, 2008; Renema et al. 2008). In corals, a rapid diversity increase is also observed from the Early to Late Oligocene, when the Central Indo-Pacific biodiversity hotspot originated (Wilson and Rosen 1998; McMonagle et al. 2011; Mihaljević et al. 2017). The later onset of diversification of Central Indo-Pacific echinoid faunas in comparison to corals may have a variety of reasons, including research bias (i.e. Late Oligocene echinoids may be understudied) and the possibility that diversification of echinoids might have genuinely lagged behind corals. That is, it may have taken place only after the true reef framework and diversity of habitats was properly established. An increase in the functional redundancy of corals has been suggested as an important factor in the persistence of the Central Indo-Pacific biodiversity hotspots for over 28 My (Mihaljević et al. 2017). However, high and constant echinoid diversity throughout the Neogene has potentially also contributed to the overall health of ecosystems though herbivory, bioerosion, and bioturbation.
To truly uncover the evolutionary patterns of the Central Indo-Pacific echinoids, an in-depth revision of taxonomy and stratigraphy of the known echinoid fossil record is required. Additionally, new fossil collections gathered in a rigorous temporal and environmental framework are needed, because they provide empirical data for documenting past diversity (Adrain 2001; Jackson and Johnson 2001; Jackson and Erwin 2006). New fossil data can help calibrate molecular clocks by providing firm minimum ages of diversification events, and facilitate understanding of paleontological longevity and distribution of taxa over spatial scales (Alfaro et al. 2007; Benton and Emerson 2007; Donoghue and Benton 2007; Simpson et al. 2011). The value of fossil data for evolutionary studies depends on the quality and precision of taxonomic identifications (and descriptions) of new collections (Patterson 1981; Hedges et al. 1996; Blair and Hedges 2005). Moreover, when estimating past diversity and conducting paleontological sampling, geological processes need to be considered (Jackson and Johnson 2001; Smith and McGowan 2011), including the relationship between the number of samples and extent of the examined rock (i.e. size of outcrop), facies diversity and their abundance in the geological record, and the preservation potential of different taxa in different facies (Foote 2001; Jackson and Johnson 2001; McGowan and Smith 2008; Smith and McGowan 2011; Zuschin et al. 2011; Smith and Benson 2013). The latter is especially important to consider for the echinoids, as taphonomic challenges have led to discrepancies in reported diversity between regular and irregular echinoids (Kier 1977; Greenstein 1993) because disarticulated or broken fragments (more common in regular echinoids) are commonly ignored in studies of faunal diversity (Donovan 2001; Kroh 2007). It is, therefore, not surprising that so far twice as many occurrences of irregular echinoids have been reported compared to regular echinoids from the Central Indo-Pacific biodiversity hotspot.
Better understanding of the diversity, abundance and taphonomy of the Central Indo-Pacific echinoids throughout the Cenozoic would advance our knowledge of relationships between the Mediterranean, Indo-Pacific and Australian echinoid faunas. Understanding these past relationships of echinoid faunas would supplement our knowledge of present day distributions and aid our attempt to predict future diversities and distributions (Keith et al. 2013). Hence, new fossil collections and detailed taxonomic descriptions are the only reliable way forward in studying the evolution of the Central Indo-Pacific echinoids and the longevity of this whole marine biodiversity hotspot.
Abrard, R. (1946). Fossiles Néogénes et Quaternaires des Nouvelles-Hébrides. Annales de Paléontologie, 32, 1–112.
Adrain, J. M. (2001). Systematic paleontology. Journal of Paleontology, 75, 1055–1057.
Agassiz, L. (1835). Prodrome d’une monographie des radiaires ou échinodermes. Mémoires de la Société des Sciences Naturelles de Neuchâtel, 1, 168–199.
Agassiz, A. (1863). List of the echinoderms sent to different institutions in exchange for other specimens, with annotations. Bulletin of the Museum of Comparative Zoology, 1, 17–28.
Alfaro, M. E., Santini, F., & Brock, C. D. (2007). Do reefs drive diversification in marine teleosts? Evidence from the pufferfishes and their allies (Order Tetraodontiformes). Evolution, 61, 2104–2126.
Ali, M. (1983). Tertiary echinoids and the time of collision between Africa and Eurasia. Neues Jahrbuch für Geologie und Paläontologie Monatshefte, 4, 213–227.
Beets, C. (1947). Note on fossil Echinoidea and Gastropoda from Sarawak and Kutei, Borneo. Geologie en Mijnbouw, 9, 40–42.
Bellwood, D. R., Hughes, T. P., Folke, C., & Nyström, M. (2004). Confronting the coral reef crisis. Nature, 429, 827–833.
Benton, M. J., & Emerson, B. C. (2007). How did life become so diverse? The dynamics of diversification according to the fossil record and molecular phylogenetics. Palaeontology, 50, 23–40.
Blair, J. E., & Hedges, S. B. (2005). Molecular phylogeny and divergence times of deuterostome animals. Molecular Biology and Evolution, 22, 2275–2284.
Bromfield, K., & Pandolfi, J. M. (2011). Regional patterns of evolutionary turnover in Neogene coral reefs from the central Indo-West Pacific Ocean. Evolutionary Ecology, 26, 375–391.
Bronn, H. G. (1860). Die Klassen und Ordnungen des Thier Reichs, wissenschaftlich dargestellt in Wort und Bild. Zweiter Band. Actinozoen. Leipzig & Heidelberg: C.F. Winter’sche Verlagshandlung.
Clark, A. M., & Rowe, W. E. (1971). Monograph of shallow-water Indo-West Pacific echinoderms. London: British Museum.
Cloud, P. E., Jr., Schmidt, R. G., & Burke, H. W. (1956). Geology of Saipan, Mariana Islands, Part 1. General Geology. U.S. Geological Survey Professional Paper, 280A, 1–126.
Cooke, C. W. (1957). Geology of Saipan Mariana Islands, Part 3: Paleontology Chapter J. Echinoids. United States Geological Survey. Professional Paper, 290 J 280-E-J, 361–364.
De Meijere, J. C. H. (1903). Vorläufige Beschreibung der neuen, durch die Siboga-Expedition gesammelten Echiniden. Tijdschrift der Nederlandsche Dierkundige Vereeniging, 8, 1–16.
Desor, E. (1855–1858). Synopsis des échinides fossiles. Reinwald, Paris.
Donoghue, P. C. J., & Benton, M. J. (2007). Rocks and clocks: calibrating the tree of life using fossils and molecules. Trends in Ecology & Evolution, 22, 424–431.
Donovan, S. K. (2001). Evolution of Caribbean echinoderms during the Cenozoic: Moving towards a complete picture using all of the fossils. Palaeogeography, Palaeoclimatology, Palaeoecology, 166, 177–192.
Donovan, S. K., & Renema, W. (2015). Eating echinoid spines: Further thoughts on Wilson et al. (2015). Lethaia, 49, 1–2.
Donovan, S. K., Renema, W., & Lewis, D. N. (2010). A new species of Goniocidaris Desor (Echinoidea, Cidaroida). from the middle Miocene of Java. Alcheringa, 34, 87–95.
Donovan, S. K., Renema, W., Pinnington, C. A., & Veltkamp, C. J. (2012). Significance of diadematid echinoid ossicles in micropalaeontological samples, Miocene-Pliocene of Indonesia. Alcheringa, 36, 99–105.
Durham, J. W. (1955). Classification of clypeasteroid echinoids. University of California Publications in Geological Sciences, 31, 73–198.
Ellison, A. M., Farnsworth, E. J., & Merkt, R. E. (1999). Origins of mangrove ecosystems and the mangrove biodiversity anomaly. Global Ecology and Biogeography, 8, 95–115.
Foote, M. (2001). Inferring temporal patterns of preservation, origination, and extinction from taxonomic survivorship analysis. Paleobiology, 27, 602–630.
Fritsch, K. V. (1877). Die Echiniden der Nummuliten-Bildungen von Borneo. Palaeontographica, Supplement, 3(1), 85–92.
Gerth, H. (1922). Echinodermata (von Java). Geologische-Reichsmuseum, 4, 497–520.
Gerth, H. (1927). Über einige Pliozän-Quartäre Echiniden von Timor. Paläontoogie von Timor, 15, 181–184.
Ghiold, J. (2013). Species distributions of Irregular echinoids. Biological Oceanography, 6, 79–162.
Ghiold, J., & Hoffman, A. (1986). Biogeography and biogeographic history of clypeasteroid echinoids. Journal of Biogeography, 13, 183–206.
Greenstein, B. J. (1991). An integrated study of echinoid taphonomy: predictions for the fossil record of four echinoid families. Palaios, 6, 519–540.
Greenstein, B. J. (1993). Is the fossil record of regular echinoids really so poor? A comparison of living and subfossil assemblages. Palaios, 8, 587–601.
Haile, N. S. (1962). The geology and mineral resources of the Suai-Baram area, North Sarawak. Geological Survey Department British Territories in Borneo, 13, 141–150.
Harzhauser, M., Kroh, A., Mandic, O., Piller, W. E., Göhlich, U., Reuter, M., et al. (2007). Biogeographic responses to geodynamics: A key study all around the Oligo–Miocene Tethyan Seaway. Zoologischer Anzeiger, 246, 241–256.
Harzhauser, M., Mandic, O., Piller, W. E., Reuter, M., & Kroh, A. (2008). Tracing back the origin of the Indo-Pacific mollusc fauna: Basal Tridacninae from the Oligocene and Miocene of the Sultanate of Oman. Palaeontology, 51, 199–213.
Harzhauser, M., Piller, W. E., & Steininger, F. F. (2002). Circum-Mediterranean Oligo–Miocene biogeographic evolution: The gastropods’ point of view. Palaeogeography, Palaeoclimatology, Palaeoecology, 183, 103–133.
Hedges, S. B., Parker, P. H., Sibley, C. G., & Kumar, S. (1996). Continental breakup and the ordinal diversification of birds and mammals. Nature, 381, 226–229.
Hopkins, T. S. (1988). A review of the distribution and proposed morphological groupings of extant species of the genus Clypeaster in the Caribbean Sea and Gulf of Mexico. In R. D. Burke, P. V. Mladenov, P. Lambert, & R. D. Parsley (Eds.), Echinoderm biology (pp. 337–345). Rotterdam: Balkema Press.
Hughes, T. P. (1994). Catastrophes, phase shifts, and large-scale degradation of a Caribbean coral reef. Science, 265, 1547–1551.
Hutchison, C. S. (2005). Sarawak, Brunei and Sabah Geology of North-West Borneo. Amsterdam: Elsevier Science.
Jackson, J. B. C., & Erwin, D. H. (2006). What can we learn about ecology and evolution from the fossil record? Trends in Ecology & Evolution, 21, 322–328.
Jackson, J. B. C., & Johnson, K. G. (2001). Measuring past biodiversity. Science, 293, 2401–2404.
Jeannet, A. (1935). Genres et sous-genres nouveaux d’echinides sculptes du tertiaire des iles de la Sonde. Eclogae Geologicae Helvetiae, 28, 558–559.
Jeannet, A., & Martin, K. (1937). Ueber neozoische Echinoidea aus dem niederlaendisch-indischen Archipel. Leidsche Geologische Mededeelingen, 8, 215–308.
Johnson, K. G., Hasibuan, F., Müller, W., & Todd, J. A. (2015). Biotic and environmental origins of the Southeast Asian marine biodiversity hotspot: The Throughflow Project. Palaios, 30, 1–6.
Kay, E. A. (1996). Origin and evolutionary radiation of the Mollusca. In J. D. Taylor (Ed.), Origin and evolutionary radiation of the Mollusca (pp. 211–220). New York: Oxford University Press.
Keith, S. A., Baird, A. H., Hughes, T. P., Madin, J. S., Madin, J. S., & Connolly, S. R. (2013). Faunal breaks and species composition of Indo-Pacific corals: the role of plate tectonics, environment and habitat distribution. Proceedings of the Royal Society B: Biological Sciences, 280, 20130818.
Kidwell, S. M., & Baumiller, T. (1990). Experimental disintegration of regular echinoids: roles of temperature, oxygen and decay thresholds. Paleobiology, 16, 247–271.
Kier, P. M. (1964). Fossil echinoids from the Marshall Islands. Professional Paper: United States Geological Survey, 260, 1121–1126.
Kier, P. M. (1974). Evolutionary trends and their functional significance in the post-Paleozoic echinoids. Memoir, Paleontological Society, 5, 1–95.
Kier, P. M. (1977). The poor fossil record of the regular echinoid. Paleobiology, 3, 168–174.
Kroh, A. (2007). Climate changes in the Early to Middle Miocene of the Central Paratethys and the origin of its echinoderm fauna. Palaeogeography, Palaeoclimatology, Palaeoecology, 253, 169–207.
Kroh, A. & Mooi, R. (2017). World Echinoidea Database. www.marinespecies.org.
Kroh, A., & Nebelsick, J. H. (2010). Echinoderms and Oligo–Miocene carbonate system: potential application in sedimentology and environmental reconstruction. International Association of Sedimentologists. Special Publication, 42, 201–222.
Kroh, A., & Smith, A. B. (2010). The phylogeny and classification of post-Palaeozoic echinoids. Journal of Systematic Palaeontology, 8, 147–212.
Ladd, H. S., & Hoffmeister, J. E. (1945). Geology of Lau, Fiji. B.P. Bishop Museum Bulletin, 181, 1–399.
Lamarck, J. B. P. M. D. (1801). Système des animaux sans vertèbres, ou Tableau général des classes, des ordres et des genres des ces animaux. Paris: Deterville.
Lambert, J. (1912). Description des échinides des terrains néogènes du bassin Rhône. fasc 2. Mémoires de la Société Paléontologique Suisse, 38, 51–103.
Latreille, P. A. (1825). Familles naturelles du régne animal. Paris: Baillière.
Leske, N. G. (1778). Jacobi Theodori Klein naturalis dispositio echinodermatum, edita et descriptionibus novisque inventis et synonomis auctorem aucta. Addimenta ad I. T. Klein naturalem dispositionem Echinodermatum. G. E. Beer, Leipzig.
Liechti, P. (1960). The geology of Sarawak, Brunei and the western part of North Borneo: compiled from work of the Royal Dutch Shell Group of companies in the British Territories in Borneo and from various published accounts. Geological Survey Department British Territories in Boreno Bulletin, 3, 1–80.
Lindley, I. D. (2001). Tertiary echinoids from Papua New Guinea. Proceedings of the Linnean Society of New South Wales, 123, 119–139.
Lindley, I. D. (2003). Echinoids of the Kairuku Formation (Lower Pliocene), Yule Island, Papua New Guinea: Clypeasteroida. Proceedings of the Linnean Society of New South Wales, 124, 125–136.
Lindley, I. D. (2004). Some living and fossil echinoderms from the Bismarck Archipelago, Papua New Guinea, and two new echinoid species. Proceedings of the Linnean Society of New South Wales, 125, 115–139.
Linnaeus, C. (1758). Systema Naturæ per Regna tria Naturæ, secundum Classes, Ordines, Genera, Species, cum characteribus, differentiis, synonymis, locis. Edito Decima, Reformata. Tomus I. Impensis Direct. Laurentii Salvii, Holmiæ.
Martin, K. (1879). Die Tertiärschichten auf Java, nach den Entdeckungen von Fr. Junghuhn. Leiden: E. J. Brill.
Martin, K. (1880). Revision of the fossil Echini from the Tertiary strata of Java. Notes from the Leyden Museum, 2, 73–84.
Martin, J. M., & Braga, J. C. (1993). Eocene to Pliocene coralline algae in the Queensland Plateau (northeastern Australia). Proceedings of the Ocean Drilling Program. Scientific Results, 133, 67–74.
McGowan, A. J., & Smith, A. B. (2008). Are global Phanerozoic marine diversity curves truly global? A study of the relationship between regional rock records and global Phanerozoic marine diversity. Paleobiology, 34, 80–103.
McKinney, M. L., McNamara, K. J., Carter, B. D., & Donovan, S. K. (1992). Evolution of Paleogene echinoids: a global and regional view. In D. R. Prothero & W. A. Berggren (Eds.), Eocene–oligocene climatic and biotic evolution (pp. 349–367). New Jersey: Princeton University Press.
McKinney, M. L., & Oyen, C. W. (1989). Causation and nonrandomness in biological and geological time series: temperature as a proximal control of extinction and diversity. Palaios, 4, 3–15.
McKinney, M. L., Oyen, C. W., Carter, B. D., & Fuellhart, K. (2014). Geographic shape variation in an Oligocene cassiduloid echinoid (Rhyncholampas gouldii). of the southeastern U.S. Southeastern Geology, 50, 215–219.
McMonagle, L. B., Lunt, P., Wilson, M. E. J., Johnson, K. G., Manning, C., & Young, J. R. (2011). A re-assessment of age dating of fossiliferous limestones in eastern Sabah, Borneo: Implications for understanding the origins of the Indo-Pacific marine biodiversity hotspot. Palaeogeography, Palaeoclimatology, Palaeoecology, 305, 28–42.
Michelin, H. (1855). Notice sur un genre nouveau à établir dans la famille des spatangoïdes sous le nom de Mœra. Revue et magasin de zoologie, ser, 2(7), 245–248.
Mihaljević, M., Jerjen, I., & Smith, A. B. (2011). The test architecture of Clypeaster (Echinoidea, Clypeasteroida). and its phylogenetic significance. Zootaxa, 2983, 21–38.
Mihaljević, M., Korpanty, C., Renema, W., Welsh, K., & Pandolfi, J. M. (2017). Identifying patterns and drivers of coral diversity in the Central Indo-Pacific marine biodiversity hotspot. Paleobiology, 43, 343–364.
Mooi, R. (1989). Living and fossil genera of the Clypeasteroida (Echinoidea, Echinodermata): an illustrated key and annotated checklist. Smithsonian Contributions to Zoology, 488, 1–51.
Mooi, R. (2001). Not all written in stone: interdisciplinary syntheses in echinoderm paleontology. Canadian Journal of Zoology, 7, 1209–1231.
Morley, R. J. (2000). Origin and evolution of tropical rain forests. Chichester: John Wiley & Sons Inc.
Mortensen, T. (1948). A monograph of the Echinoidea. Volume 4, part 2, Clypeastroida. Copenhagen: C.A. Reitzel.
Patterson, C. (1981). Significance of Fossils in Determining Evolutionary Relationships. Annual Review of Ecology and Systematics, 12, 195–223.
Poddubiuk, R. H. (1985). Evolution and adaptation in some Caribbean Oligo–Miocene Clypeasters. In B. F. Keegan & B. D. S. O’Connor (Eds.), Echinodermata: Proceedings of the 5th international echinoderm conference, Galway (pp. 75–80). Rotterdam: Balkema.
Pomel, A. N. (1887). Classification méthodique et Genera des Echinides vivants et fossiles. Alger: Adolphe Jourdan.
R Development Core Team, A. (2017). R: A language and environment for statistical computing. Vienna: R Foundation for Statistical Comput- ing.
Renema, W., Bellwood, D. R., Braga, J. C., Bromfield, K., Hall, R., Johnson, K. G., et al. (2008). Hopping hotspots: Global shifts in marine biodiversity. Science, 321, 654–657.
Roman, J. (1952). Sur Les Structures Internes des Clypéastres. Bulletin de la Société Géologique de France, Série, 6(2), 403–416.
Rosen, B. R., & Smith, A. B. (1988). Tectonics from fossils? Analysis of reef-coral and sea-urchin distributions from late Cretaceous to Recent, using a new method. Geological Society, London, Special Publications, 37, 275–306.
Rowe, F., & Gates, J. (1995). Echinodermata. In A. Wells (Ed.), Zoological Catalogue of Australia (pp. 1–510). CSIRO Australia: Melbourne.
Sadler, T., Kroh, A., & Gallagher, S. J. (2016). A review of the taxonomy and systematics of the echinoid genus Monostychia Laube, 1869. Alcheringa, 40, 1–13.
Sammarco, P. W. (1982). Echinoid grazing as a structuring force in coral communities: Whole reef manipulations. Journal of Experimental Marine Biology and Ecology, 61, 31–55.
Santodomingo, N., Renema, W., & Johnson, K. G. (2016). Understanding the murky history of the Coral Triangle: Miocene corals and reef habitats in East Kalimantan (Indonesia). Coral Reefs, 35, 765–781.
Santodomingo, N., Wallace, C. C., & Johnson, K. G. (2015). Fossils reveal a high diversity of the staghorn coral genera Acropora and Isopora (Scleractinia: Acroporidae). in the Neogene of Indonesia. Zoological Journal of the Linnean Society, 175, 677–763.
Schultz, H. (2006). Sea Urchins: a guide to worldwide shallow water species. Hemdingen: Heike & Peter Schultz Scientific Publications.
Serafy, D. K. (1970). A new species of Clypeaster from the Gulf and Caribbean and a key to the species in the northwestern Atlantic (Echinodermata: Echinoidea). Bulletin of Marine Science, 20, 662–677.
Serafy, D. K. (1971). A new species of Clypeaster (Echinodermata, Echinoidea). from San Felix Island, with a key to the recent species of the eastern Pacific Ocean. Pacific Science, 25, 165–170.
Simmons, M. D., Bidgood, M. D., & Brenac, P. (1999). Microfossil assemblages as proxies for precise palaeoenvironmental determination—an example from Miocene sediments of northwest Borneo. Geological Society, 151, 219–241.
Simpson, C., Kiessling, W., Mewis, H., Baron Szabo, R. C., & Müller, J. (2011). Evolutionary diversification of reef corals: a comparison of the molecular and fossil records. Evolution, 65, 3274–3284.
Smith, A. B. (1981). Implications of lantern morphology for the phylogeny of post-Palaeozoic echinoids. Palaeontology, 24, 779–801.
Smith, A. B. (1984). Echinoid palaeobiology. London: Allen & Unwin.
Smith, A. B., & Benson, R. B. J. (2013). Marine diversity in the geological record and its relationship to surviving bedrock area, lithofacies diversity, and original marine shelf area. Geology, 41, 171–174.
Smith, A. B., Lloyd, G. T., & McGowan, A. J. (2012). Phanerozoic marine diversity: rock record modelling provides an independent test of large-scale trends. Proceedings of the Royal Society B: Biological Sciences, 279, 4489–4495.
Smith, A. B., & McGowan, A. J. (2011). The ties linking rock and fossil records and why they are important for palaeobiodiversity studies. Geological Society, London, Special Publications, 358, 1–7.
Stefanini, G. (1924). Relations between American and European Tertiary echinoid faunas. Geological Society of America Bulletin, 35, 827–846.
Vredenburg, E. (1919). Results of a revision of some portions of Dr. Noetling’s second monograph on the Tertiary fauna of Burma. Records of the Geological Survey of India, 51, 224–302.
Vredenburg, E. (1922). Oligocene Echinoidea collected by Rao Bahadur S. Sethu Rama Rau in Burma. Records of the Geological Survey of India, 54, 412–415.
Wallace, C. C., & Rosen, B. R. (2006). Diverse staghorn corals (Acropora). in high-latitude Eocene assemblages: Implications for the evolution of modern diversity patterns of reef corals. Proceedings of the Royal Society B: Biological Sciences, 273, 975–982.
Wilford, G. E. (1961). The geology and mineral resources of Brunei and adjacent parts of Sarawak with descriptions of Seria and Miri oilfields. British Borneo Geological Survey, Memoir, 10, 1–319.
Wilson, M. E. J., & Rosen, B. R. (1998). Implications of paucity of corals in the Paleogene of SE Asia: Plate tectonics or centre of origin. In R. Hall & J. D. Holloway (Eds.), Implications of paucity of corals in the Paleogene of SE Asia: Plate tectonics or centre of origin (pp. 165–195). Amsterdam: Backhuys.
Zuschin, M., Harzhauser, M., & Mandic, O. (2011). Disentangling palaeodiversity signals from a biased sedimentary record: An example from the Early to Middle Miocene of Central Paratethys Sea. Geological Society, London, Special Publications, 358, 123–139.
We acknowledge financial contributions from Petroliam Nasional Berhad (Petronas), Pearl Energy, and the University of Queensland Collaboration and Industry Engagement Fund. We also thank the State Planning Unit in Kuching, Malaysia, for allowing us to conduct research in Sarawak. Special thanks for logistical, physical and all other help during the field trip in Sarawak, Malaysia: Kevin Welsh (Brisbane), Willem Renema (Leiden) and John M. Pandolfi (Brisbane). Mihaljević’s research was supported by the Robert Day Postdoctoral Fellowship; thus, immense gratitude goes to Robert Day himself. We are thankful to Jade Vellacott (Brisbane) for technical CT support, to Andreas Kroh (Vienna) and Tony Sadler (Brisbane) for providing insightful feedback on earlier versions of this article, and to Steve Donovan (Leiden) and another anonymous reviewer whose feedback has helped tremendously with the improvement of this manuscript.
Editorial Handling: Christian Klug.
