Diversity and distribution of Miocene–Pliocene sepiids (Cephalopoda) in the Mediterranean area, with new records from Italy and Turkey

Abstract

Two new records of Cenozoic sepiids from the Mediterranean area are described and discussed. While the single, fragmentary specimen from Pliocene (Zanclean) strata in northwestern Italy can only be identified generically as Sepia sp., the Turkish Sepia vandervoorti sp. nov., of late Langhian–earliest Serravallian (Middle Miocene) age, constitutes a new species. The diversity and disparity of Cenozoic sepiids from the Mediterranean area are discussed within palaeobiogeographical and stratigraphical contexts. Current cuttlefish records from the Central Paratethys, the Atlantic coast and the North Sea Basin provide indications of migration patterns of the genus Sepia during the Miocene. A synthesis of published data, complemented by the new records presented here, allows us to reconstruct sepiid distribution in time and space. The highest diversity and morphological disparity are seen during the Middle Miocene; this is followed by a rapid decrease during the Late Miocene and a renewed radiation during the Pliocene.

Introduction

In general, cuttlebones of extinct sepiids related to the genus Sepia Linnaeus 1758 are considered to be rare in the fossil record. In this respect, each new record of fossil representatives constitutes a notable contribution to the evolutionary history and palaeobiogeography of sepiids. During recent years, new records have been described from the Central Paratethys, Australia and the North Sea Basin (Košťák et al. 2016, 2017; Košťák and Jagt 2018), as well as from the Lower Pleistocene of central Italy (Pasini et al. 2014). Extant cuttlefish evolved from a stem lineage of Recent Sepia, which derived from Oligocene archaeosepiids (Košťák et al. 2017). The majority of Oligocene records (archaeosepiids) come from Hungary and Italy (Lőrenthey 1899; Szörényi 1933; Wagner 1938; Fornasiero and Vicariotto 1995), where these forms made their first appearance approximately following the extinction of another group of extinct sepiids, the belosaepiids. Consequently, the origin of extant cuttlefish probably is linked to the Paratethys and Mediterranean areas. The highest diversity, as well as the greatest morphological disparity amongst fossil sepiids, is seen during the Middle Miocene (Košťák et al. 2016). It is notable that the highest sepiid diversity worldwide is seen in the Recent (Reid et al. 2005); the same holds true for a very high morphological disparity of cuttlebones (Neige 2003a, b, 2006; Neige and von Boletzky 1997).

Historically, ancestral sepiids from the Mediterranean area were studied by several scholars during the nineteenth century (e.g. Gastaldi 1866; Bellardi 1872; Ponzi 1876; Tiberi 1880; Issel 1889; Foresti 1890; Parona 1892). Later work includes that by Sacco (1904), Lipparini (1934), Álvarez Ramis and Meléndez (1966), Hewitt and Pedley (1978), Abad et al. (1981), Cavallo and Repetto (1992) and others. The most recent papers are those by Gaudant et al. (2007), Okan and Hoşgör (2009) and Pasini et al. (2014). On the basis of published data and new records from Italy and Turkey, we here summarise the stratigraphical distribution and palaeobiogeographical aspects of extinct sepiids from the Mediterranean area.

Geological, geographical and stratigraphical setting

Turkey: marine strata in the Mut Basin have been subdivided into five units, namely the Mut, Köselerli, Dağpazarı, Tirtar and Ballı formations (Atabey et al. 2000). The Mut and Köselerli formations are the oldest units in this sequence and frequently demonstrate lateral interfingering; they have been dated as late Burdigalian and Langhian (Mut Formation) to earliest Serravallian (Köselerli Formation). The Mut Formation comprises mainly limestones, while the Köselerli Formation consists of clayey limestone and marl. The new sepiid was collected from grey marls of the latter formation and can be dated as late Langhian–earliest Serravallian. This age assignment of the marls is confirmed by the abundant material of the pteropod Vaginella austriaca Kittl, 1886 and the gastropod Sulcogladius collegnoi (Bellardi and Michelotti, 1841) var. pluridenticulata Sacco, 1893, which was originally described from the Turin hills in Italy as characteristic of the “Helvetian”; this currently corresponds to the Langhian/Serravallian.

Italy: Montaldo Roero (Trinità, province of Cuneo, Italy; co-ordinates: 44°45′44″N–7°56′16″E) from Lower Pliocene (Zanclean) strata.

Materials and methods

The Turkish specimen (part and counterpart, in matrix) was discovered and collected (May 1989) near the village of Palantepe (near Mut, Mersin Province, southern Turkey) by Mr. Jaap van der Voort (Ostercappeln, Germany) from grey marls of the Köselerli Formation, which is dated as late Langhian–earliest Serravallian. The fragmentary specimen from northwestern Italy (Montaldo Roero, province of Cuneo) originates from Lower Pliocene (Zanclean) strata and is completely free of matrix.

Specimens were measured and studied using the computer graphic programs CorelDRAW X5 and CorelPhotoPaint X5. Photographs were taken with a digital camera (Canon EOS D600D). The terminology used herein is based mainly on the preserved dorsal parts of the cuttlebone (i.e. more specifically, the shape of the dorsal shield, the presence of median and lateral keels, the character of the apical part [“rostrum”], the shape of septal suture lines and the arrangement of granules on the dorsal shield) follows previous systematic treatments by Bizikov (2008), Košťák et al. (2016) and Košťák and Jagt (2018). Schematic general shapes of cuttlebones are shown in Fig. 1.

Fig. 1

(from Košťák et al. 2016)

General cuttlebone shape (dorsal view; not to scale); a prolonged oval; b oval; c oval-rhomboid; d rhomboid; e oval-rhomboid to elliptical with posterior wings expanded

Systematic palaeontology

Subclass Coleoidea Bather, 1888

Order Sepiida Gray, 1849

Family Sepiidae Keferstein, 1866

Genus Sepia Linnaeus, 1758

Sepia vandervoorti sp. nov.

Figures 2, 3a–g

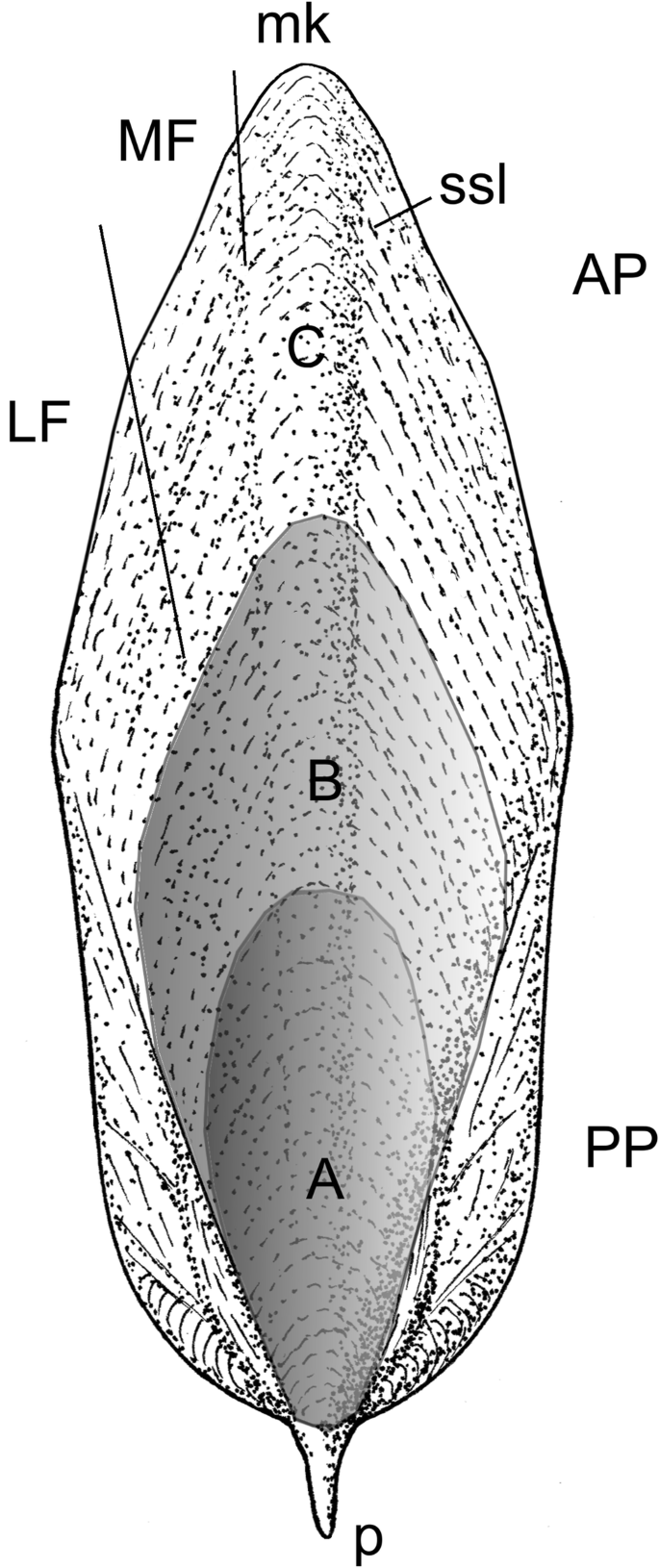

Fig. 2

Reconstruction of the cuttlebone of S. vandervoorti sp. nov., as based on morphological features preserved on part and counterpart of the holotype (RGM.1351051.a, RGM.1351051.b); p prong (rostrum-like structure), AP anterior part, PP posterior part (including wings, outer and inner cones), LF lateral field, MF median field, mk median keel, ssl septal suture lines. a Early ontogenetic stage with oval shape of dorsal shield. b Juvenile to adolescent ontogenetic stage with partially rhomboid shape of dorsal shield. c Adult ontogenetic stage with rhomboid shape of dorsal shield

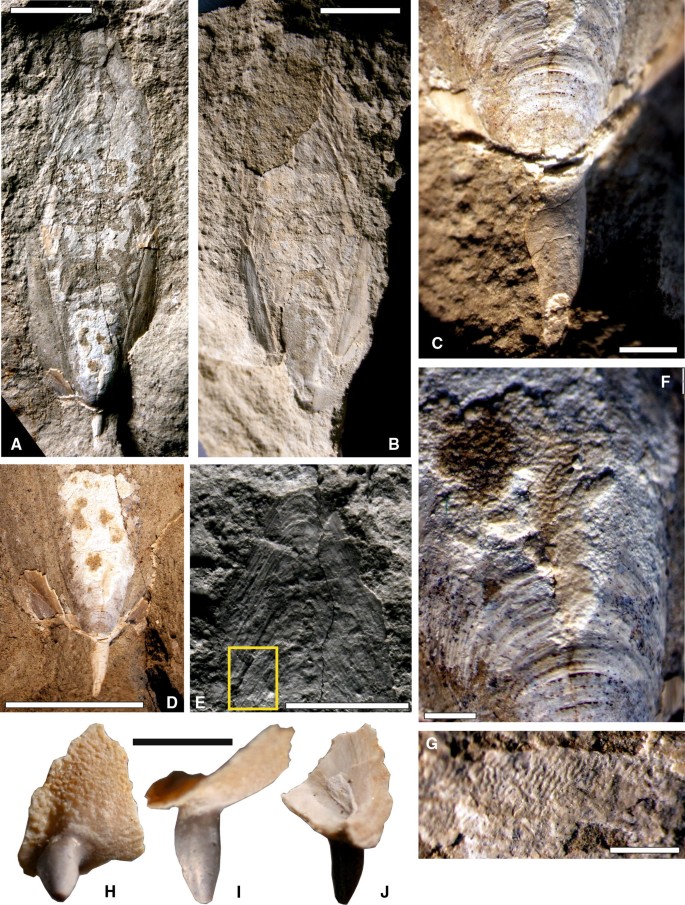

Fig. 3

Sepia vandervoorti sp. nov., Middle Miocene (upper Langhian–lowermost Serravallian). a RGM.1351051.a (part), with partially preserved dorsal shield and its imprints, documenting a narrow median keel. b RGM.1351051.b (counterpart). Scale bars equal 10 mm. c Detail of the prong and early ontogenetic chambers of the phragmocone. Scale bar equals 1 mm. d Apical part of the cuttlebone with shell remnants of the outer and inner cones. Scale bar equals 10 mm. e Detail of typically rhomboid characters of the anterior part of the cuttlebone. The square indicates where imprints of pillar structure are preserved. Scale bar equals 10 mm. f Remains of the dorsal shield with fine granulation. Scale bar equals 1 mm. g Detail of imprints of pillar structure (intracameral walls). h–kSepia sp., Lower Pliocene (Zanclean), northwestern Italy. i Connection of finely granulated shield with smooth prong. j Lateral view of the knife-like prong. k Ventrolateral view of phragmocone. Scale bar equals 10 mm

Diagnosis Smaller-sized sepiid with rhomboid cuttlebone possessing fine granulation, relatively wider outer cone, oval-rounded inner cone with fork and well-developed prong. Median and lateral fields without ornamentation.

Types The holotype, and sole specimen known to date, is RGM.1351051.a (part) and RGM.1351051.b (counterpart), in the collections of Cenozoic Mollusca at Naturalis Biodiversity Center (Leiden, the Netherlands; formerly Rijksmuseum van Geologie en Mineralogie).

Derivatio nominis In honour of Mr. Jaap van der Voort (Ostercappeln-Venne, Germany), who found the specimen in May 1989.

Locus typicus Outcrop on the eastern side of the road (D-715) from Karaman to Mersin, between the northern margin of the village of Palantepe with the mosque and the village itself (co-ordinates: 36°36′53.50″N–33°26′28.60″E). This locality is within the Mut Basin, which comprises strata of Miocene age (see below).

Stratum typicum Köselerli Formation (late Langhian–earliest Serravallian).

Description: Complete specimen with an oval to rather rhomboid cuttlebone (Figs. 2, 3a, b) with partially preserved shell (Fig. 3a); a smaller-sized member of Sepia (L = 51 mm), the widest part (~ 18 mm) being situated approximately in the middle part. Dorsal surface with slightly developed median keel, widening anteriorly under a low angle (7°). Where preserved, the cuttlebone surface (shell remnants preserved in the posterior part only) shows regularly arranged fine granules (Fig. 3f). No prominent granules are visible.

Lateral fields (diverging at an angle less than 38°) are well developed, lacking ornamentation or ‘false’ lateral keels. Lateral fields only slightly separate the median field from the flattened lateral sides. Anterior margins slightly splayed. Septal suture lines parallel and rhomboidal (Fig. 3e) in the anterior part, semi-circular–oval in early ontogenetic stages showing significant changes in shape during ontogeny.

Originally chitinous rims are absent. Calcareous rims are only slightly indicated. Well-calcified remains of inner and outer cones are quite well preserved (Fig. 3d). Outer cone relatively wide, possessing fine striation. Pillar structure imprints (intracameral walls) are seen only in one place of the cuttlebone (Fig. 3e–g), revealing the typical arrangement of the genus Sepia. Morphological features of the ventral surface unknown.

Prong well developed (Fig. 3c, d), subcircular to oval in cross section, situated centrally. The length is 3.2 mm and width 1.3 mm. The entire surface is smooth.

Discussion and remarks The new species differs from the majority of Miocene taxa that have been recorded from the Mediterranean and Paratethys areas by its oval-rhomboid to rather rhomboid (i.e. slightly laterally compressed) shape of the dorsal shield. Such a morphology is rare amongst sepiids. Overall, there are only few records from the Miocene of Sardinia (S. caralitana Parona, 1892) and a specifically indeterminate specimen, Sepia sp., from Turkey (Okan and Hoşgör 2009) that show this morphology. These taxa are similar in that they also have a rhomboid cuttlebone, but this is significantly shorter and wider than the one in S. vandervoorti sp. nov. In addition, the Middle Miocene S. caralitana, from Fangario (Cagliari, Sardinia), shows a much wider outer cone and even lateral fields are well separated from the median field by the lateral keel. In retaining rhomboid growth lines from the earliest stages, the ontogeny of S. caralitana documents isometric growth of the dorsal shield. The Early Miocene Sepia sp. from the Yukaribedvan section (Diyarbakir, Turkey) is incompletely preserved. However, this represents another taxon with a different shape of growth lines. A Pliocene record, with more or less similar characteristics (mostly shape) was described from northern Italy as Sepia sp. by Cavallo and Repetto (1992, p. 235, fig. 710). This individual is damaged, slightly deformed and does not preserve important morphological features.

The overall shape of the cuttlebone reflects two stages of ontogenetic development. The oval shape is well recognised up to approximately fifty per cent of the overall length of the cuttlebone (Fig. 2). From this point onwards, the cuttlebone becomes increasingly more rhomboid and later ontogenetic stages reveal a strictly rhomboid character (Figs. 2, 3e).

Sepia sp.

Figures 3h–k, 4

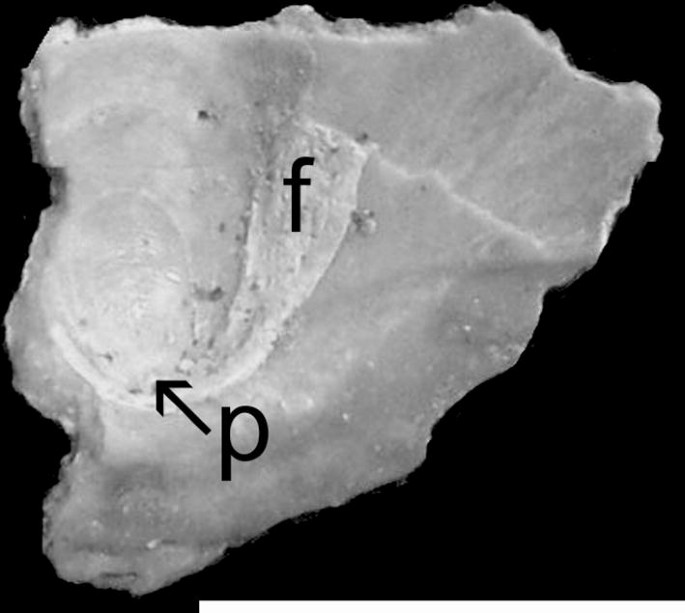

Fig. 4

The earliest/embryonic chambers with protoconch (p), outer and inner cones and remains of the fork (f) of RGM.1351052. No pillar structures are seen in the first chambers. Scale bar equals 10 mm

Material A single fragmentary specimen, RGM.1351052, collected by Mr. Jaap van der Voort.

Description Fragment, 12.2 mm in greatest preserved length, of the apical portion of a cuttlebone, consisting of the granulated remains of the dorsal shield and a completely preserved prong. The granulation is fine, regularly distributed over the shell surface but effacing where the shell connects to the prong. Inner part of the shell reveals the protoconch, three chambers, the inner cone and remains of the fork (Fig. 4). The inner cone is oval-rounded with well-developed fork limbs. The fork is narrow at the protoconch area and diverges significantly anteriorly (Fig. 4); however, only the posteriormost part is preserved. No imprints of pillar structure (intracameral walls) are seen in the chambers. Chambers are typically oval in ventro-dorsal view in the earliest ontogenetic stages, with width increasing during growth.

The prong measures 5.5 mm in length and has a maximum width of 2.8 mm; it is medially robust, asymmetrically lanceolate (i.e. knife-like) in lateral aspect and conical (20°) in dorso-ventral view. The prong is straight on the dorsal side, the ventral side revealing a clear curvature formed by a knife-like edge; it possesses a well-developed, sharp carinal margin in the ventral part. The visible extension in the lateral view is situated at approximately one-third of the posterior part of the prong. The prong is situated centrally without inclination and is oval-rounded in cross section. The surface of the prong is not striated. The ventrolateral planes/depressions are well developed towards the apex.

Discussion and remarks Apical portions of cuttlebone represent the most commonly recorded fragments of ancient sepiid shells (and of their ancestors, i.e. belosaepiids and other groups). This part is heavily calcified in both extinct and extant Sepiidae, and thus has a high potential of becoming fossilised. However, the systematic value of this portion of the cuttlebone is rather limited. Only few taxa that retain typical morphological features of the apical portion, such as Sepia sanctacrucensis Bałuk, 1977 can be identified at the species level (Košťák et al. 2016). The variability and systematics of the rostrum-like structure, i.e. the prong, in both fossil and extant sepiids have never been studied in detail, which is why the apicalmost part of the cuttlebone cannot be used for specific placement of the present specimen. The fine granulation of the shield is a quite common morphological feature amongst representatives of the genus Sepia. The inner cone feature and even the presence of the fork/fork limbs and its character may determine this fragment within the subgenus S. (Sepia), as the majority of other subgenera have a different inner cone/fork character.

Distribution and diversity in time and space

Early Miocene

Early Miocene sepiids from the Mediterranean area are best known from northern Italy, with records of Sepia gastaldii Bellardi, 1872, S. cf. rugulosa var. miocebana Sacco, 1904, S. michelottii Gastaldi, 1866, and from Malta, with ?Sepia sp. (sensu Hewitt & Pedley 1978). In addition, there is a single record from Turkey, Sepia sp. (sensu Okan & Hoşgör 2009). The Lower Miocene of the Mediterranean area was characterised by an open connection with the Atlantic Ocean and the North Sea in the west and northwest, as well as an easterly corridor to the Tethyan Ocean via the Mesopotamian Basin (Fig. 5). These relatively wide straits may have functioned as migration corridors for cuttlefish. Indeed, cuttlefish did migrate eastwards via this easterly pathway to reach India at that time (i.e. Early Miocene, Burdigalian; see Mohan and Chatterji 1956). According to Košťák et al. (2017), this migratory direction had previously been used by archaeosepiids which were probably the direct ancestors of the stem lineage of Sepia. The northerly (towards the North Sea) and westerly (towards the Atlantic coasts) pathways may also have been used during the late Early Miocene (and before, during the Eocene by belosaepiids). However, in view of the fact that we have no Early Miocene sepiid records from these areas, this is merely speculative, although there is some support from the Middle Miocene (late Langhian) Sepia fabianschwankei Košťák and Jagt, 2018 from northern Germany (North Sea Basin). Migration in a northerly direction appears unlikely during the Middle Miocene, because the connective corridor between the North Sea Basin and the Mediterranean had already been closed (Fig. 5). Consequently, this migration may have occurred already during the Early Miocene (Košťák and Jagt 2018). It is of note that the eastern Paratethys is devoid of any sepiid record. This has not been explained to date; we here suggest that salinity may have played a key role, principally from the late Middle Miocene onwards. However, the absence of cuttlefish during the Early Miocene remains a mystery; sampling bias cannot be the sole reason for this pattern.

Fig. 5

Palaeobiogeography (modified from Košťák et al. 2016) with migration routes (arrows). Palaeogeographical distribution of Miocene–Pliocene cuttlefishes (maps after Popov et al. 2004; slightly modified). AB Akchagilian Basin, AP Apulia, CP Carpathians, EMB Eastern Mediterranean Basin, KB Kujalnician Basin, MC Massif Central, MOE Moesian Land, PB Pannonian Basin, WMB Western Mediterranean Basin. Numbers within the circles refer to the following taxa: 1, Sepia gastaldii Bellardi, 1872; 2, Sepia cf. rugulosa var. miocebana Sacco, 1904; 3, Sepia michelottii Gastaldi, 1866; 4, Sepia caralitana Parona, 1892; 5, Sepia saccoi Lipparini, 1934; 6, Sepia mikuzi Košťák, Schlögl, Hudáčková, Kroh, Halásova, Gašparič, Hyžný and Wanzenböck, 2016 and Sepia aff. mikuzi; 7, Sepia juliebarborae Košťák, Schlögl, Hudáčková, Kroh, Halásova, Gašparič, Hyžný and Wanzenböck, 2016; 8, Sepia cf. harmati Szörényi, 1933; 9, Sepia melendezi Mayoral & Muñiz, 1994; 10, Sepia (Parasepia) orbignyana bética Álvarez Ramis and Meléndez, 1966; 11. Sepia granosa Bellardi, 1872; 12, Sepia verrucosa Bellardi, 1872; 13, Sepia stricta Bellardi, 1872; 14, Sepia complanata Bellardi, 1872; 15, Sepia bertii Foresti, 1890; 16, Sepia fabianschwankei Košťák and Jagt, 2018; 17, Sepia vandervoorti sp. nov.

Middle Miocene

The Middle Miocene of the Mediterranean area is characterised by a high cuttlefish diversity, the greatest morphological disparity (sensu Neige 2003a) in sepiid history (Fig. 5) and the widest geographical distribution in the fossil record known to date. About nine species have been recorded from central and northern parts of the Mediterranean, namely Sepia lovisatoi Parona, 1892, S. sepulta Michelotti in Bellardi, 1872; Sepia sp. (sensu Hewitt and Pedley 1978), S. caralitana Parona, 1892, ?S. lovisatoi Parona, 1892, S. cf. harmati Szörényi, 1933 (sensu Hewitt and Pedley 1978), ?S. verrucosa Bellardi, 1872 (sensu Sacco 1904) and Sepia saccoi Lipparini, 1934. Sepia vandervoorti sp. nov. significantly extends the palaeobiogeographical record of the Middle Miocene cuttlefish to the eastern parts of the Mediterranean. A diverse sepiid fauna has recently also been recorded from the Central Paratethys and those species show some affinities with the Mediterranean taxa (Košťák et al. 2016, discussion therein). The connection between the Central Paratethys and the Mediterranean area is obvious. Species from the Central Paratethys reveal signs of allopatric speciation. At the time, the westerly migration corridor to the Atlantic coast remained open and the record of S. vindobonensis von Schloenbach, 1869 from Tortonian strata at Saubriges (Biscay Basin, France; see Roger 1947) provides evidence of this. Therefore, we suggest the existence of this Miocene species in the Mediterranean as well in the Atlantic and the Central Paratethys as shown in Fig. 6. The easterly migration corridor was open as well; a new record of Sepia sp. from Australia (Košťák et al. 2017) may document a connection via the shelves of the Tethyan Ocean.

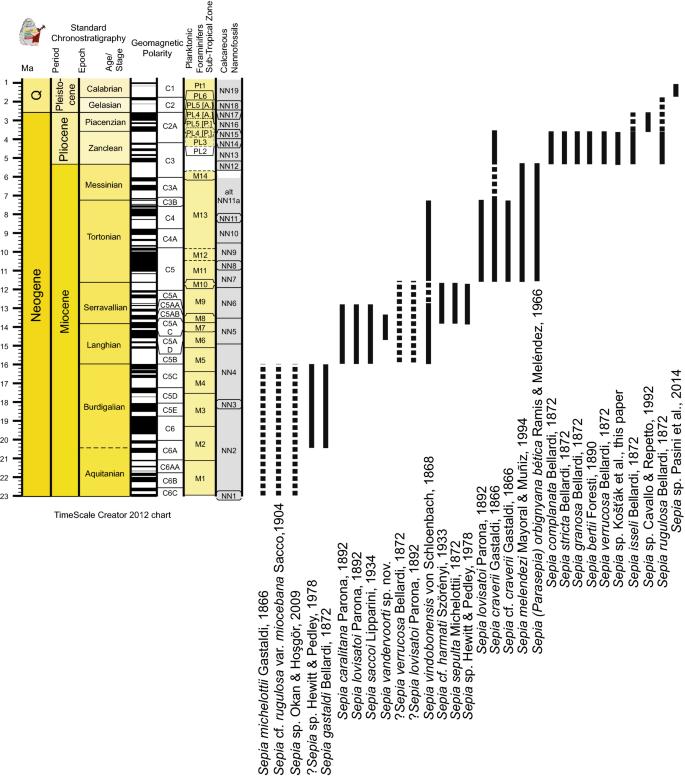

Fig. 6

Stratigraphical distribution of Mediterranean sepiid taxa in the Miocene–Pliocene interval. Sepia vindobonensis and S. melendezi are also included, as the first one is known from Central Paratethys and Atlantic coast with only possible migration via the Mediterranean and the second one is situated on the northern coast of the Strait of Gibraltar

Late Miocene–Pliocene

The Late Miocene is characterised by a significant decrease in sepiid diversity; only three species are known from this time interval. These are the Tortonian Sepia craverii Gastaldi, 1866 and S. lovisatoi and the late Tortonian/Messinian S. (Parasepia) orbignyana bética Álvarez Ramis and Meléndez 1966. This may have been connected to the closure of the eastern corridor, the isolation of the Central Paratethys and even by closure of the Strait of Gibraltar which ultimately resulted in the Messinian Salinity Crisis (MSC) during the late Messinian (Krijgsman et al. 1996). Geographically, these rare records originate from Sardinia and southern Spain. There is, however, another sepiid record from southern Spain, namely Sepia melendezi Mayoral and Muñiz, 1994, from the upper Tortonian/Messinian of Lepe, Huelva; palaeobiogeographically speaking, this belongs to the Atlantic coast, albeit very close to or at the boundary with the Mediterranean s. str.. Only a single species, S. craverii, survived the MSC into the Early Pliocene (Fig. 6). As far as we know, there are no records of Late Miocene sepiids from the eastern parts of the Mediterranean area.

Subsequent to the MSC, sepiids experienced a new radiation in the Mediterranean area, their diversity reaching comparably high values to Middle Miocene occurrences. Nine species are known, predominantly from the northern Mediterranean basins of Italy (S. rugulosa Bellardi, 1872, S. verrucosa, S. isseli Bellardi, 1872, S. bertii Foresti, 1890, S. craverii Gastaldi, 1866, S. granosa Bellardi, 1872, S. stricta Bellardi, 1872, S. complanata Bellardi, 1872 and Sepia sp. (sensu Cavallo and Repetto 1992) and a single record from the Western Mediterranean Basin (Barcelona area, Catalonia; see Abad et al. 1981). Specifically, the very high diversity in the northern Mediterranean may be indicative of a radiation centre; to date, there are no records from the central and eastern Mediterranean. Palaeobiogeographically, the connection with the Atlantic coast and the eastern strait to the Red Sea were both open at the time. A synthesis of the stratigraphical distribution is shown in Fig. 6.

Post–Pliocene

In the literature, there are sporadic records of Pleistocene to Holocene material, e.g. Sepia sp. from the Lower Pleistocene of the Tyrrhenian Basin (Volterra, Pisa area, Italy; see Pasini et al. 2014), Sepia sp. from the uppermost Pleistocene/Holocene of the Malaga area (Spain; see Jordá et al. 2010) and others. These records all refer to rather fragmentarily preserved material that has not been assessed systematically. For this reason, any documentation of Pleistocene/Holocene sepiid diversity is virtually impossible. In all, extant faunas comprise three species of the genus in the Mediterranean Sea and along the coasts of the Atlantic Ocean (Reid et al. 2005).

Conclusions

New sepiid records from Middle Miocene and Pliocene strata in the Mediterranean clearly document a high cuttlefish diversity in the area, which is, therefore, considered to be a radiation centre of ancient Sepia. The new record of Sepia vandervoorti sp. nov., from the upper Langhian–lowermost Serravallian (Middle Miocene) of Turkey extends the palaeobiogeographical distribution in the Middle Miocene to the Eastern Mediterranean area.

We have summarised all stratigraphical data of known sepiid taxa for the Mediterranean and based on this we have discussed diversity changes in the Miocene–Pliocene interval. The highest diversity has been observed in the Middle Miocene and Lower Pliocene, while the lowest is probably linked to the Upper Miocene crisis. Surprisingly, at least one Mediterranean species (S. craverii) survived into the Early Pliocene in this area.

The palaeobiogeographical distribution of sepiids along the European shelves reveals possible migration patterns, documenting connections to the North Sea and Atlantic coast in the west and to the Tethys in the east.
